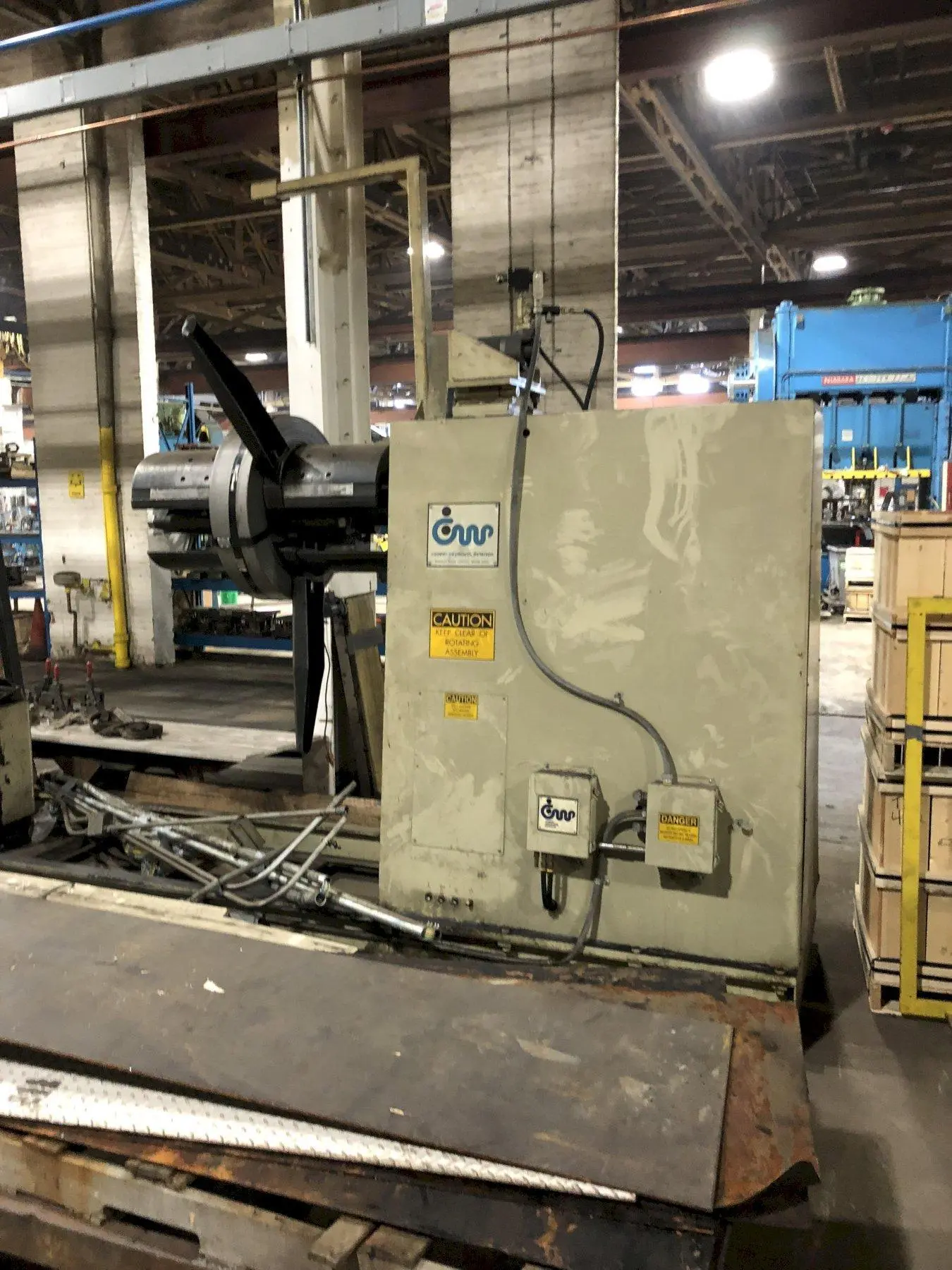

USED CWP SMX36H6 / 36-64PDS / 6R36

CWP Complete Coil Feed Line 20,000 Lbs. x 36" Wide x .250"

Stock Thickness Capacity:
.250" x 36" Wide
.312" x 28" Wide
.375" x 12" Wide

Specifications / Equipped With:
CWP Servo Roll Feed Model No. SMX36H6
Full width upper and lower feed rolls
Piloting upper feed roll
Stock width edge guides
Anti back up rolls
Cabinet base mounted with adjustable pass line
AC Servo drive and controls

CWP Threading Tables Model 36PTT-22
Bomb Bay Door Design

CWP Powered Coil Straightener Model No. 36-64PDS
Four inch diameter straightening rolls
Back ups on upper and lower straightening rolls
Powered straightening roll adjustments
Six inch diameter entry and exit pinch rolls
Entry stock end-debender
Coil hold down arm
Stock peeler table
AC VFD drive and controls
Loop control

CWP Coil Reel Uncoiler And Load Car Model No. 6R36
Three leaf mandrel with hydraulic expansion
Air brake mounted on main spindle
Jog drive for threading
Traveling coil load car
Powered lift and travel
