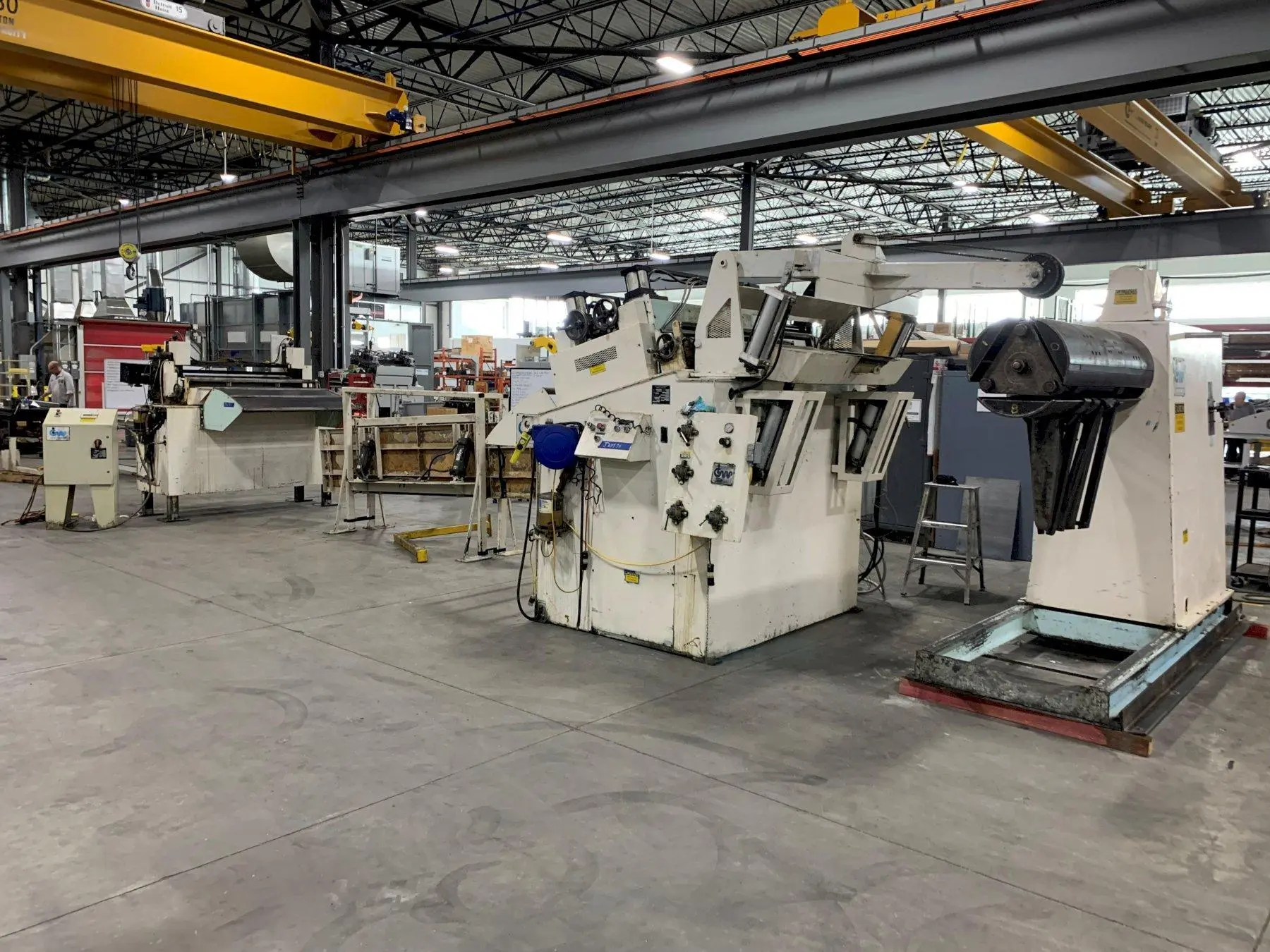

USED CWP SMX11154X / 54HDD7 / 6.5R

CWP Coil Feed Line 20,000 Lbs. x 54" Wide x .125"

Stock thickness capacity: .125" x 54" Wide
Stock thickness capacity: .187" x 34" Wide

CWP Servo Roll Feed Model No SMXIII 54H6
Six inch diameter upper and lower feed rolls
Piloting upper roll lift - air operated
Adjustable stock width edge guides - hand crank
Entry cascade loop support rollers
Heavy duty cabinet base mounted
Adjustable pass line
Automatic lubrication system
AC Servo drive and controls

CWP Powered Coil Straightener Model No. 54HDD7
Seven straightening rolls
Back up supports on upper and lower straightening rolls
Entry and exit pinch rolls with air operated adjustment
Adjustable stock width edge guides - hand crank
Coil hold down arm with motorized end wheel
Stock peeler table
Exit cascade loop support rollers
Automatic lubrication system
AC Variable frequency drive and controls
Operator's control station

CWP Exit Thread Tables (Dual Sided)

CWP Coil Reel Model No. 6.5R
Three leaf mandrel
Hydraulic expansion
Coil keeper arms
Air brake with adjustable tensioning
Threading drive for jog forward and reverse
