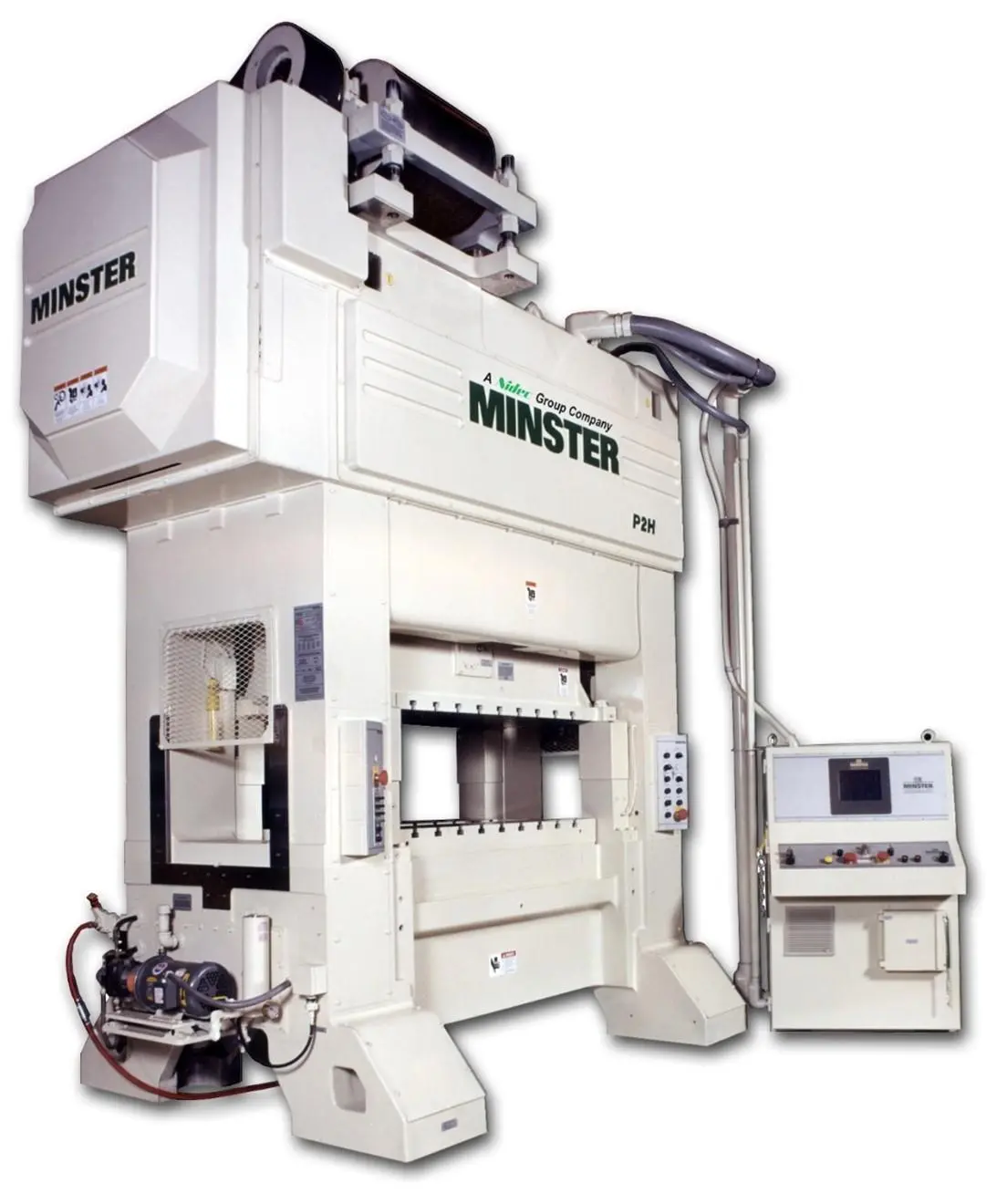

NEW 2024 MINSTER P2H-160-63×33-FW

SPECIFICATIONS

Press Specifications
Model Number........................................................   P2H-160-63×33-FW
Force × Distance off Bottom..................................   180 ton × 0.060 in
Crankshaft Extension Location...............................   Opposite Drive Side
Drive Arrangement..................................................   Flywheel
Drive Location........................................................   Left Hand Side
Lube Unit Location.................................................   Opposite Feed Side
Approximate Press Weight.....................................   67,000 lb
Shutheight Indicator Readout.................................   Inch
Shop Air Pressure, Minimum..................................   85 psi

Press Slide Specifications
Stroke Length, Speed Range...................................   1.97 in, 70 - 350 spm
Shutheight Adjustment...........................................   3.94 in
Quick Access Slide Range......................................   0.50 - 4.50 in
Area of Slide, R-L × F-B........................................   63.0 × 33.5 in
Slide Face Machining...........................   Customer Specification

Press Bolster Specifications
Bolster Plate Material..............................................   Steel
Bolster Plate Thickness...........................................   4.92 in
Area of Bolster, R-L × F-B.....................................   63.0 × 33.5 in
Opening in Bolster, R-L × F-B...............................   36.0 × 12.0 in
 Bolster Plate Machining........................   Customer Specification

Press Frame Specifications
Upright Passline Opening, F-B...............................   24.8 in
Area of Bed, R-L × F-B..........................................   63.0 × 33.5 in
Opening in Bed, R-L × F-B....................................   51.2 × 14.6 in
Bed Deflection at 67% of Die Area........................   0.0012 in/ft
Shutheight, Maximum (SDAU)..............................   17.72 in, on Bolster
Approx Clearance, Mount to Bottom of Bed.........   11.8 in
Approx. Distance Mount to Top of Bolster............   46.4 in
Approx. Distance Mount to Top of Bed.................   41.5 in
Approx. Floor Area, R-L × F-B..............................   132 × 80.0 in
Approx. Overall Area, R-L × F-B...........................   132 × 80.0 in
Approx. Overall Height, from Mount.....................   160 in
