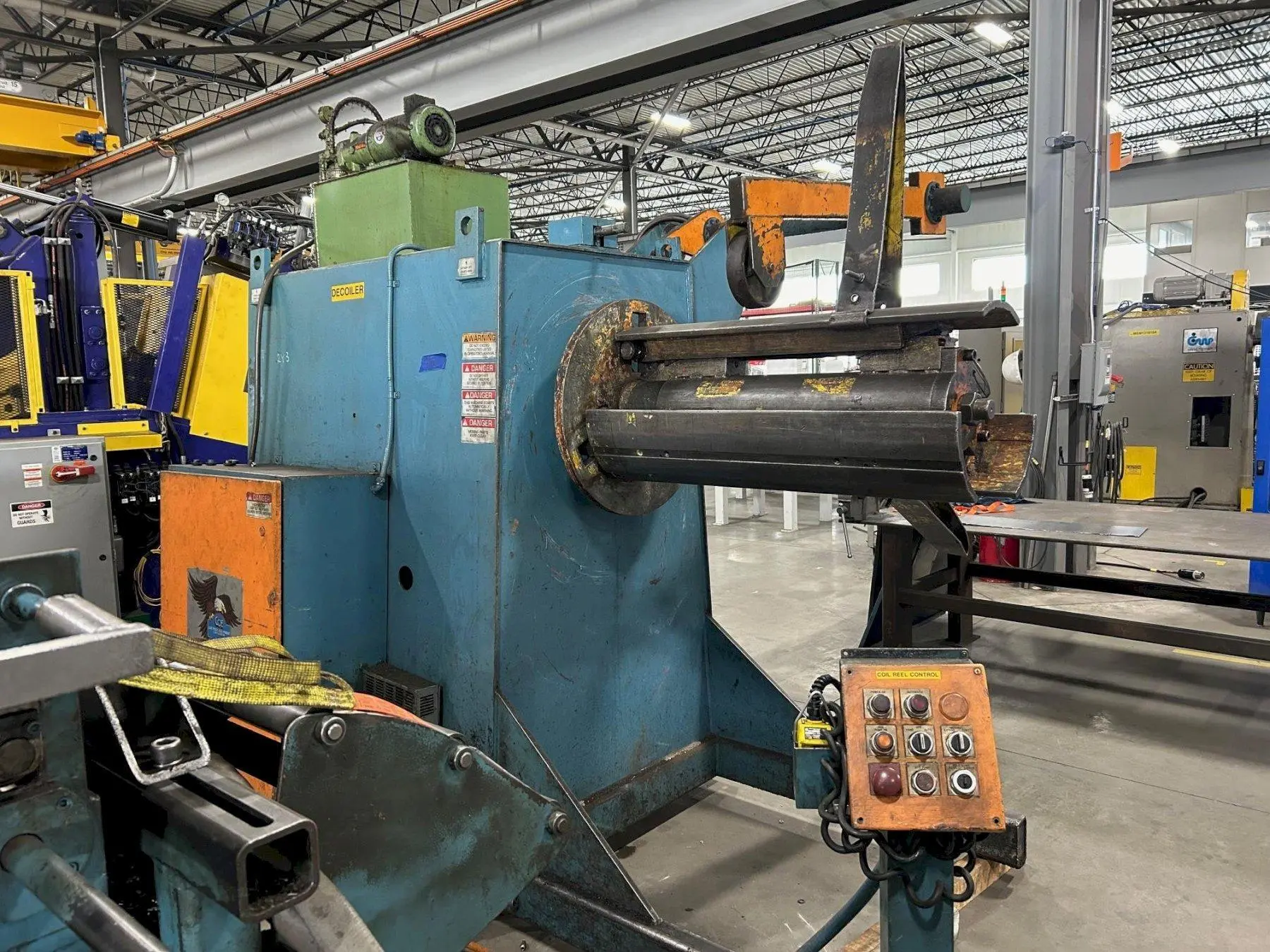

Coe Press Coil Reel (Motorized Payout) 15,000 Lbs. x 36" Wide
Coe Press Motorized Coil Reel Specifications:
Coil weight capacity: 15,000 Lbs.
Coil width capacity: 36"
Expansion range: 20" - 24" (To be confirmed)
Coil O.D. Capacity: 60" / 72" (To be confirmed)
Coe Press Motorized Coil Reel, Model No.: CPR-15036, Serial No.: 27880-1
Three leaf mandrel coil reel
Hydraulic mandrel expansion
Stand alone hydraulic unit
Air operated coil hold down arm
Air brake
Motorized payout
Variable speed drive
Jog forward and reverse
Auto/Run cycle
Loop control
