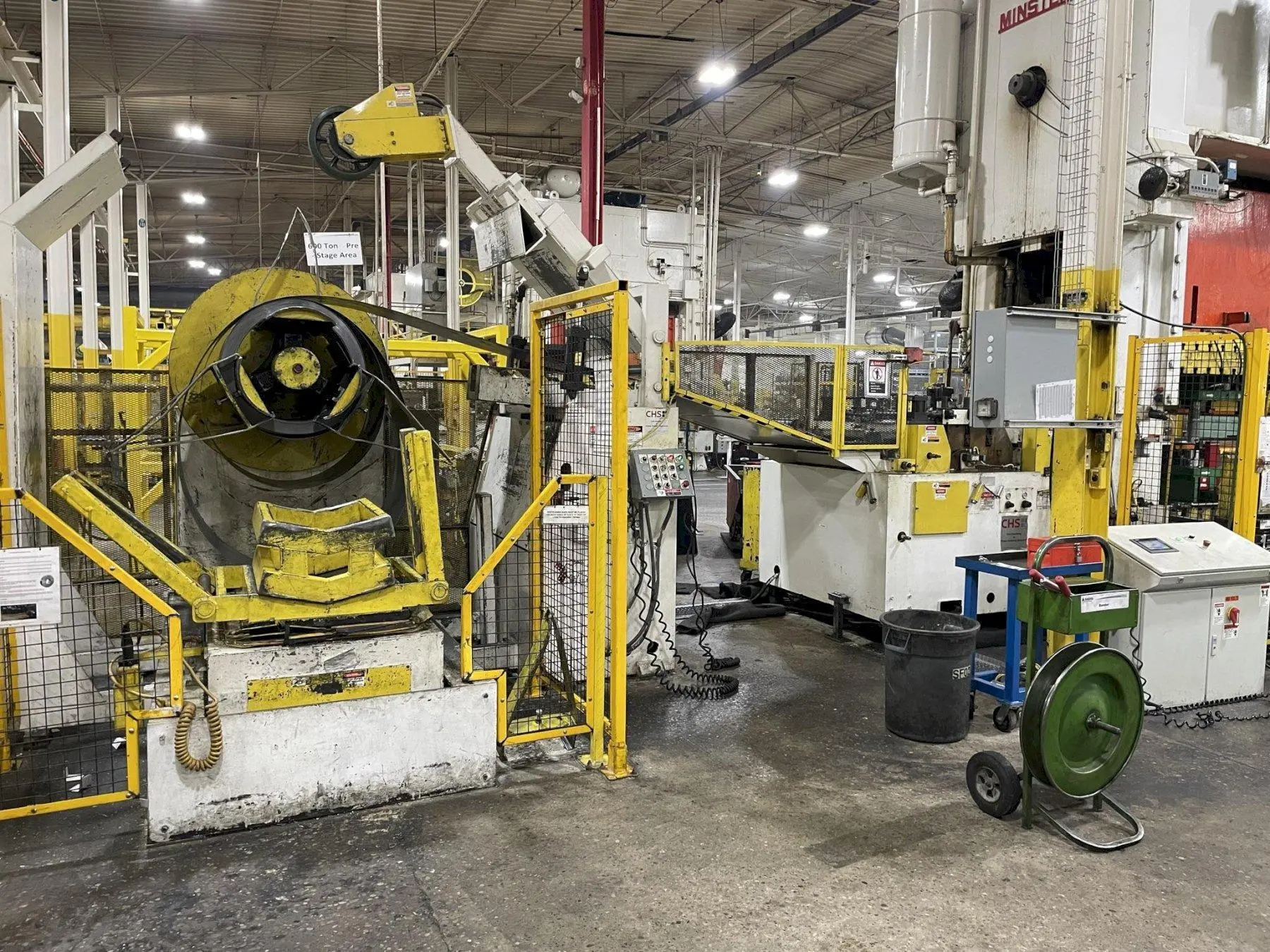

USED 2008 CHS DR200-36 / DFRS5-36

CHS Complete Coil Feed Line 20,000 Lbs. x 36" Wide x .135"

CHS Complete Coil Feed Line Specifications:Coil weight capacity: 20,000 LbCoil width capacity: 36"Stock thickness capacity: .135" x 36" wide
Stock thickness capacity: .180" x 18" wideExpansion range: 19.5" - 24.5"Coil O.D. Capacity: 72"CHS Complete Coil Feed Line Equipment And Features:CHS Motorized Coil Reel, Model No.: DR200-36, Serial No.: 08-5829Three leaf mandrel coil reelHydraulic coil reel mandrel expansionStand alone hydraulic unitClock spring safety guard
Traveling coil load car
Powered lift and travelMotorized coil payoutVariable speed driveJog forward and reverseAuto / Run cycleLoop controlCHS Peeler, Threading, Hold Down Arm Station, Model No.: PTH-36, Serial No.: 08-5831Stand alone PTH stationHydraulic hold down arm raise and lower
Hydraulic motorized hold down arm end wheel
Hydraulic peeler table raise and lower
Air operated peeler table spade extension
CHS Automation Servo Roll Feed Straightener Combination, Model No.: DRFS5-36, Serial No.: 08-5832Five inch diameter full width upper and lower feed rollsMatte chrome finish on servo feed rollsAir operated upper servo roll lift / pilot (solenoid controlled)Seven roll pull thru straightener x 3.5" diameterIndividual upper pull thru straightener roll adjustments via screw jacksAir operated upper pinch roll adjustmentMotorized pinch roll assembly with air clutch engagementJog forward and reverseStock width edge guidesCascade loop support rollersCentralized lubrication pointsOutboard air pressure regulators and gauges Heavy duty cabinet base mountedPass line adjustmentUpdated AC servo roll feed drive and controls
Chute extension per UMP final spec included

Price break down:          .
Equipment as described above: $ 174,000
Installation and start up:            $   11,000
Shipping:                                    $     5,000

Total order mount:  $ 190,000
