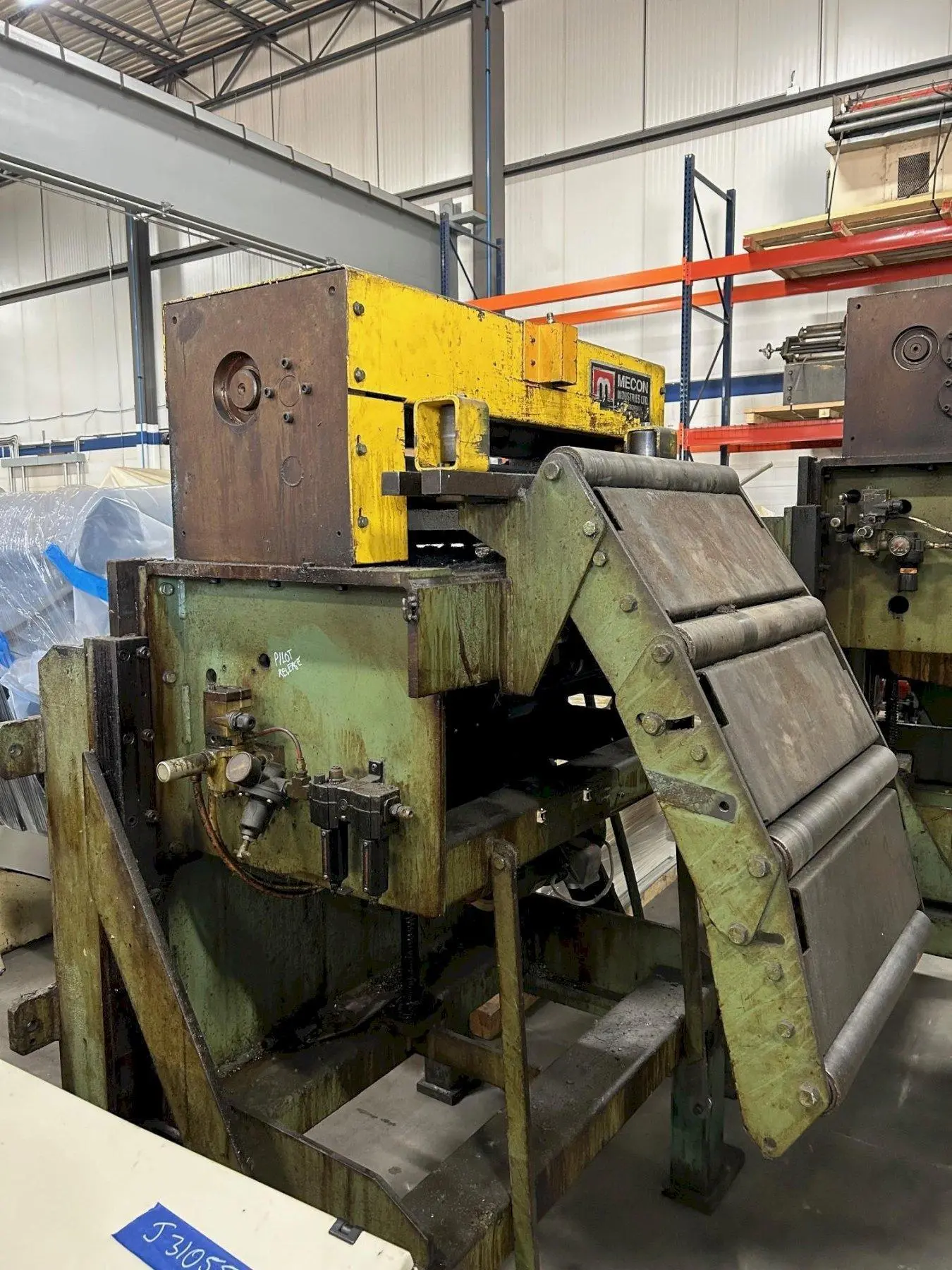

Mecon Servo Roll Feed 24" Wide
Mecon Servo Roll Feed Press Feed Specifications:
Stock width capacity: 24"
Stock thickness capacity: .280" x 24" Wide
Stock thickness capacity: .340" x 12" Wide
Mecon Servo Roll Feed Press Feed Equipment and Features:
Five inch diameter upper and lower servo feed rolls
Matte chrome servo feed roll finish
Air operated upper servo feed pilot release
Cascade loop - material support rollers
Hand crank adjustable stock width edge guides
Heavy duty press mount feed stand
Motorized pass line adjustment
NEW AC servo roll feed drive and control package with STO (safe torque off) function
Touchscreen HMI operator interface
Job memory micro adjust batch count etc (Consult sales for complete details)
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
Auto Mode
