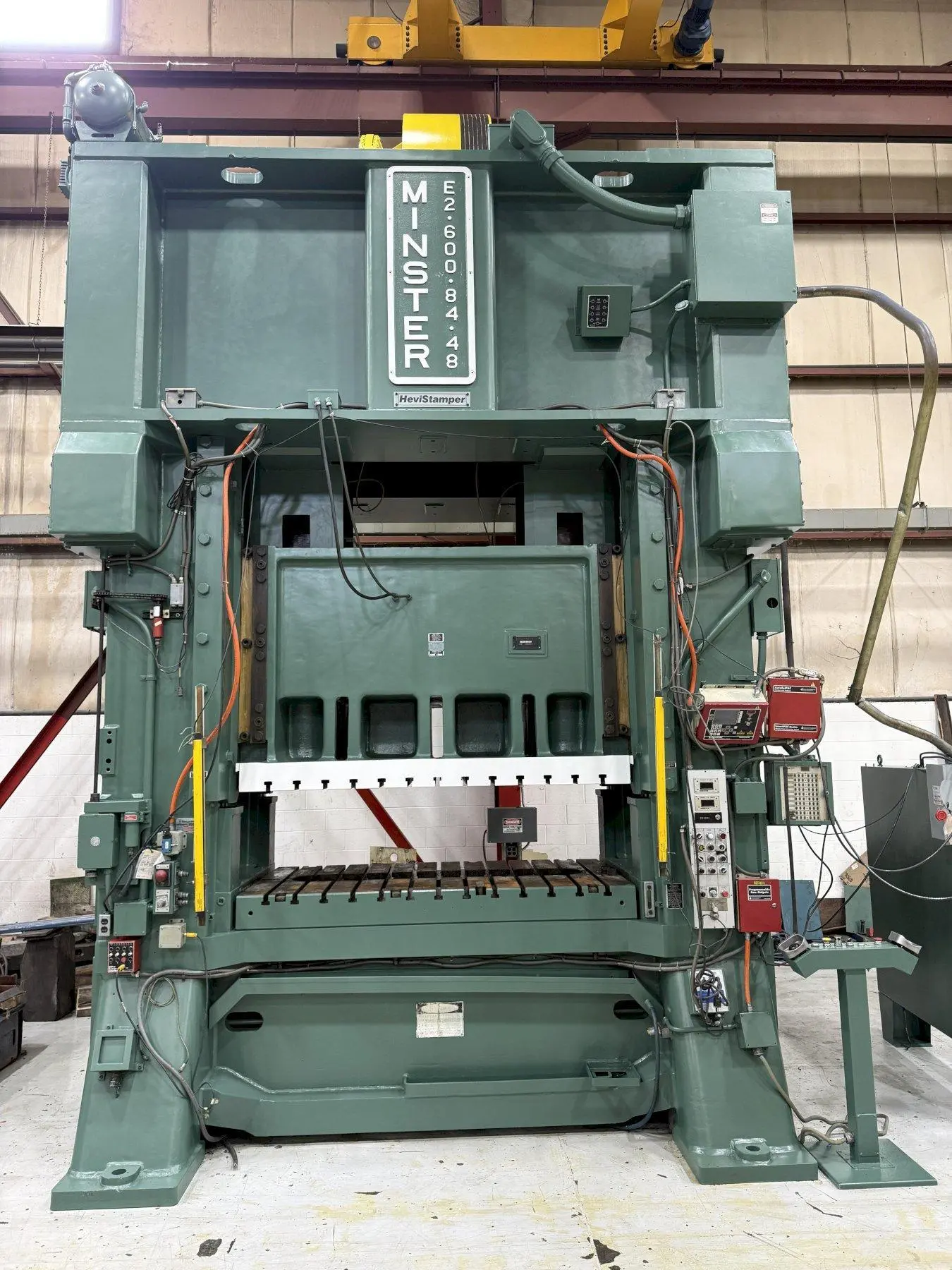

USED 1988 MINSTER E2-600-84 X 48

Used Minster E2-600-84

600-ton Straight Side Mechanical Metal Stamping Press
Minster Hevi-Stamper Model E2-600-84 x 48
600 ton Capacity
12" Stroke
32" Shut Height
25" Die Height on Bolster
6" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
0-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube SystemSingle Geared - Twin End Drive8 Point Adjustable GibsArranged for 3 Crossbar Knockouts in Ram
T-Slotted Ram and Bolster
Banner Light Curtains42" Floor to Top Of Bed
Wintriss Smart Pak 2 Press Control Wintriss Die and Overload Protection
Wintriss Brake Monitor
Palm Button Station
Free Standing Console Controls
33" wide Windows100 HP / 1800 RPM Eddy Current Drive 480 volt / 3 phase / 60 Cycle
Vibratory Leveling Pads
