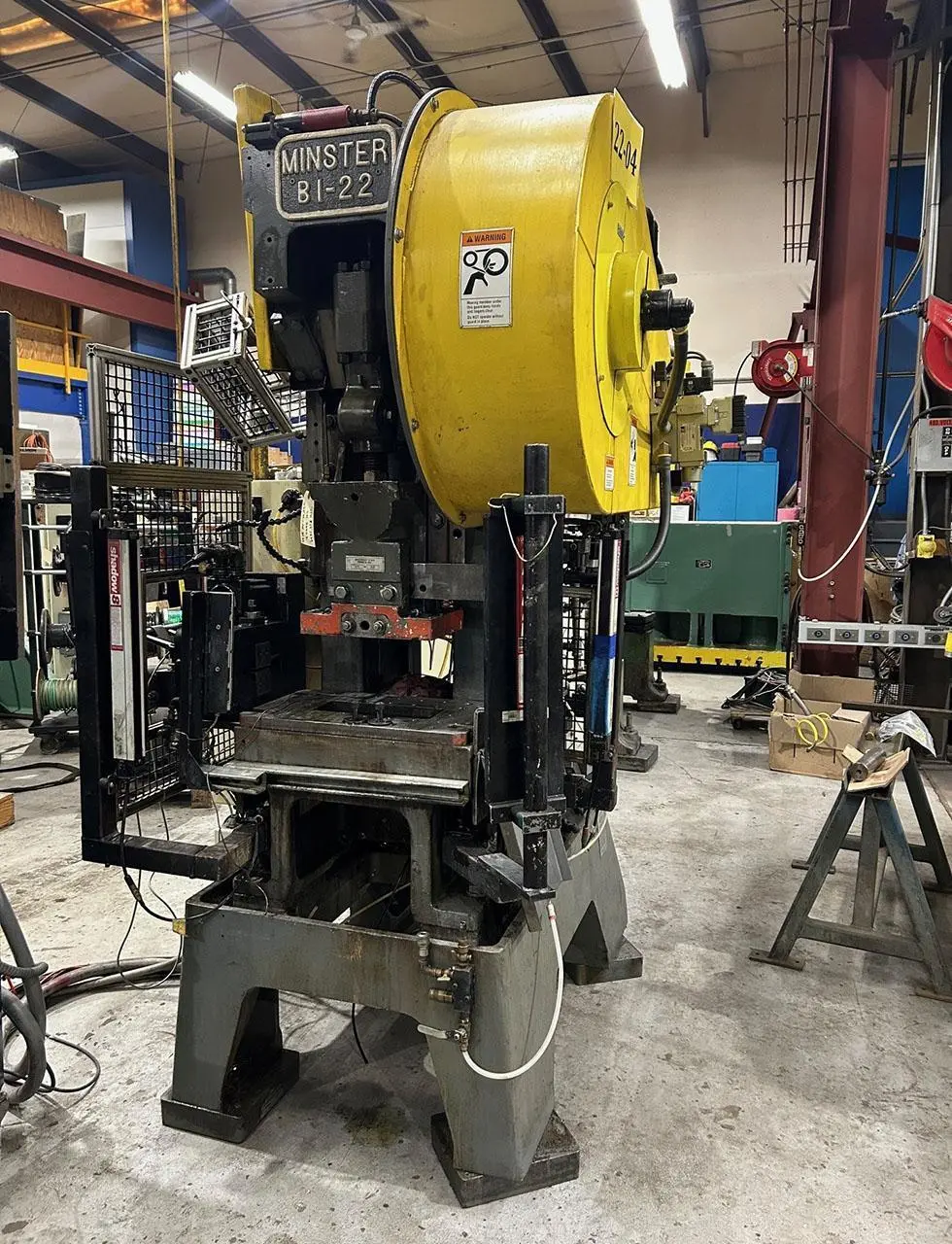

USED 1988 B1-22-20 Gap Frame (OBS) Presses

Minster B1-22-20

SPECIFICATIONS:

Tonnage = 22 Ton
Stroke = 1.5″
Speed (Variable) = 900 SPM
Slide Adjustment = 2″
Shut Height (S.D.A.U.) = 7.75″ on bed.
Ram Size = 12″ L-R x 8″ F-B
Bed Area = 21″ L-R x 12.5″ F-B
Motor = 3 HP
Electrics = 220/440V/60HZ/3PH
Weight (Approx.) = 4,900 lbs.

EQUIPPED WITH:

Minster Air Clutch and Brake
Wintress WPC with SmartPac 2
Dual Safety Clutch Valve
Recirculating Lubrication System
Floor Operator Control
1″ Bolster (Center Cutout 10.75″ L-R x 4.25″ F-B)
(4) Isolation Mounts
