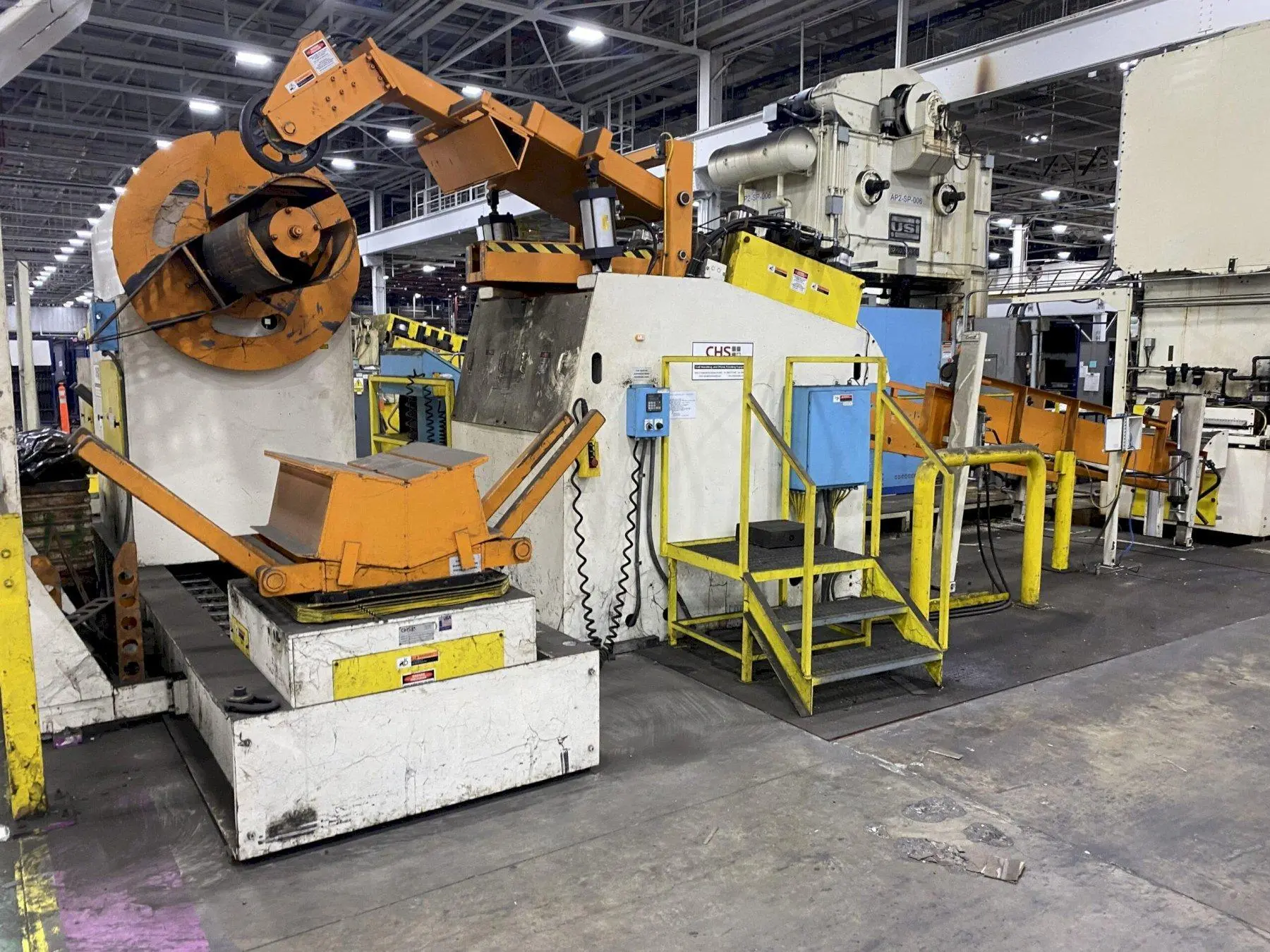

USED CHS R200 / PS300 / DRF436

CHS Automation Coil Feed Line 20,000 Lbs. x 36" Wide

Stock thickness capacity: .110" x 36" Wide
Stock thickness capacity: .160" x 12" Wide

CHS Coil Reel Model No. R200-36
Three leaf mandrel with hydraulic expansion
Air drag brake for adjustable tensioning
Threading drive for jog forward and reverse
Coil load car
Powered lift and travel

CHS Powered Straightener Mode No. PS300-36
Entry and exit pinch rolls
Seven straightening rolls
Motorized upper roll adjustments
Back ups on upper and lower straightening rolls
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Operator's control station
Auto / Run cycle
Laser loop control with remote stand

CHS Exit thread table Model No. ETT-36
Bomb bay door design

CHS Servo Roll Feed Model No. DRF-436
Four inch upper and lower feed rolls
Pilot release upper roll
Cabinet base mounted
AC Servo drive and controls
