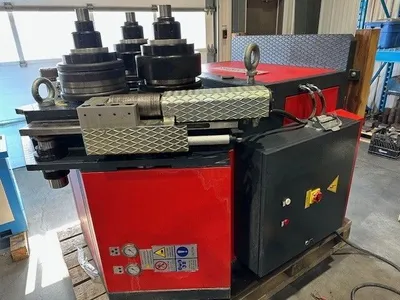

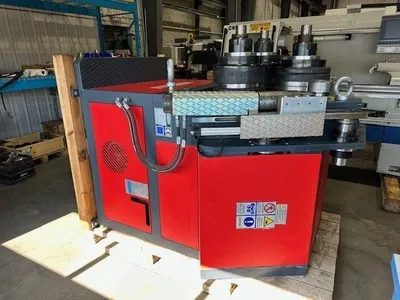

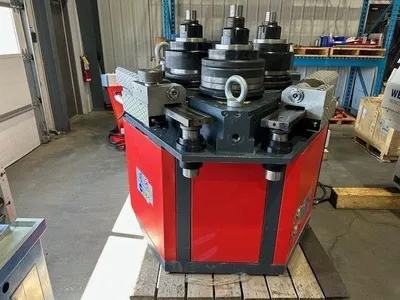

USED 2022 AKYAPAK APK 101
Overview
Specifications
| Capacity | 0" | 0 mm |
|---|---|---|
| Horz/Vert | '' | '' |
| Dimensions | 78" x 60" x 60" | 78" x 60" x 60" |
| Weight | 5,000 lbs | 5,000 lbs |
Specifications (subject to buyer verification):

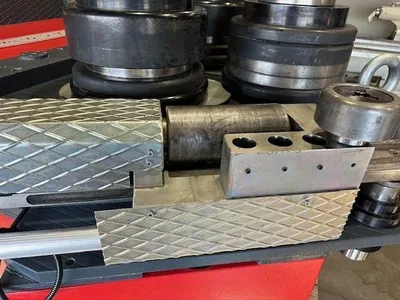

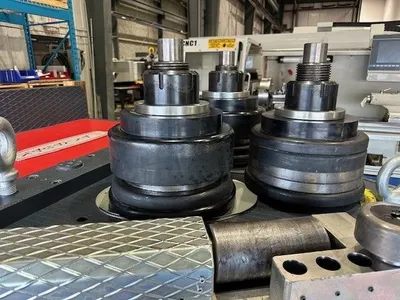

Rolls: 3-Roll Driven Design with Hydraulically Driven Guide Rolls
Capacity: Can Handle Angles, Pipes, and Other Profiles
Bending Speed: 16.5 ft/min.
Roll Diameter: 12.4"
Shaft: 4"
Motor Power: 15 HP
Material Capacity: Maximum Section Modulus of 2.7” - 4.9”
Hardened Rolls: Induction Hardened, 55 to 55 Rockwell
Drive: Planetary Gear Reducers and Hydraulic Motors
Guide Rolls: Hydraulically Driven with Three-Directional Movement for Precise Bending
Dimensions: 78” x 60” x 60”
Weight: 5,000 lbs
Equipped With
Equipped With (subject to buyer verification):

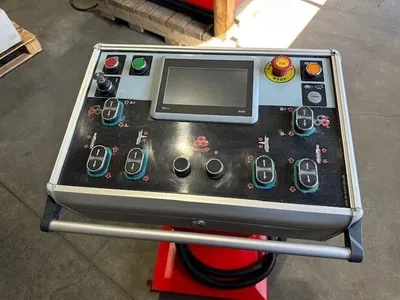

Digital Display for Lower Rolls, Separate and Moveable Control Panel
Machine Body is Steel (ST-52) Construction
One Set Standard Rolls
Lower Rolls Hydraulic Moveable Up and Down
Horizontal & Vertical Working
