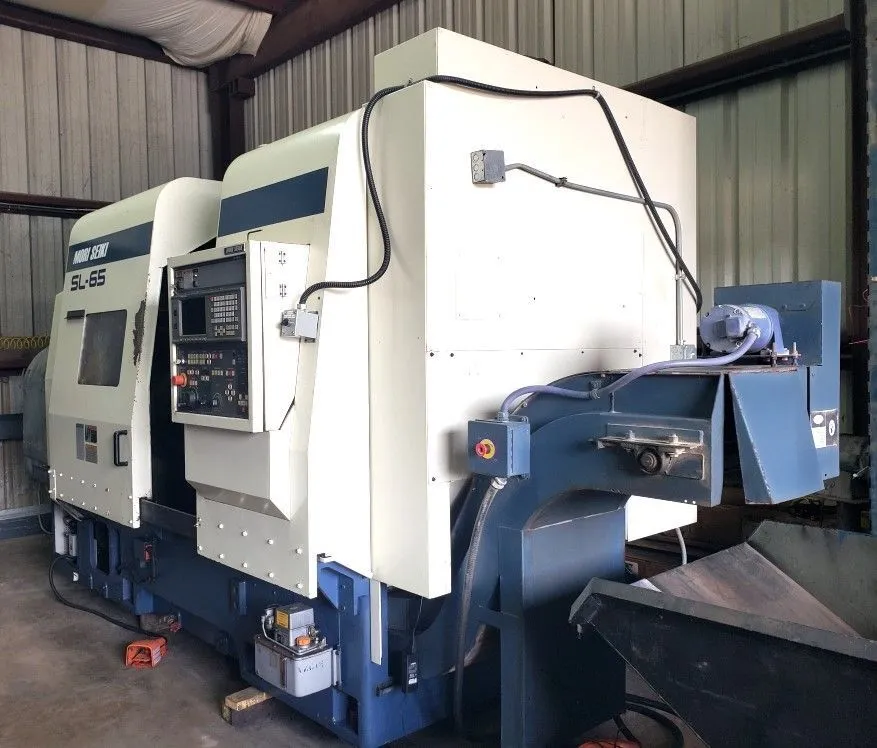

USED 1998 MORI SEIKI SL-65C
Overview
Description
1998 MORI-SEIKI SL-65C BIG BORE TURNING CENTER WITH 10.2" THRU-HOLE 2- 20" DIAMETER 3-JAW INSTALLED SMW-AUTOBLOK BIG BORE 9.05"" I.D. THRU- HOLE AIR CHUCKS, 35" SWING, 40" CENTERS, FANUC MSC-516 CNC CONTROL AND ALL OPTONS
Specifications
| Swing | 35" | 889 mm |
|---|---|---|
| Machining Length | 27.6" | 701.04 mm |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Bar Capacity | 9.05" | 229.87 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 660 RPM | 660 RPM |
| Turning Dia | 25.6" | 650.24 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (MORI FANUC MSC-516) | CNC (MORI FANUC MSC-516) |
| Weight | 22,000. Lbs. | 22,000. Lbs. |
1998 MORI-SEIKI SL-65C BIG BORE TURNING CENTER WITH 10.2" THRU-HOLE AND 2- 20"
DIAMETER SMW AUTOBLOK 3-JAW AIR CHUCKS WITH 9.05" I.D. THRU HOLE INSTALLED SMW - AUTOBLOK
AND INCLUDED, 35" SWING, 40" CENTERS, FANUC MSC-516
CNC CONTROL
Main Specifications
Maximum Swing: 35"
Maximum Machining Diameter: 25.6"
Swing Over Cross Slide 26"
Center Distance: 40"
Spindle Bore: 9.8"
Spindle Nose: A2-20
Spindle Speeds: 660 RPM
Tool Capacity: 12 Tool Turret
X-Axis Travel: 13.9"
Z-Axis Travel: 33.8"
Main Motor: 50 HP
Weight 22,000. Lbs.
Equipped with
2-20" 3-Jaw Front & Side 9.05" Big Bore Air Chucks
Fanuc MSC-516
Programmable Tailstock
Side Discharge Chip Conveyor
All Available Tooling
All Available Manuals
Special Price:....$ Please Email Requests for Quotations
CNC Technician Engineer Fully Operational Tested in Excellent Running Condition.
