| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 122" | 3,098.8 mm |
| Hyd/Mech | MECH | MECH |
| Back Gauge | 24" | 609.6 mm |
| Power | 7.5 hp | 5.6 kW |

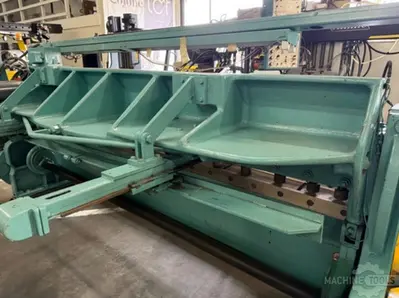

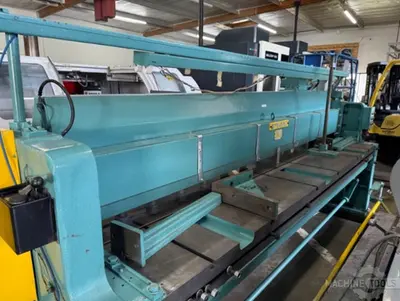

10 Gauge X 10’ Mechanical Power Squaring Shear with Squaring Arm, (2) Support Arms and Front Operated Power Backgauge.GENERAL SPECIFICATIONS Cutting Length: 120”Mild Steel Cutting Capacity: 10 GaAluminum Cutting Capacity: .125”Stainless Steel Cutting Capacity: .090”Rake, Taper Per Foot: ⅜”Stroke Speed: 60 SPMMotor: 5 HPElectrics: 220V / 440V, 3-PhDimensions: 168” X 90” X 72”HApprox Weight: 11,500 LbsINCLUDES: Squaring Arm, (2) Support Arms and Front Operated Power Backgauge.
