350 ton by 14' wide, 12'6" Between housings, Hydraulic press brake
| Tonnage | 350 T | 317.515 t |
| Type | HYD | HYD |
| Overall Length | 14' | 4.3 m |
| Between Housings | 12.5' | 3.8 m |
| Stroke | 10" | 254 mm |
| Dimensions | 162" LR X 75" FB X 132" TALL APROX. | 162" LR X 75" FB X 132" TALL APROX. |
| Weight | 40,000 LBS APROX. | 40,000 LBS APROX. |
SERIAL ....................... 41835
MODEL ........................ 350 CB
CAPACITY ..................... 350 TON
OVERAL BED & RAM ............. 14'
DISTANCE BETWEEN HOUSINGS .... 12'6"
STROKE ....................... 10"
DAYLIGHT ..................... 18"
RAM SPEED APPROACH ........... 105 IPM
RAM SPEED FORMING ............ 5- 10- 20 IPM
RAM SPEED RETURN ............. 95 IPM
THROAT ....................... 10"

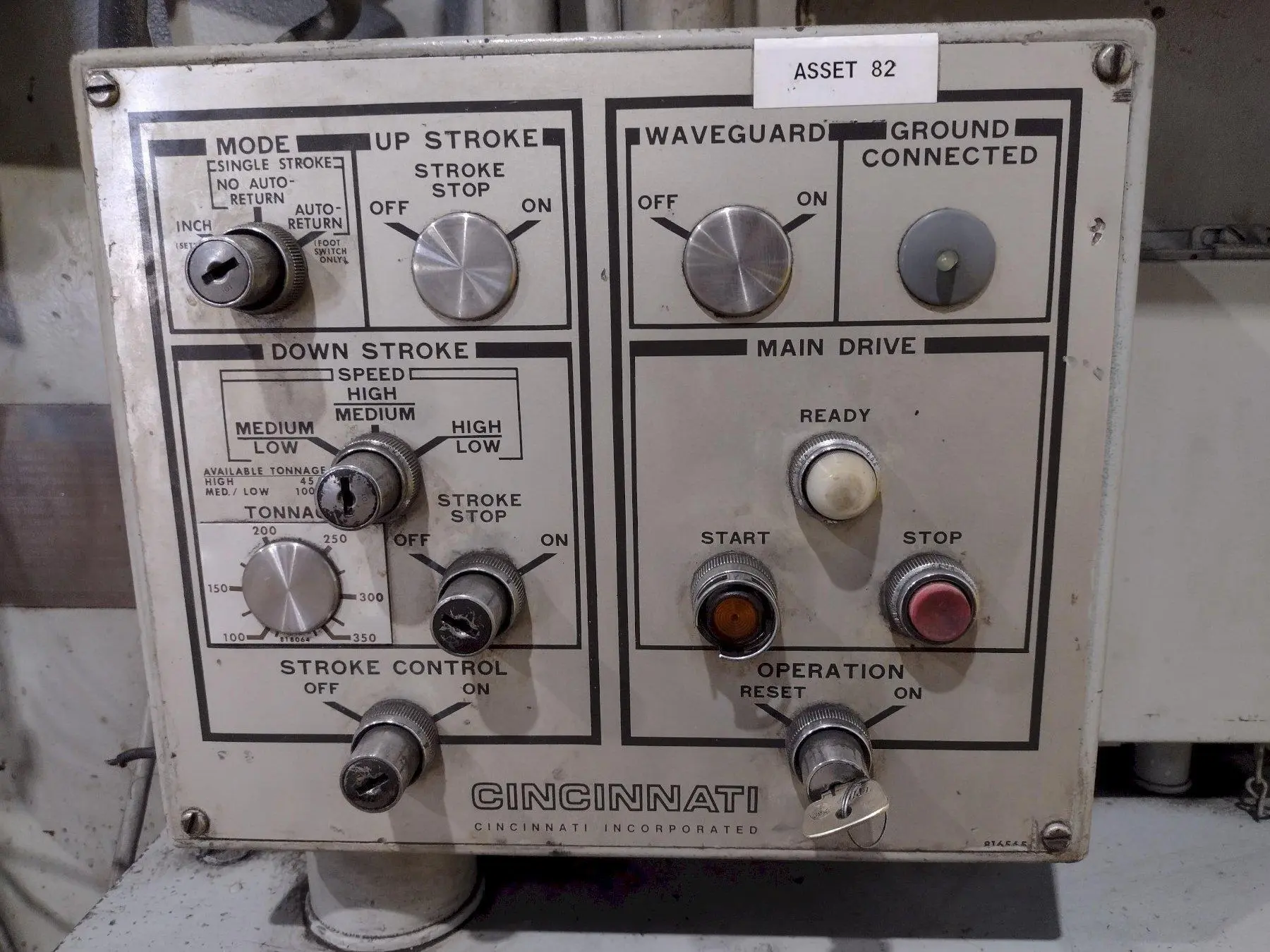

PALM BUTTON STATION .......... YES
ELECTRIC FOOT TRIP ........... YES
MOTOR ........................ 35 H
older nc back gauge, Bed rail
