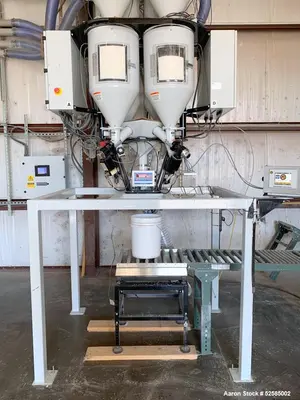

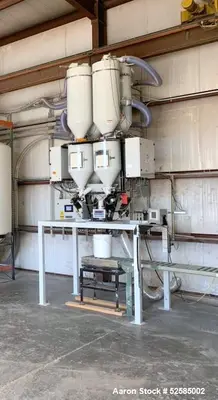

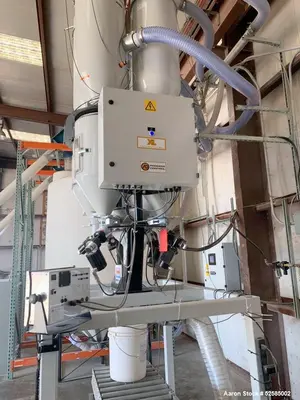

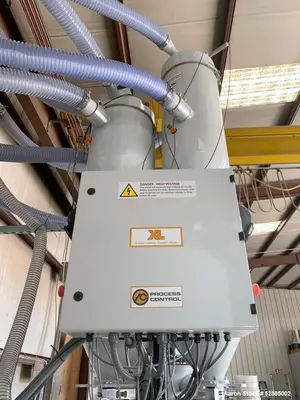

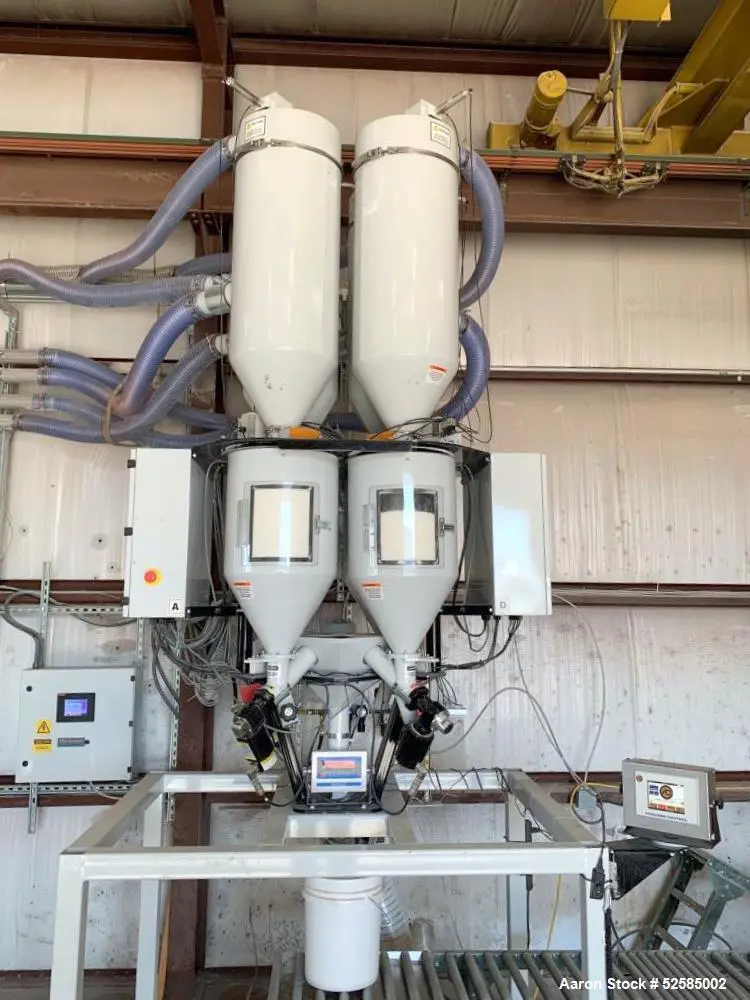

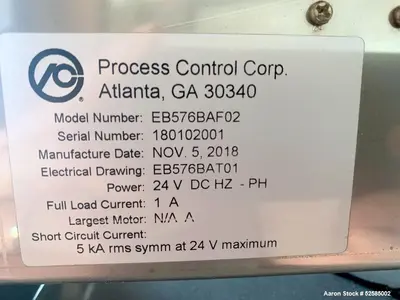

Used Process Control Corporation X Series 2 Gravimetric Blender, Model EB576BAF02. Mild steel construction; (4) Feed hoppers; Interchangeable metering units; Closed-loop speed regulation; Overload protection; integral loading support platform for receivers; (3) swing gates replacing flappers; 2.5" to 3.5" reducer for vacuum lines; 4" to 3.5" reducer for material lines. Control features included: Monitored weight loss of ingredient hoppers; Manual volumetric mode. 115V/60Hz, Built 2018. With 15HP vacuum pump and unused dust collection system.
Used Equipment Facts About This Machine
Manufacturer Information:
Brand: Process Control Corporation
Series: X Series 2
Model: EB576BAF02
Construction: Mild Steel
Year Built: 2018
Voltage: 115V / 60Hz
Condition: Used
Description:
This Used Process Control Corporation X Series 2 Gravimetric Blender, Model EB576BAF02, is a robust and precise blending system for plastics and materials processing. Built in 2018, the unit includes 4 feed hoppers, interchangeable metering units, and features closed-loop speed regulation with overload protection for consistent accuracy. The blender is equipped with monitored weight-loss capabilities, manual volumetric mode, and upgraded swing gates in place of traditional flappers for improved control. Includes an integral loading support platform, reducers for vacuum/material lines, a 15 HP vacuum pump, and an unused dust collection system.
Specifications:
Model: EB576BAF02
Series: X Series 2
Construction: Mild Steel
Hoppers: 4 ingredient feed hoppers
Metering Units: Interchangeable
Speed Control: Closed-loop speed regulation
Safety: Overload protection system
Swing Gates: (3) installed to replace flappers
Reducers Included:
2.5” to 3.5” reducer (vacuum line)
4” to 3.5” reducer (material line)
Control System Features:
Monitored weight-loss on each hopper
Manual volumetric operation mode
Vacuum Pump: 15 HP included
Dust Collection System: Unused and included
Power Requirements: 115V, 60Hz
Year Built: 2018
Features:
High-accuracy gravimetric blending with closed-loop feedback
4 independent feed hoppers for versatile recipe control
Weight-loss monitored hoppers ensure precise formulation
Interchangeable metering units for multiple material types
Manual override for volumetric mode operation
Upgraded swing gates for improved metering consistency
Integrated vacuum and dust collection components included
Compact design with integrated support platform
Ideal for extrusion, compounding, and molding operations
Applications:
Plastic pellet and resin blending
Extrusion line ingredient dosing
Compounding facilities
Injection and blow molding material prep
Masterbatch and additive blending
Film and sheet production
Recycling and reprocessing material handling
High-precision batching for custom formulations
Pre-processing raw materials for pelletizing
Automated material handling integration
What might this be used for?
Blending raw polymer resins with colorants or additives
Feeding extrusion or molding machines with consistent material mix
Replacing manual batching with automated, weight-loss control
Increasing process consistency and reducing scrap in film production
Integrating with conveying systems using the vacuum pump setup
Running continuous material feed in high-volume operations
Improving material cost control via precise metering
Providing cleaner operation with included dust collection system
Handling multiple recipes and blends with programmable control
Scaling up batch accuracy in small-to-medium plastics operations
