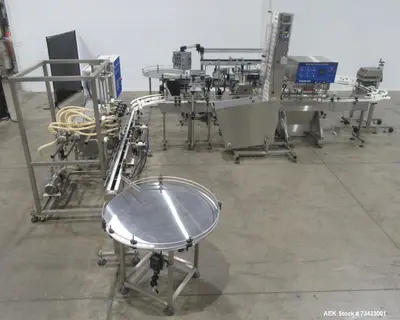

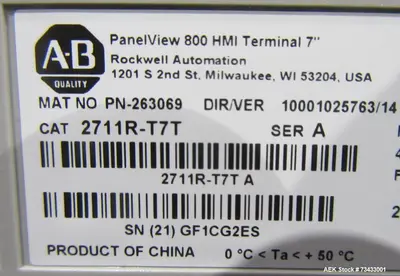

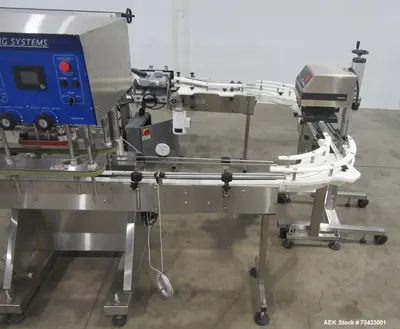

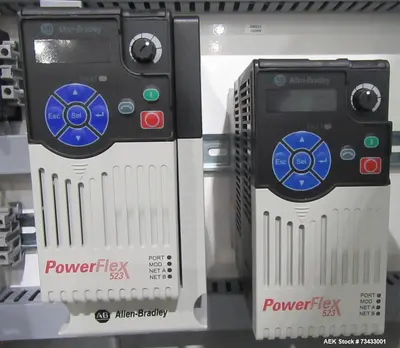

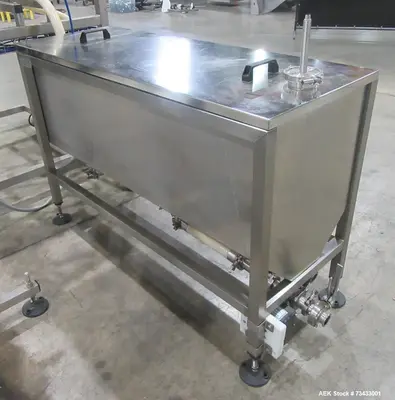

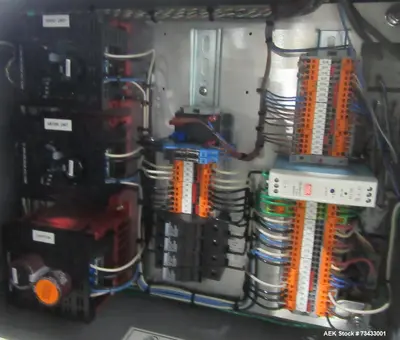

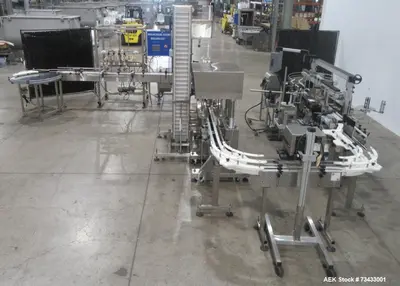

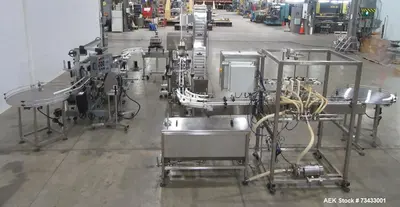

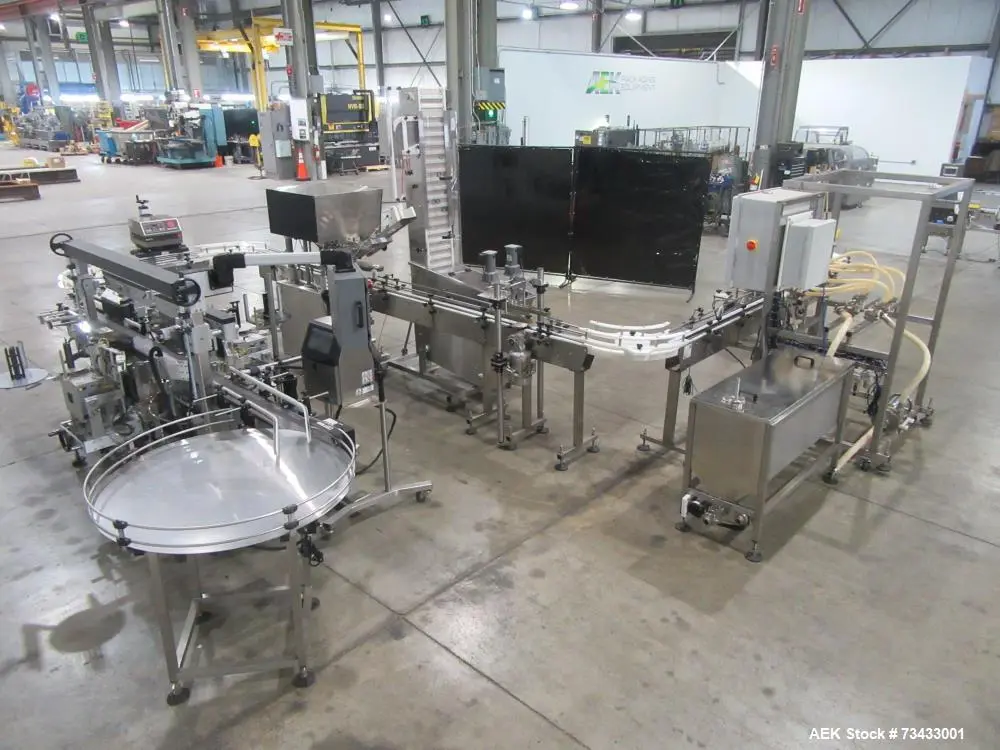

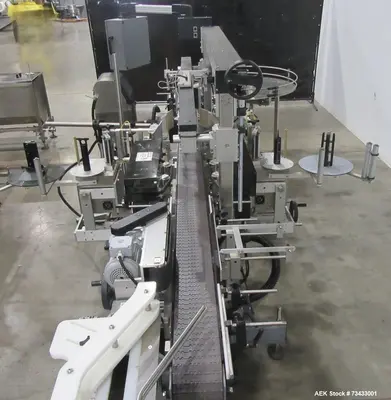

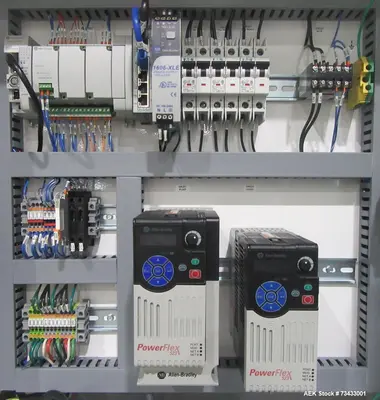

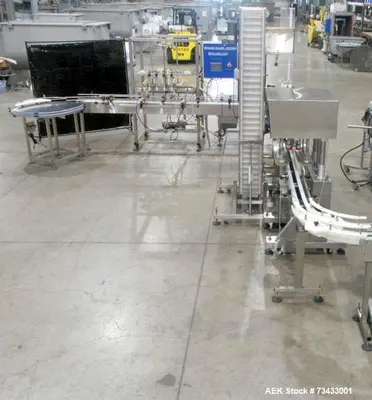

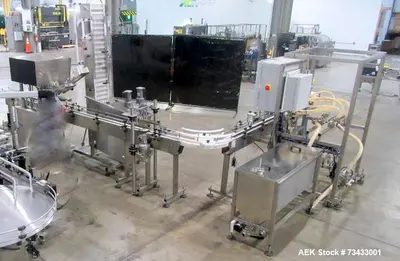

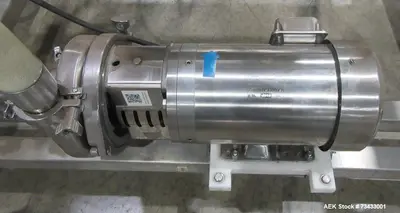

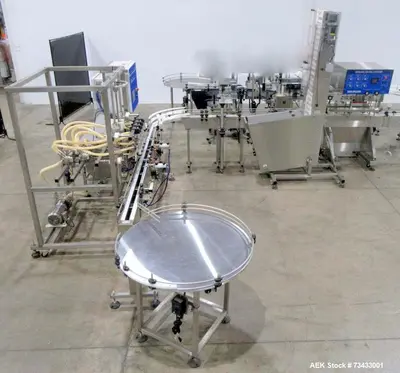

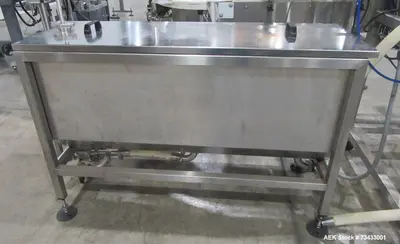

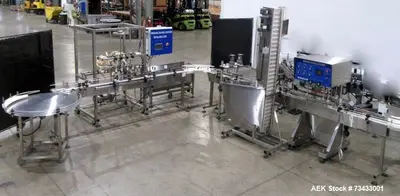

Used Inline Filling Systems Liquid Bottle Filling Line. Line was set up to run 64oz rectangular bottles and 32 oz square containers with 53mm caps. Containers were either front and back or 3 sided wrap on the square bottle. Line consists of 45" diameter stainless steel unscrambling table with variable speed drive and square bottle orientor. Inline Filling Model FOFNT48 4 head overflow filler with drip tray, 1" diameter nozzles, indexing gating system, washdown capable, AB Micro 850 PLC, (2) A/B powerflex 523 and A/B Panelview 800 HMI, overflow tank with pump. Stainless steel 4-1/2" wide conveyor chain, Computorue NT automatic capper (currently set on 53mm caps) with cap size range up to 120mm. Container range: 1-1/2" - 15" (height) x 1/2" - 7" (width). Has 5.0LH bulk cap elevator/sorter. Enercon model Super Seal 75 induction cap sealer, with air cooling. Universal CP-1000 front and back labeler with wrap station. Video Jet 1580. 48" Accumulation table. Last ran a tea beverage product.
Used Equipment Facts About This Machine
๐ญ Manufacturer Information

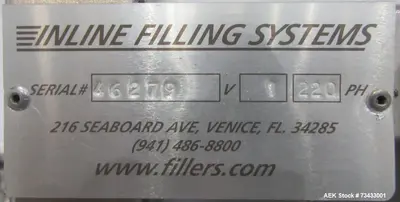

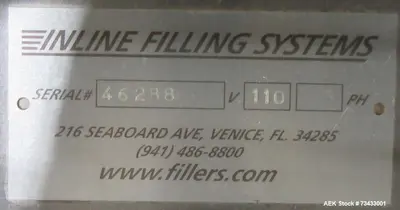

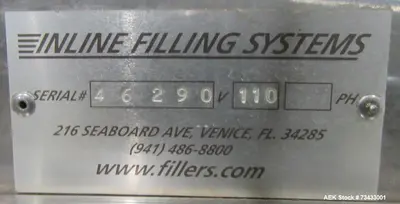

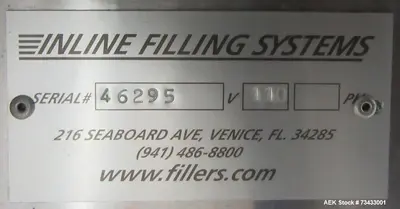

Primary Manufacturer: Inline Filling Systems
Additional Equipment Manufacturers:
Capper: Computorue NT
Induction Sealer: Enercon (Model: Super Seal 75)
Labeler: Universal (Model: CP-1000)
Coder: Video Jet (Model: 1220)
๐ Description

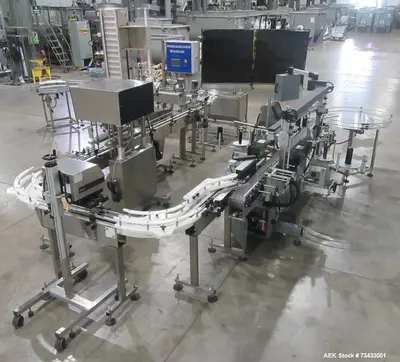

This used Inline Filling Systems liquid bottle filling line is a complete packaging solution previously set up for 64 oz rectangular bottles and 32 oz square containers with 53mm caps. The line includes bottle unscrambling, orientation, filling, capping, induction sealing, labeling, and coding.

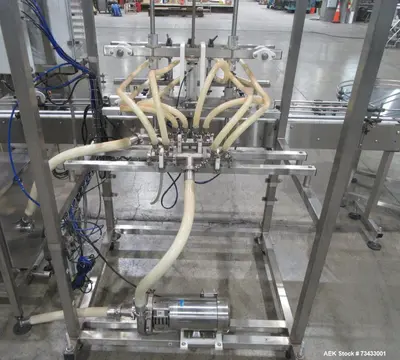

The filler is a 4-head overflow model ideal for consistent fill levels, featuring an AB PLC, color HMI, drip tray, and stainless-steel construction for washdown environments. The system is completed with an automatic capper, bulk cap feeder, induction cap sealer, wrap labeler, and a coding system, making it an excellent turnkey solution for liquid bottling operations.
โ๏ธ Specifications
Bottle Types Supported: Rectangular (64 oz), Square (32 oz)
Cap Size Supported: 53mm (up to 120mm max)

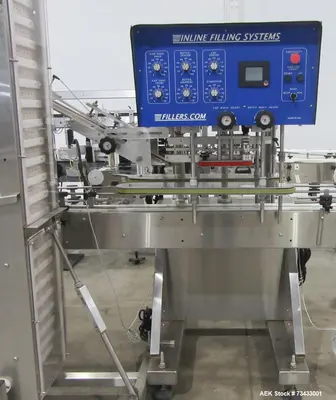

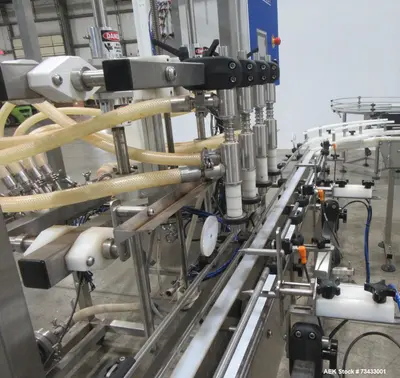

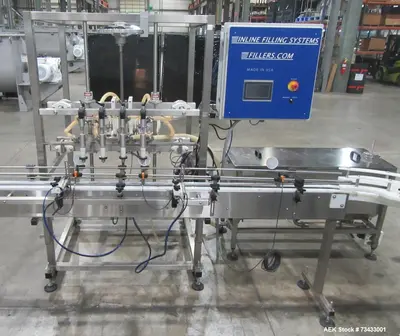

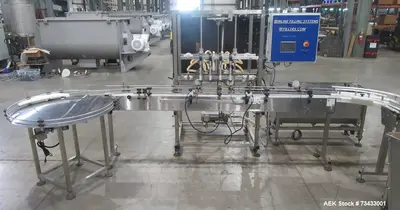

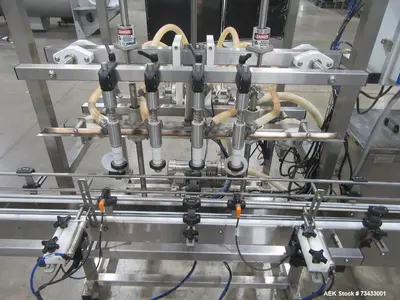

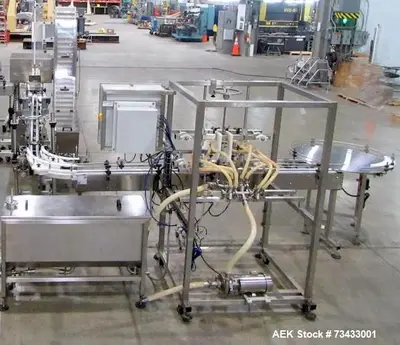

Filler Type: Inline Filling Model FOFNT48, 4-head Overflow Filler
Nozzle Diameter: 1"

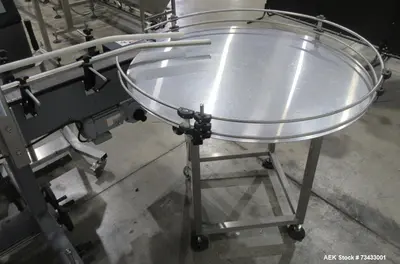

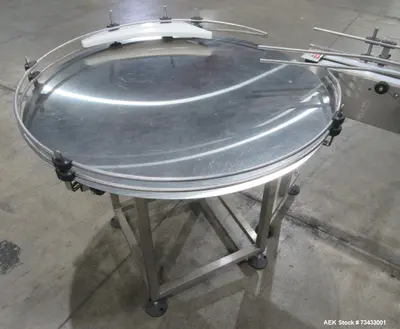

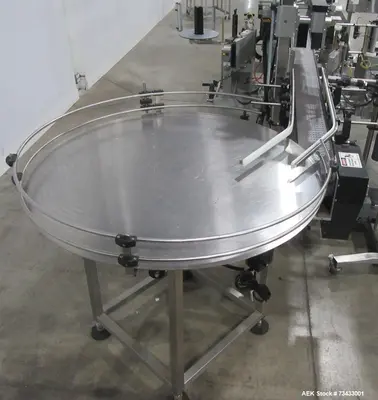

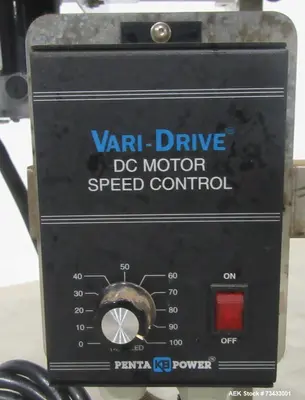

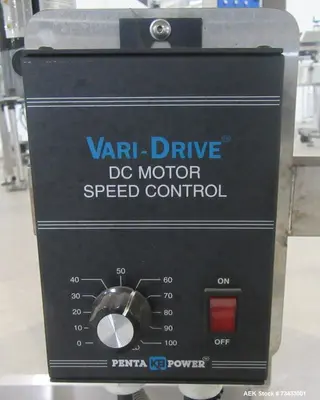

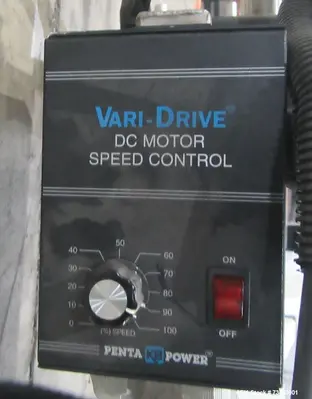

Unscrambling Table: 45โ diameter, stainless steel with variable speed
Bottle Orientation: Square bottle orientor
Gating System: Indexing type

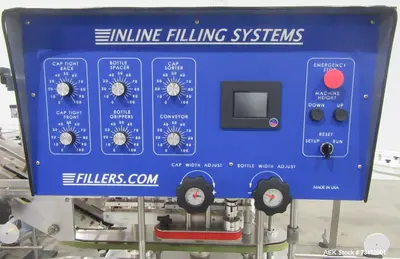

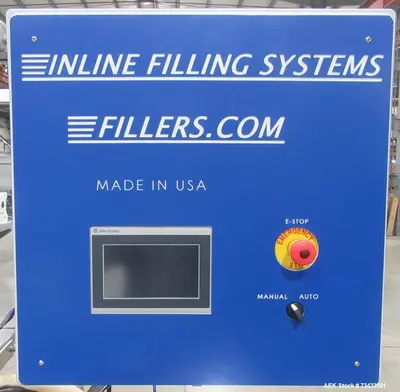

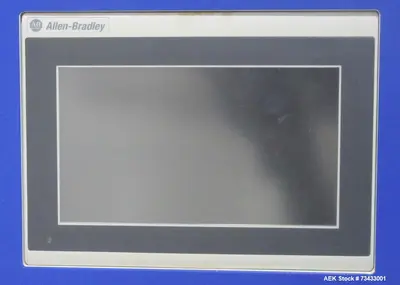

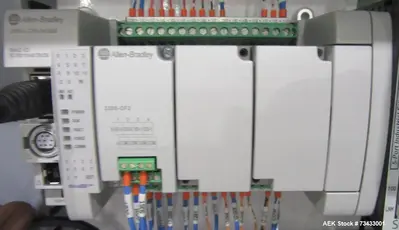

Controls: AB PLC, color touchscreen HMI

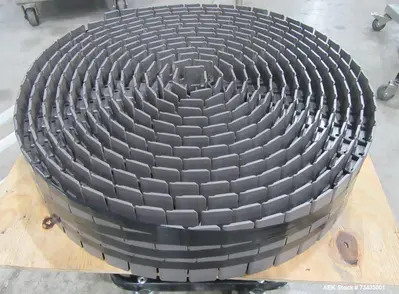

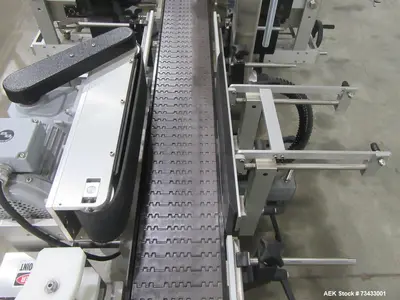

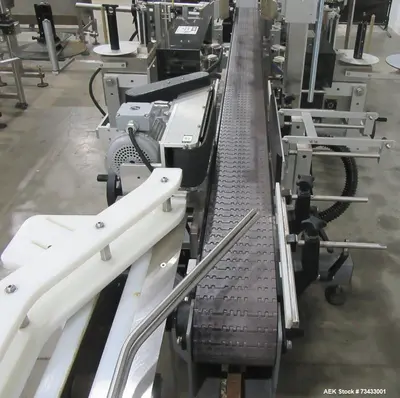

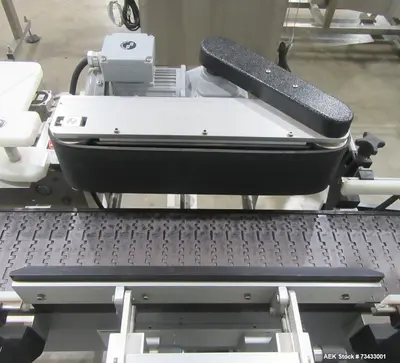

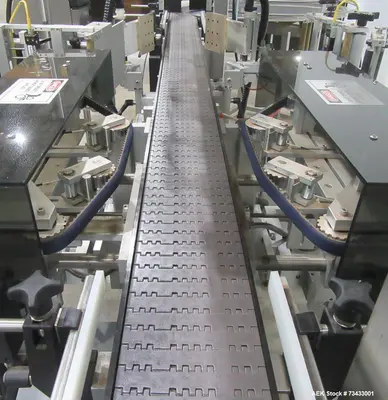

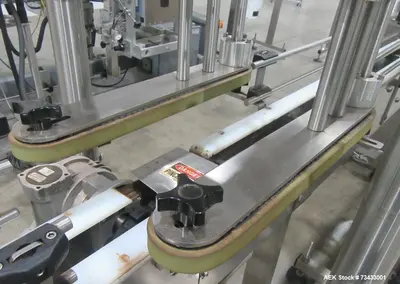

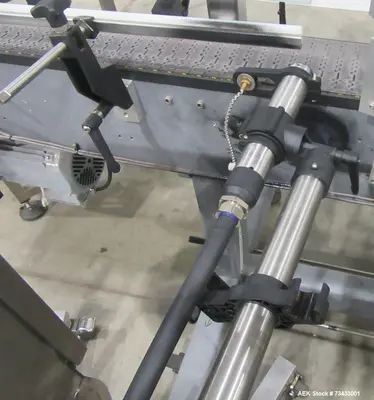

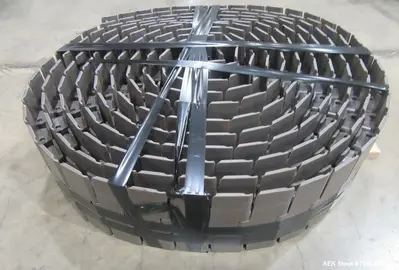

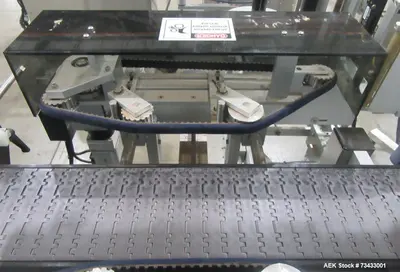

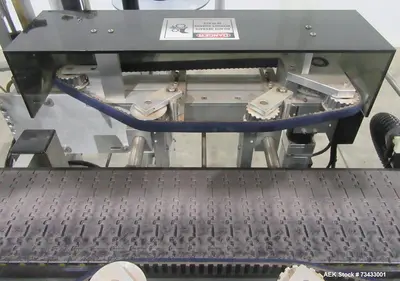

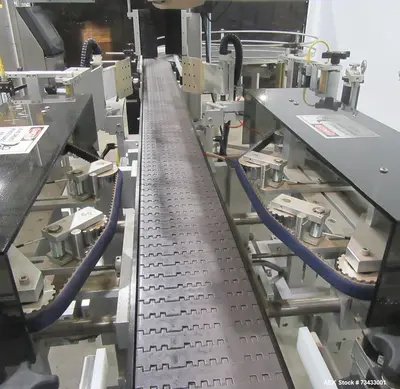

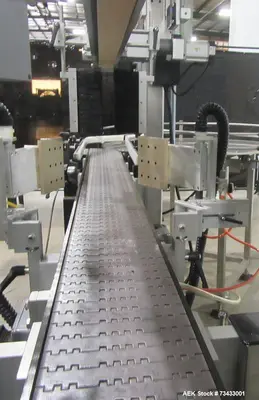

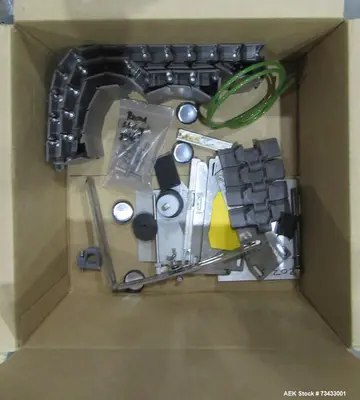

Material Handling: 4.5" stainless steel wide conveyor chain

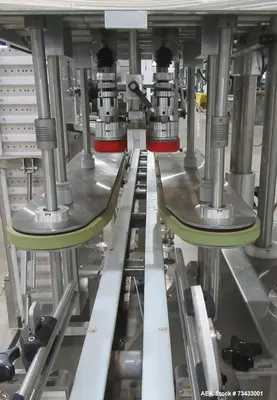

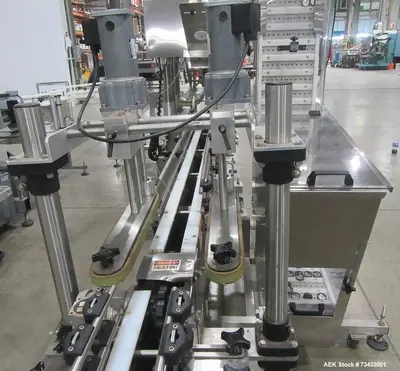

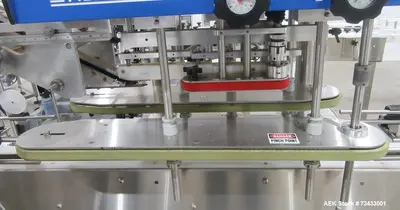

Capper: Computorue NT Automatic Capper

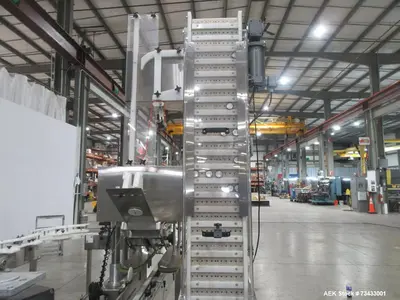

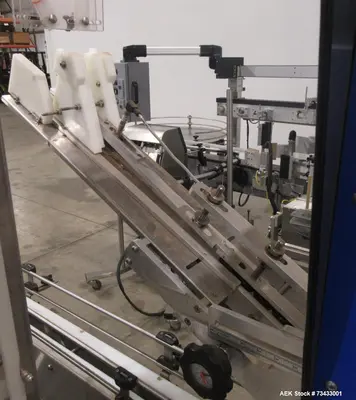

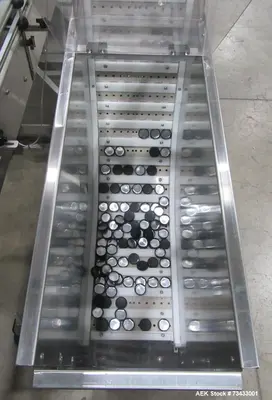

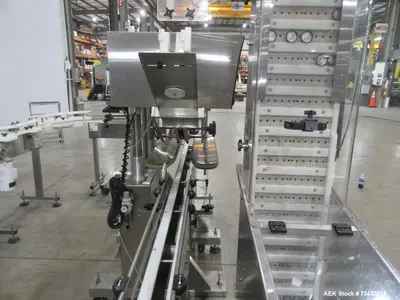

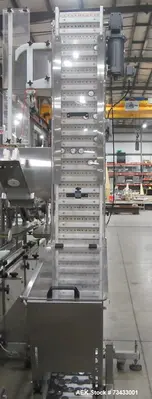

Cap Elevator/Sorter: 5.0LH bulk

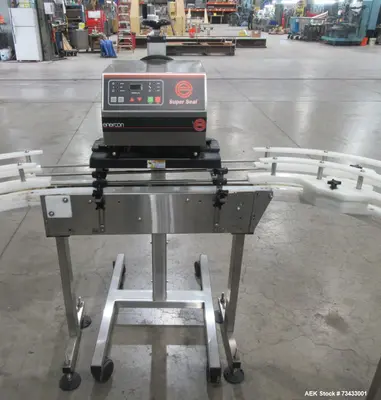

Sealing: Enercon Super Seal 75, air-cooled

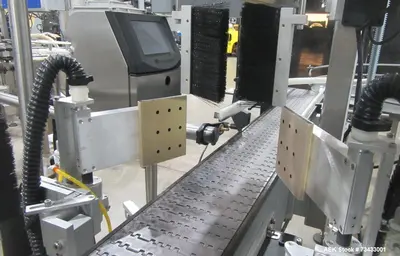

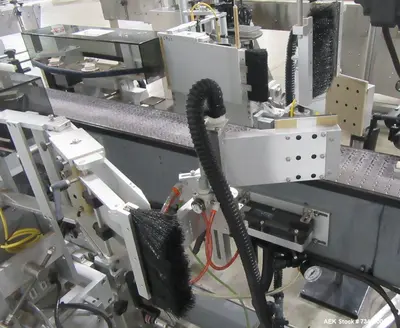

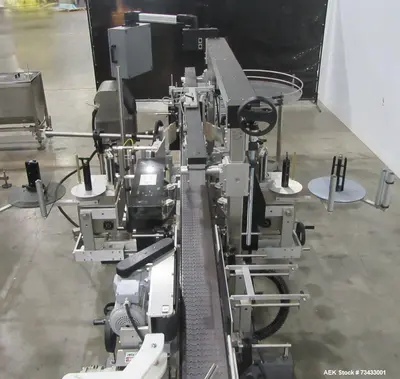

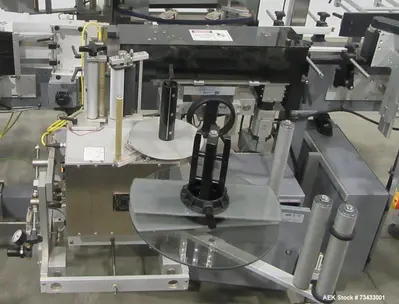

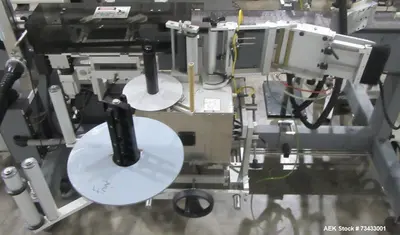

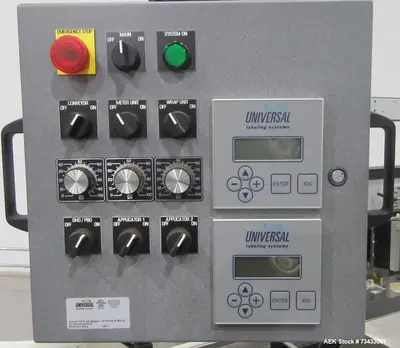

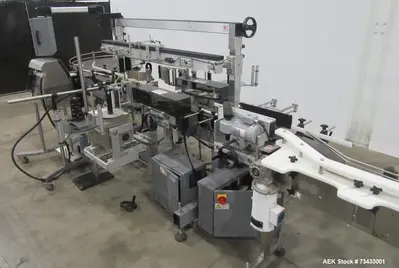

Labeler: Universal CP-1000 front & back with wrap station

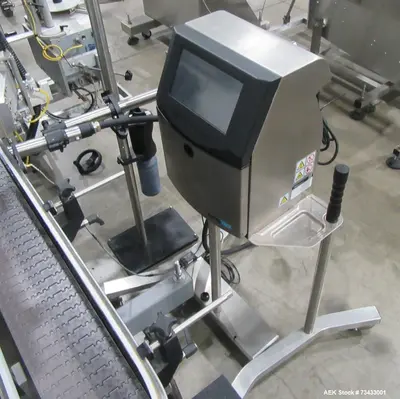

Coder: Video Jet 1220
Container Size Range:
Height: 1-1/2" to 15"
Width: 1/2" to 7"
๐งด Typical Applications
Beverage filling (juices, teas, flavored waters)
Cleaning solutions and household chemicals
Personal care products (shampoos, body wash)
Industrial liquids (lubricants, solutions)
Nutraceuticals and liquid supplements
๐ฆ Products This Line Is Ideal For
Liquid detergent bottles
Hand sanitizer containers
Juice or iced tea jugs
Shampoo or conditioner bottles
Chemical solution packaging
Essential oil blends
Liquid soap bottles
Engine oil containers
Household spray bottles
Nutritional drink bottles
