USED NIRO F100

Manufacturer Information:

Manufacturer: GEA Niro

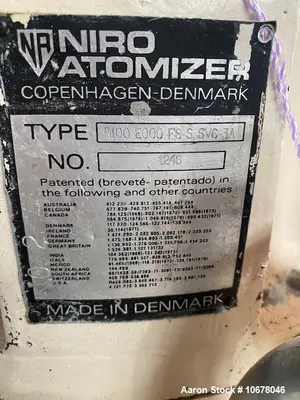

Model: Type F100 E000 FS S SVC 3A

Serial Number: 1246

Equipment Type: Centrifugal Atomizer Head for Rotary Spray Dryer

Condition: Used

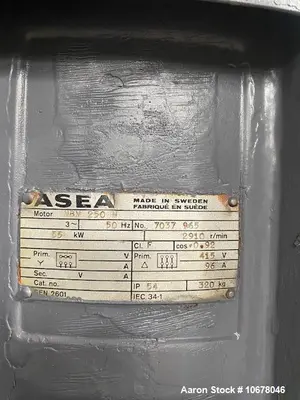

Motor Power: Approx. 82.5 HP / 55 kW

Material Construction: 304 Stainless Steel

Max Atomizer Speed: Up to 25,000 RPM

Description:

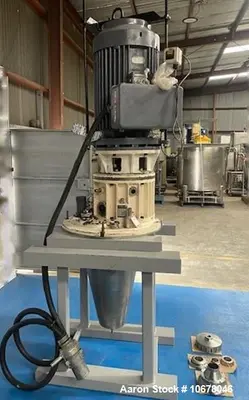

This used GEA Niro centrifugal atomizer (Type F100 E000 FS S SVC 3A) is a high-performance rotary spray dryer head engineered for precision droplet formation in industrial drying systems. Capable of handling up to 10 kg/h of evaporated water, it supports inlet temperatures as high as 350°C and processes both aqueous and solvent-based feedstocks. Built with a 304 stainless steel drying chamber and integrated cyclone separation, this unit is designed for consistent performance, even in demanding thermal applications. Driven by a powerful 82.5 HP (55 kW) motor, this atomizer delivers reliable particle size control for powders and granulates.

Specifications:

Model: F100 E000 FS S SVC 3A

Serial Number: 1246

Atomizer Type: High-speed rotary centrifugal

Motor: Approx. 82.5 HP / 55 kW

Speed: Up to 25,000 RPM

Throughput: Up to 10 kg/h of evaporated water

Inlet Temperature: Rated up to 350°C

Construction: 304 Stainless Steel drying chamber

Separation System: Integrated cyclone separator

Feed Compatibility: Aqueous and solvent-based solutions

Applications:

Pharmaceutical powder production

Nutraceutical spray drying

Dairy and food ingredient drying

Ceramic and catalyst material processing

Chemical fine powder creation

Solvent-based compound drying

Specialty polymers and resins

Flavor and fragrance encapsulation

Battery material drying

Biotechnology and fermentation products

What might this be used for:

Atomizing liquid feeds into fine droplets for rapid drying

Creating free-flowing powders from heat-sensitive materials

Producing uniform particles from pharmaceutical solutions

Drying emulsions, suspensions, or solutions for food or chemical use

Converting active pharmaceutical ingredients (APIs) into dry forms

Processing lab-scale or pilot plant batches for R&D

Encapsulating flavors, vitamins, or proteins in spray-dried powders

Developing custom powders with controlled particle size and solubility

Supporting small- to mid-scale production of fine chemical powders

Drying high-value or reactive compounds under controlled conditions
