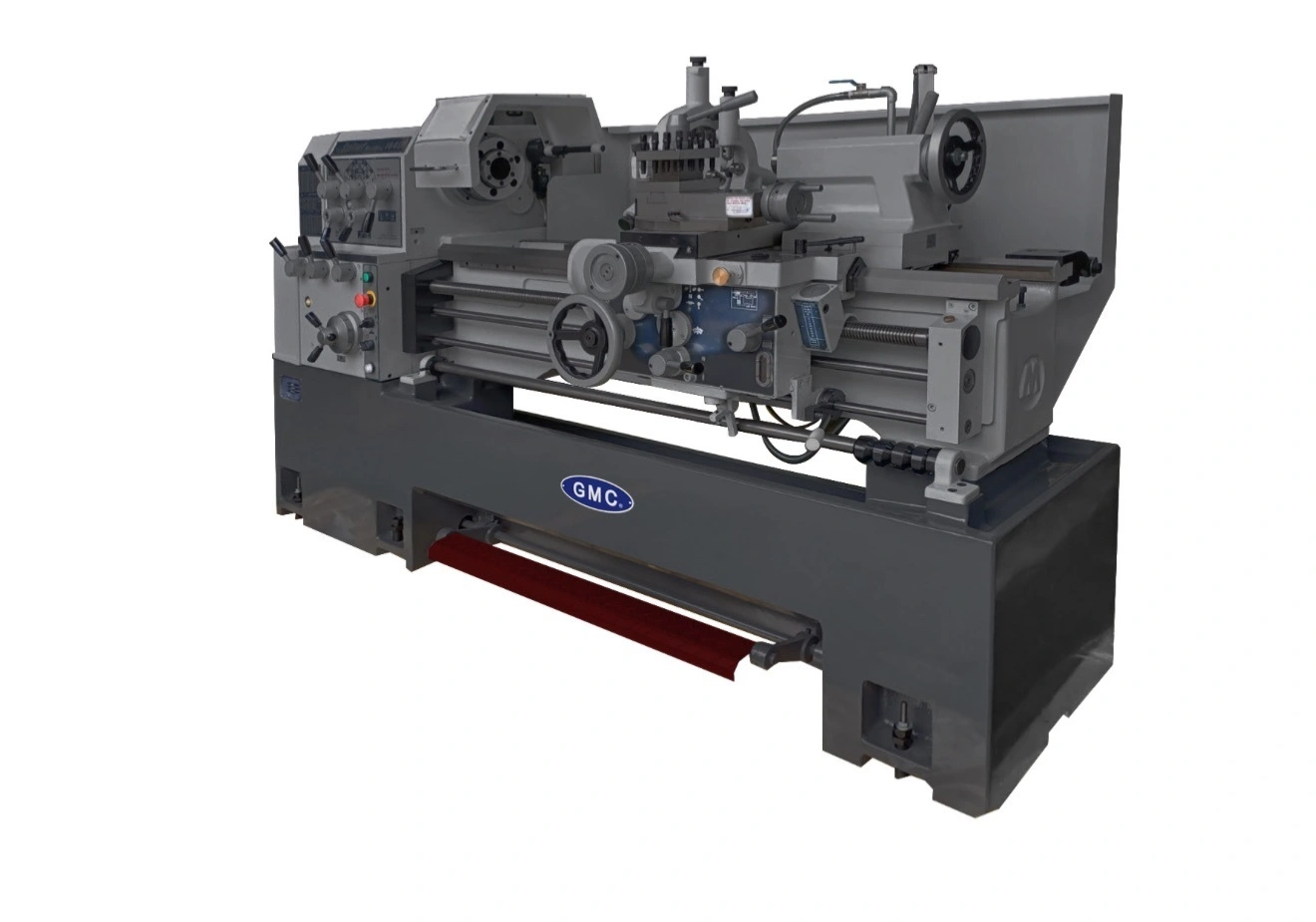

NEW GMC GML 2190T

GMC GML-2190T #7720

Machine Standard Features and Equipment:
· Made in Taiwan
· Meehanite casting – high performance cast iron
· ISO 9001 certified
· Large spindle bore 3-1/8”
· Heavy Duty spindle D1-8
· Heavy Duty guideway width 12”
· Spindle speeds from 40-2,000 rpm, 12 speeds
· Threading and feeding rate change without changing gears
· Spindle is balanced, hardened and precision ground
· Spindle is supported at 3-point by high precision bearings
· All gears and shafts are hardened and precision ground
· Guideways induction hardened and precision ground
· Automatic lubrication system in headstock and feed box
· One year industrial warranty for parts
Standard Equipment (free) for Lathes # GML-2160T & GML-2190T:
· Free CARMAR DRO, installed
· Automatic kick-out longitudinal carriage stop system
· 10” 3-jaw chuck with top reversible jaws, direct mount
· 16” Face plate
· 9” steady rest with roller jaws
· 4” follow rest with roller jaws
· Removeable gap
· 4-way tools post
· Foot brake
· LED Work light
· coolant system
· full length rear splash guard
· Dead centers
· Thread chasing dial
· Reducing sleeve MT6/MT5 for spindle
· Tool box and leveling pads
Specifications
Max. swing over bed 20-1/2”
Max. length of workpiece 90”
Max. swing over cross slide 13”
Max. Swing in gap 29-1/8”
Width of Bed 12”
Effective length in gap to spindle 6”
Effective length in gap to chuck jaws 3-1/2”
Spindle bore 3-1/8” , D1-8
Taper of spindle center M.T.# 6 w/ reducing sleeve MT6/MT5
Spindle speeds 40-2,000 rpm / 12 steps
Longitudinal feeds 0.002-0.03 IPR, 35 kinds
Cross feeds 0.0008-0.011 IPR, 35 kinds
Inch threads 4-56 TPI, 36 kinds
Metric threads 0.5-7.0 mm ,17 kinds
Max. travel of top slide 5”
Max. travel of cross slide 11”
Spindle length w/o chuck 17”
Leadscrew length X TPI 1-1/4” x 4 TPI
Diameter of tailstock quill 2-3/4”
Max. travel of tailstock quill 5-7/8”
Taper of tailstock quill center M.T. #4
Main motor 7-1/2HP, 220V or 440V, 3 phase
Amperage Draw 220V/ 35A , 440V/20A
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 2Gal coolant
Machine Oil # 30 weight Machine oil, 5 Gallons
Machine weight, approx. LBS
5,150 LBS
Overall dimensions, LxWxH
Shipping dimensions: LxWxH
110” x 38” x 66”
140” x 38” x 66”
