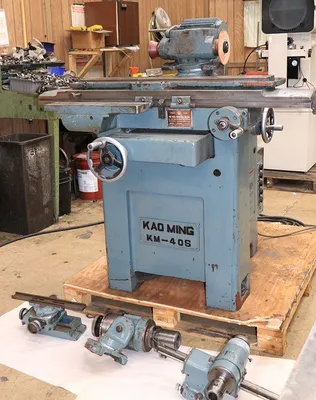

USED 1980 KAO MING KM-40S
Overview
Kao Ming Model 40S Tool and Cutter Grinder, 10" Swing, 27.5" C-C, 1Hp Motorized Wheel Head, 2,600-3,700-6,200 Wheel Speeds, Kao Ming & K.O. Lee Non-motorized Workheads, K.O. Lee Draw Bar, Helical Ginding Attachment, New 1980.
Specs
1-(used) Kao Ming Model 40S Tool and Cutter Grinder, New 1980.
SPECIFICATIONS:
Swing over table....................................... 10"
Distance between centers............................. 27.5"
Distance between tailstock and workhead................ 22"
Workhead tapers................................... #50/#5MT

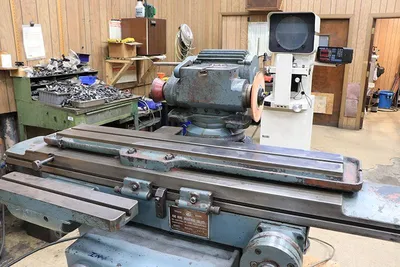

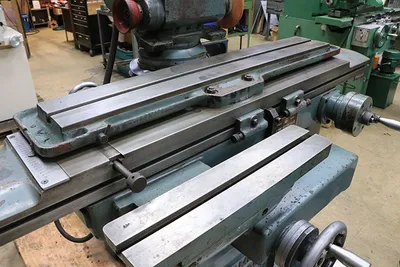

Table;
Working surface........................ 5-5/16" x 37-1/2"
Longitudinal movement................................ 16"
Swivelling angle.................................... 180°
Table graduations for taper grinding............... ± 10°
Graduations for table swivel....................... ± 60°

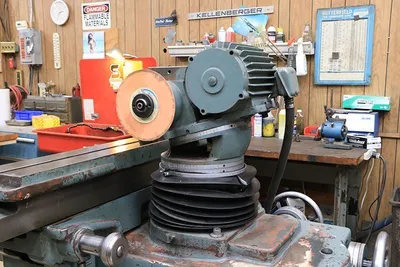

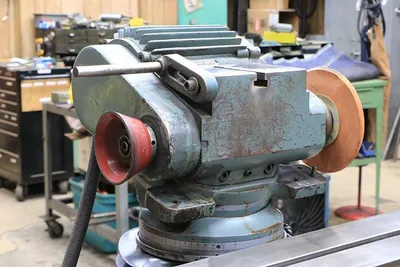

Wheel head;
Cross travel of wheel head........................... 10"
Vertical travel of wheel head........................ 10"
Swivels............................................. 360°
Tilts........................................... 30(±15)°
Distance between spindle center and table....... 2" – 12"
Grinding wheel speeds............ 2,600, 3,700, 6,200 rpm
Grinding wheel motor................................. 1Hp
Dimensions (approx.).................... 53"W x 51"D x 58"H
Weight (approx.)................................. 2,550 lb.
Equipped With
EQUIPPED WITH:
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR
WORKHEAD, SWIVELS IN TWO PLANES
NO. 50 TAPER & No. 5 MT TAPERS
HELICAL GRINDING ATTACHMENT
SET OF MATCHING TAILSTOCKS
LARGE SINGLE INDEPENDENT TAILSTOCK
TABLE MOUNTED WHEEL DRESSER
CAMS FOR HELICAL GRINDING ATTACHMENT
WHEEL GUARDS
WHEEL ARBORS, HUBS & WHEELS

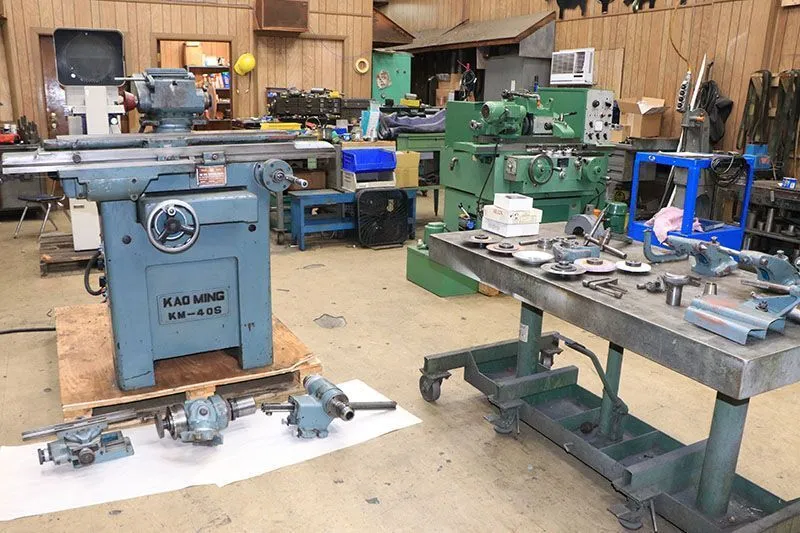

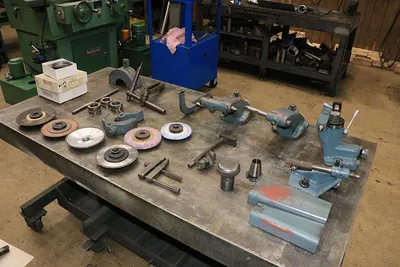

OTHER ACCESSORIES AS SHOWN IN PHOTOS
