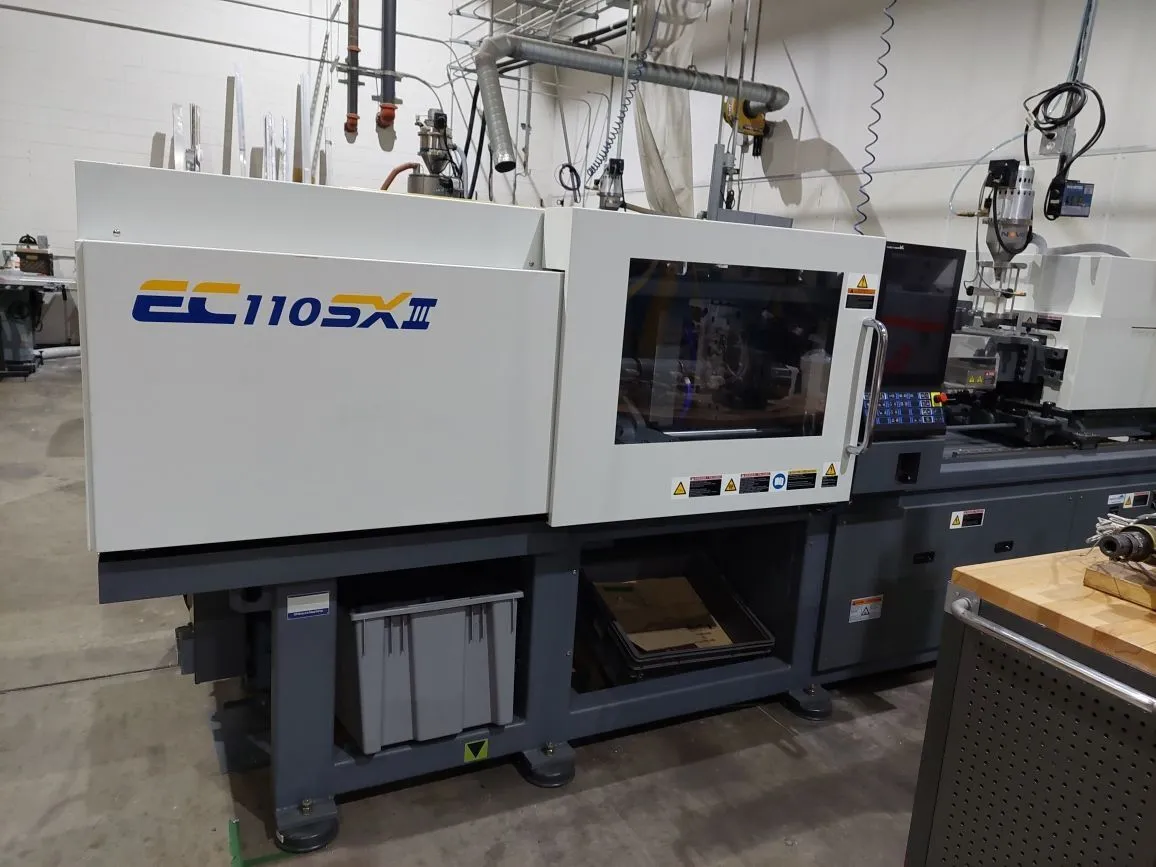

USED 2023 Shibaura Machine EC110SXIIIV70-U34 4B
Overview
Specifications
| Type | All Electric | All Electric |
|---|---|---|
| Clamping Force Tonnage | 110 T | 99.79 t |
| Barrel Code | 4B | 4B |
| Shot Volume (PS) | 8.1 oz | 229.9 g |
| Shot Volume (PE) | 6.5 oz | 184.8 g |
| Screw Diameter | 1.77" | 44.958 mm |
| Maximum Injection Pressure | 22900 psi | |
| Maximum Holding Pressure | 22900 psi | |
| Screw Speed STD | 285 rpm | 285 RPM |
| Screw Torque STD | lbf・ft | lbf・ft |
| Plasticizing Capacity (PS) STD | 1.2 oz | 34 g |
| Nozzle Touch Force | 2 T | 1.814 t |
| Tie Bar Distance H | 18.1" | 459.74 mm |
| Tie Bar Distance V | 16.1" | 408.94 mm |
| Platen Dimension H | 26" | 660.4 mm |
| Platen Dimension V | 24" | 609.6 mm |
| Clamp Stroke | 13.8" | 350.52 mm |
| Maximum Daylight | 35.4" | 899.16 mm |
| Mold Height Min | 7.71" | 195.83 mm |
| Mold Height Max | 21.7" | 551.18 mm |
| Ejector Force | 3.3 T | 2.994 t |
| Ejector Stroke | 3.54" | 89.916 mm |
| Power supply Volts | 230 | 230 |
| Main Breaker Electric Capacity | 100 | 100 |
| Heater Capacity | 11.9 kw | 11.9 kW |
| Injection Orientation | Horz | Horz |
| Hours | 537 hr. | 537 hr. |
| Machine under power | Under Power no Mould in Machine | Under Power no Mould in Machine |
| Control | CNC (INJECTVISOR V 70) | CNC (INJECTVISOR V 70) |
| Dimensions | 16.1 x 4.2 x 5.4 FT | 16.1 x 4.2 x 5.4 FT |
| Weight | 9400 lbs | 9400 lbs |
Equipped With
injection Molding Machine Configuration
1. Hydraulic Core Pull – Dual Program with Electrical Interface
2. Dual Air Blow
3. Pneumatic Core Pull – Single, Timer Only
4. SPI Robot Interface Receptacle (50-pin / Euromap 67)
5. Programmable Output Signals – 6 Total
6. MachiNetCloud IIoT Connection – Capable
7. Certified Machine Model: EC110SXIIIV70-U34-4B (8.11 oz shot size)
8. Transformer – Not Required
9. Pneumatic Mold Valve Gate (1 Zone)
10. Vibration Mounting Pads
11. 3-Piece Free Flow Screw Tip (in lieu of standard)
12. Screw Anti-Wear Single Flight Design & Tungsten Carbide Barrel (in lieu of standard)
13. Screw & Barrel Conversion Kit – From 4B to 2Y
14. Intrusion Circuit
