Federal 32Ton No.32 Fly Wheel-type OBI Press, Air Clutch & Brake, 2" Stroke, 10" Shut Ht., 2" Ram Adjustment, 15" x 24" Bed, 8" Throat, 100-300 SPM, 5HP/230/460, Reeves Variable Speed Drive, Dual Palm Buttons, Inch/Single/Continuous/Jog and Bar Modes, Brake Monitor, Light Curtain, New 1983.
| Tonnage | 32 T | 29.03 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 10" | 254 mm |
| Bed W | 15" | 381 mm |
| Bed L | 24" | 609.6 mm |
| SPM | 300 strokes/min. | 300 strokes/min. |
| Air Clutch (Yes/No) | 'Yes' | 'Yes' |
| Type (BG, Double Action, FW) | 'Flywheel' | 'Flywheel' |
| Crank (Single/Double) | 'Single' | 'Single' |
| Weight | 6,000 lb. | 6,000 lb. |

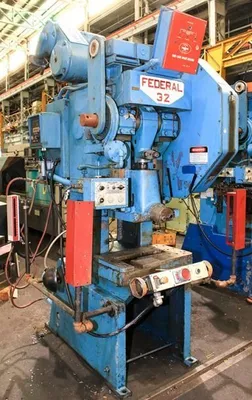

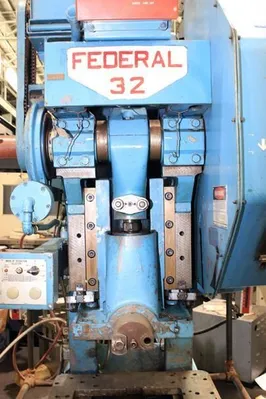

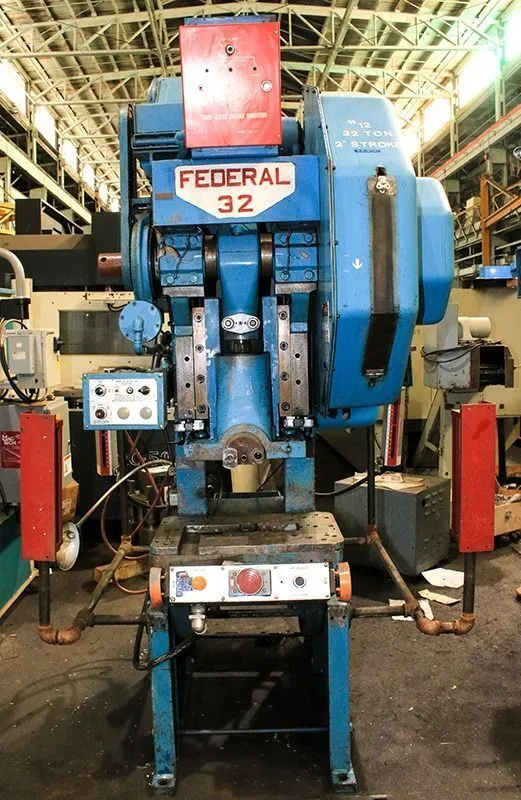

1-(used) 32 Ton Federal #32 Flywheel-Type OBI Press, New 1983.
SPECIFICATION:
Rated capacity........................... 32 ton
Stroke....................................... 2"
Shut height................................. 10"
Ram adjustment............................... 2"
Throat....................................... 8"
Strokes per minute...................... 100-300
Bed area.............................. 24" x 15"
Ram size.............................. 15" x 12"
Motor.......................... 5Hp/3/60/230/460
EQUIPPED WITH:
Air clutch & brake

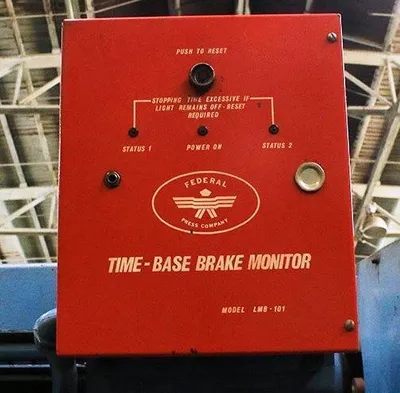

Federal time-base brake monitor model LMB-101

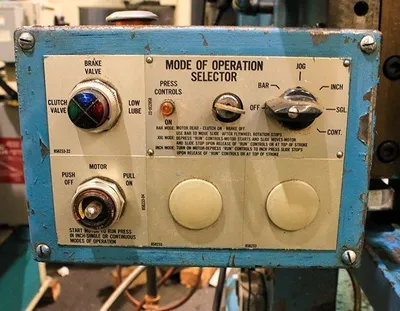

Inch/single/continuous/jog and bar mode

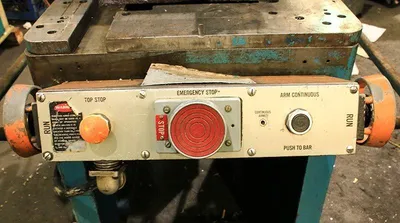

Dual palm button operation
Reeves variable speed drive
Auto-lubrication

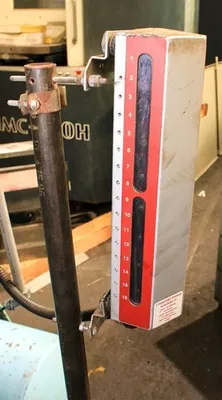

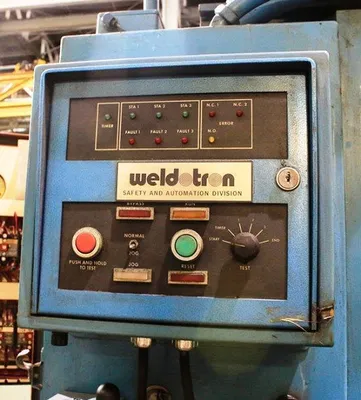

Shadow light curtain
