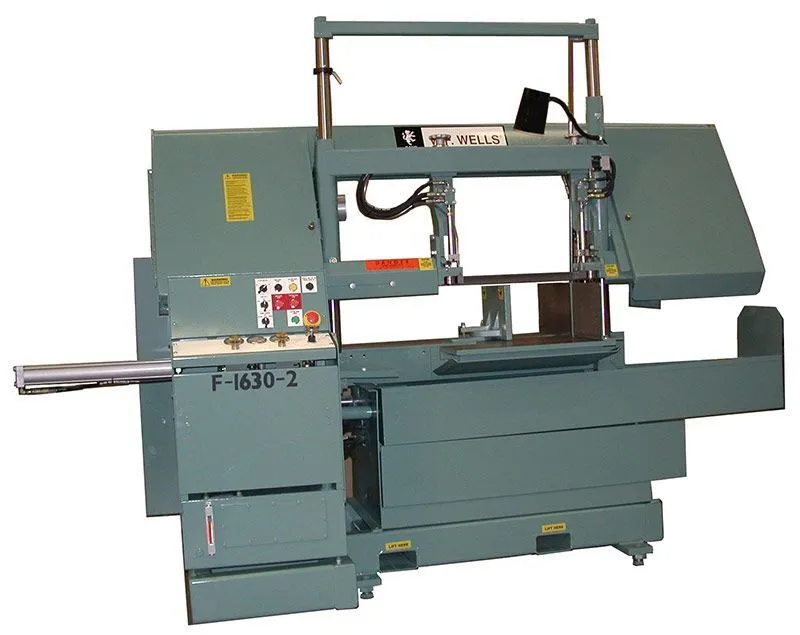

NEW W.F. WELLS F-1630-2
Overview
2025 W.F. WELLS F-1630-2
In 1925 William Franklin Wells founded the Wells Manufacturing Corp. to make meat-cutting bandsaws. In 1928 the company introduced a horizontal metal cutting bandsaw, which would later be claimed to be the world's first such saw.
At some point Mr. Wells sold his interest in the business. The new owners emphasized the Wellsaw brand, which had already been in use; the official company name remained the same. In 1948 Mr. Wells formed another company called W. F. Wells & Sons, which also made metal cutting bandsaws.
In 1985 Wells Manufacturing Corp. got into financial trouble and changed hands. In 1991 the new owners of Wells Manufacturing Corp. purchased the assets of W. F. Wells & Sons, and merged the two companies, with the merged company being named W.F. Wells, Inc. The company is still in business today manufacturing horizontal metal cutting band saws.
Specs
Specifications
Capacity .......................... Rectangular at 90º 16" High X 30" Wide, Round at 90º 16" Diameter
Rectangular at 45º 16" High X 13" Wide, Round at 45º 13" Diameter
Weight Capacity .............. 5,000 lbs.
Blade Speed ................... 60-500 SFPM
Blade Size ....................... 1¼" X .042" X 16'8"
Sawing Feed ................... Variable, Hydraulic
Blade Guide .................... Rollers and Carbide Side Blocks
Blade Tension ................. Hydraulic Order
Bandwheel Size .............. 20" Voltage Number
Vise ................................. Hydraulic, Full Stroke, 8½” 208-60-3 0010615
Blade Drive ..................... 7½ HP, AC Vector Drive 230-60-3 0010616
Sawing Force .................. 0-750 lbs. 460-60-3 0010617
Coolant Capacity ............. 15 Gallons 575-60-3 (5 HP) 0010618
Hydraulic Capacity .......... 20 Gallons
Hydraulic Drive ................ 2 HP Motor
Work Height .................... 35"
Shipping Weight .............. 2,700 lbs.
Electrics .......................... Wired to NFPA 79 Machine Tool Standards
Machine Dimensions ....... 118" Length x 52" Width x 88" Height
Equipped With
Description Order Number Price
Automatic Length Stop Assembly 0056707 $500.00
Discharge Worktable, 20" W X 48" L with Stock Stop 0053201 $3,225.00
Discharge Worktable, 30" W X 48" L with Stock Stop $4,350.00
Work Light, Wired In 0052021 $400.00
Blade Break/Stall Switch 0056040 $725.00
Hydraulic Chip Conveyor, Auger Style 0056036 $5,750.00
Hydraulic Holddown, Saw Vise 0056030 $3,450.00
Laser Shadow Line 0052220 $3,225.00
High Speed Drive & Guides (1" Blade) 400-3000 SFPM 0051037 $8,350.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight 0050247 $1,950.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight 0050250 $3,025.00
31” X 5’ X 5,000 lbs. Cap. Distributed Weight 0050258 $3,250.00
31” X 10’ X 10,000 lbs. Cap. Distributed Weight 0050259 $5,550.00
21" x 10' Powered Conveyor, Electric 0056204 $11,450.00
31” Powered Conveyor Consult Factory for Pricing
