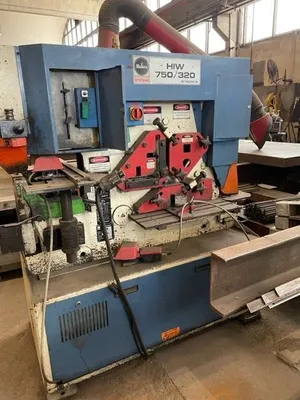

USED 1999 MUBEA HIW 750/320

MUBEA HYDRAULIC IRONWORKER MODEL HIW 750/320
FOB: NORTHERN CALIFORNIA

PUNCH:
Pressure………………………………………………………………… 82 Tons
Diameter Thru Thickness……………………………1-1/4” thru 13/16”
Channels in Flange…………………………………………4-15
Beams in Flange…………………………………………………4-15
Channels in Web…………………………………………………3-15
Beams in Web……………………………………………………… 3-15

Angle Shear:
Angle 90 deg………………………………………………………….6”x6”x1/2”
Angle 45 deg………………………………………………………….3”x3”x5/16”
Working Height…………………………………………………….39-3/4”

Bar Shear:
Round Bar………………………………………………………………2”
Square Bar……………………………………………………………1-3/4”

Plate Shear:
Flat Bars…………………………………………………………………18-5/8”
Or……………………………………………………………………12-3/4”

Coper/Notcher
With Rectangular Notching Tool
Plates……………………………………………………………………………………15/32”
Angles in Flange…………………………………………………………3×7/16”
Notching Depth………………………………………………………………2-3/4”

Stroke(Punch) infinitely variable…………………………………0-2-3/4”
Number of Strokes(punch) at full stroke…………………per min….11
Number of Strokes(punch) at ¾”…………………………… per min….40
Motor, Voltage 208-240/440-480, 60 Hz………………………10 HP
Oil Capacity………………………………………………………………………… 24 gallons
Machine Dimensions: 60-1/2” x 29-1/2”x65”
Weight: 4,035

EQUIPPED WITH:

Electric Length Gauge
Punches & Dies
