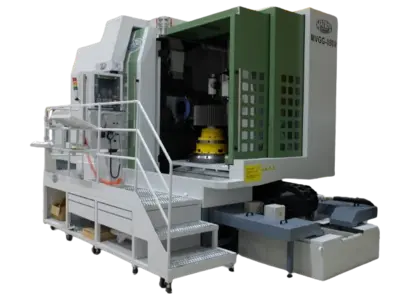

NEW MATRIX GV-8040 Vertical Gear Grinding Machine

Toolink Engineering is excited to present the latest addition to our lineup: the Matrix GV-8040 Vertical Gear Form Grinding Machine. Designed to meet the demands of modern gear manufacturing, this machine offers unparalleled versatility and precision. Capable of producing large gears with exceptional accuracy, the Matrix GV-8040 is the perfect solution for a wide range of applications in industries such as aerospace, automotive, and more. What sets this machine apart is its ability to grind hob cutters, further expanding its utility and making it a truly indispensable tool in any machining arsenal. With its advanced technology and robust construction, the Matrix GV-8040 delivers superior performance and reliability, ensuring optimal results with every operation.

Max workpiece outside diameter - 800mm
Min workpiece root diamenet - 50mm
Max Module - M20/ DP1.27
Teeth Range - 9-999
Max Tooth Depth - 45mm
Helix Angle - +/- 45 degrees
Max grinding slide travel - 400(450)mm
Max workpiece slide travel - 400mm
Tailstock center height above rotary table - 600mm-1250mm
Min dressable diameter of grinding wheel - 260mm
Max wheel outside diameter - 400mm
Max grinding wheel thickness - 70mm
Max RPM of grinding spindle - 4,000 RPM
CNC controller - Fanuc 31i
