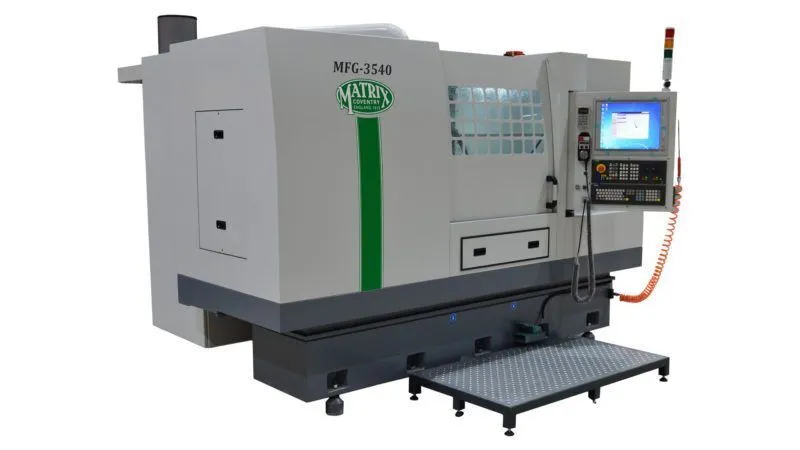

NEW 2025 MATRIX GH-3540 220G Gear Grinder
Overview
Description
The Matrix GH-3540 220G Gear Form Grinding Machine applies FANUC controls and a high-speed grinding spindle, through the Matrix developed intelligent conversations window the software supports the complete machining process. The machine can generate an NC program automatically through input parameters and the setting of grinding conditions via the conversation, improving efficiency and ease of programming for the machine operator.
Specifications
| Max Gear Dia. | 400 mm | 15.748" |
|---|---|---|
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 162" X 151" x 93" | 162" X 151" x 93" |
| Weight | 18,700 | 18,700 |
Grinding Wheel Spindle Motor - 220G
Min/Max workpiece outside diameter - 30mm / 400mm
Max Module - M8/ DP3.2
Teeth Range - 9-999
Max Tooth Depth - 27mm
Helix Angle - +/- 45 degrees
Min distance between centers - 80mm
Max distance between centers - 750mm
Min wheel root diameter - 210mm
Max wheel outside diameter - 320mm
Max grinding wheel thickness - 40mm
Max RPM of grinding spindle - 4,000 RPM
CNC controller - Siemens/Fanuc
