USED 2023 JOBS EVER 5
Description

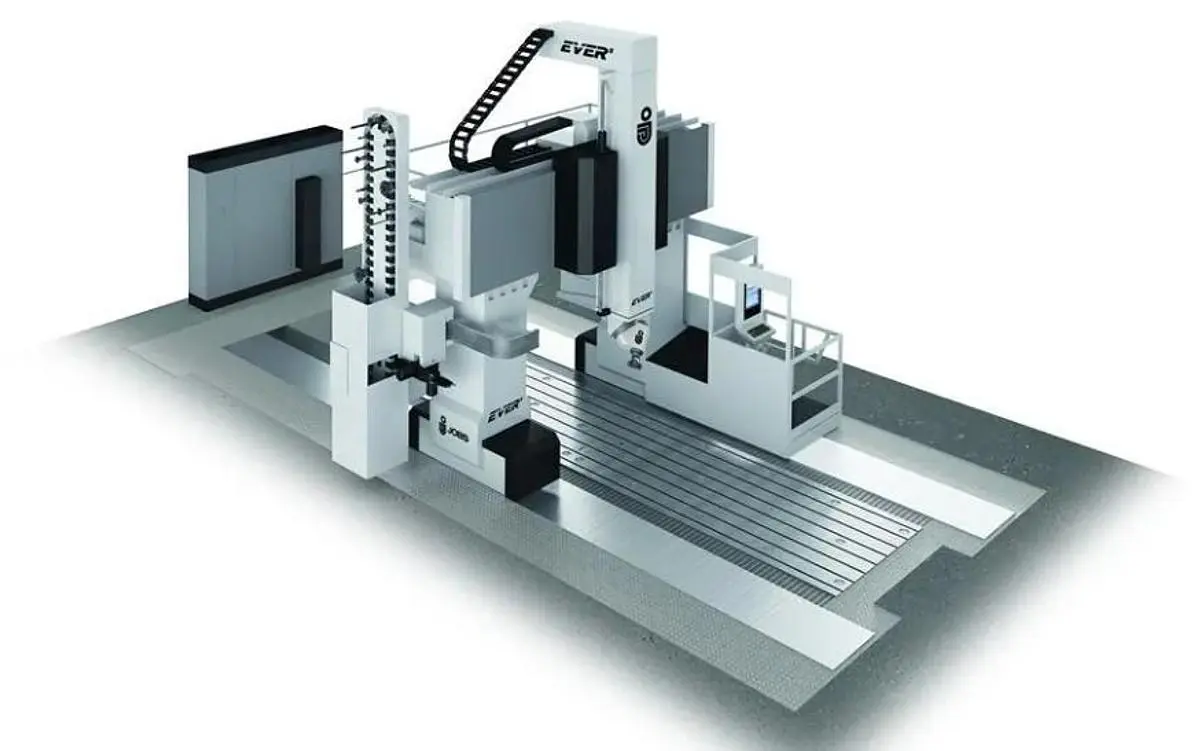

2023 JOBS EVER 5 (DEMO) Machine for Sale: 5-axis hi-speed low-rail gantry machine for immediate release!Fanuc 31i-B5 CNC Control with iHMI 19” Display80 Position ATC (Automatic Tool Changer)Tool Taper: HSK-A100Max Length: 13.8" (350 mm)Single Tool Max Weight: 55.1 lbs (25kg)Floor level X-axis guides with fixed walkable coversCrossbeam structure with multi-triangle sectionDual drive on all linear axesSliding on oversize multi-pads guaranteeing maximum rigidityIncludes 5 interchangeable heads with automatic head changing capabilities (HSK-A100 on All Heads)Continuous BUSS Twist Head T35C (5,000 RPM)Continuous BUSS Twist Head T3K (10 RPM)BUSS 3-axis Power Head T3A (5,000 RPM)BUSS 90-degree Power Head (5,000 RPM)BUSS 45-degree Univeral Head TUNI (5,000 RPM)Two Chip ConveyersThrough Spindle and Flood CoolantRMP60 Renishaw Touch ProbeSurveillance Camera System
Specifications
Manufacturer: Jobs
Model: EVER 5
Year: 2023
Condition: Used
Stock Number: 11207
Spindle speeds: 5,000 rpm
X axis travel: 8,000 mm
Y axis travel: 4,000 mm
Z axis travel: 1,500 mm
Table dimensions: 8,000 x 3,000 x 2,500 mm
Table capacity: 5,000 kg
Spindle taper: HSK-A100
Rapid traverse X/Y/Z: 32 m/min
