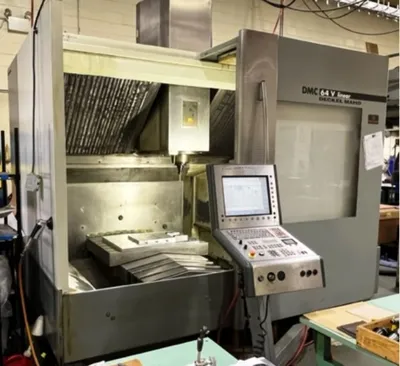

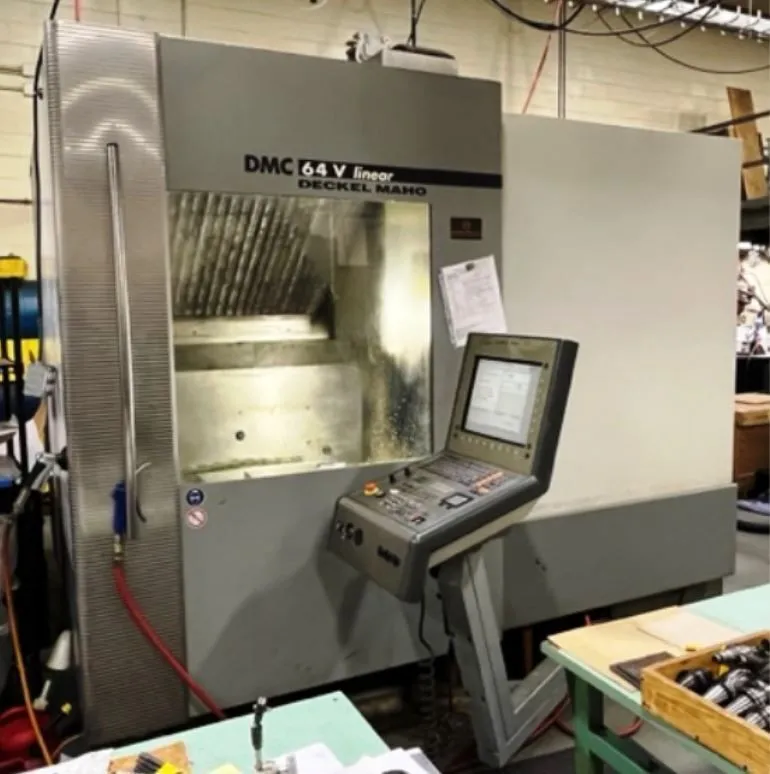

Deckel Maho Model DMC 64V Linear Vertical Machining Center, Heidenhain iTNC-530 3-Axis CNC Control, 25.2"X, 23.6"Y, 19.7"Z, 33.5" x 23.5" Table, CAT40 Taper, 12,000 RPM, 30 ATC, 25 Hp, Rigid Tapping, Chip Auger, Coolant, New 2005.
| X | 25.2" | 640.08 mm |
| Y | 23.6" | 599.44 mm |
| Z | 19.7" | 500.38 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 23.5" | 596.9 mm |
| Table-L | 33.5" | 850.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Heidenhain iTNC-530) | CNC (Heidenhain iTNC-530) |
| Dimensions | 134"L x 98"W x 130"H | 134"L x 98"W x 130"H |
| Weight | 14,300 lb. | 14,300 lb. |
1-(used) Deckel Maho Model DMC 64V Linear Vertical Machining Center, New 2005.
SPECIFICATIONS:
Table size................................. 33.5" x 23.5"
Longitudinal travel (X-axis)....................... 25.2"
Cross travel (Y-axis).............................. 23.6"
Vertical travel (Z-axis)........................... 19.7"
Feed range................................. 0 – 1,575 ipm
Rapid traverse X............................... 2,362 ipm
Rapid traverse Y&Z............................. 1,575 ipm
Max. table load................................ 1,320 lb.

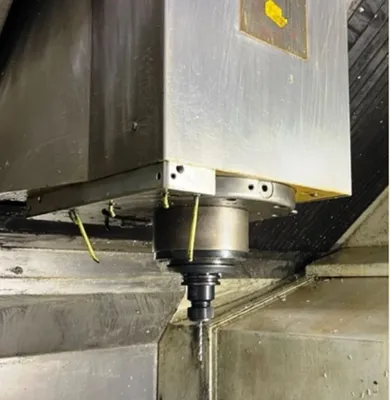

Spindle taper...................................... CAT40
Spindle speed................................. 12,000 rpm
Spindle motor…………….............................. 25/17 Hp
Electrics................................ 3/60/400v/39kVA
Dimensions (approx.)................ 134"L x 98"W x 130"H
Weight (approx.).............................. 14,300 lb.

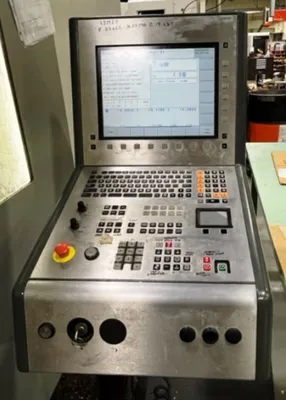

Heidenhain iTNC-530 3-axis CNC Control
Rigid tapping
30-Station automatic tool changer
Chip auger
Coolant system

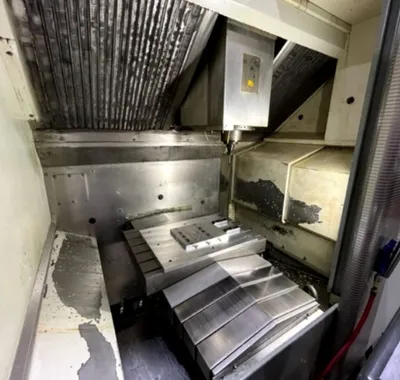

*NOTE - Sub-table in Photos Is Not Included
