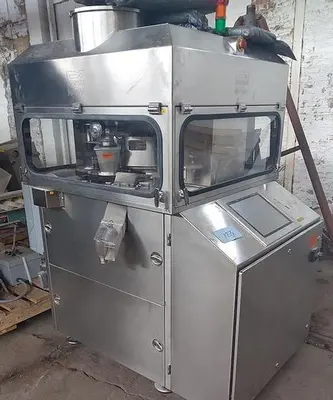

Natoli NP-500 Tablet press - 45 station 328 tooling -recertified by Natoli

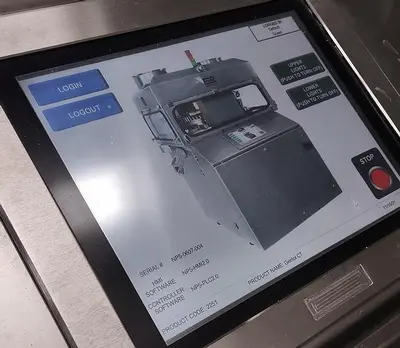

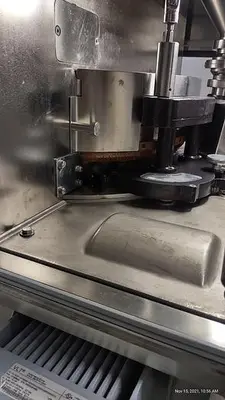

Used Natoli 45 Station Double Sided “D” Tooled Rotary Tablet Press, Model NP-500 with custom Laciny automated product feeder\nSerial NP5-0607-004\n\nManufactured in 2011, is similar to and can accept the same tooling as a Stokes 328 Rotary Tablet Press.\n\nHeavy duty, double sided rotary tablet press equipped with force feed, low level hopper sensors, hardened steel die, auto tablet rejection.\nAllen-Bradley GuardShield safety light curtains, integrated touchscreen PLC controls, auto lubricated punch guides, auto tablet weight controls.\n\nTablet Specifications:\nMaximum round tablet diameter: 7/8” (22.23mm).\nMaximum shaped major axis: 15/16” (23.81mm).\nFilling cams depth of fill range: Shallow: .0625 to .6875” (1.6 to 17.5mm).\nStandard: .21875 to .875” (5.5 to 22mm).\nDeep: .625 to 1.375” (16 to 35mm).\nTablets per minute: 900 to 5,500 (54,000 to 330,000/hour).\n\nMachine features extended compression dwell time, 69% more than standard “D” fill, reducing the need for pre-compression and allowing increased tablet size and weight.\nEquipped with automatic weight control for precise, consistent and accurate tablets.\nPress Specifications: Die diameter: 1-5/16” (33.24mm). Maximum die depth: 1-1/2” (38.1mm).\nPunch barrel diameter: 1-1/8” (28.58mm). Hopper capacity: 1,700” ³. (27,858cm³).\nMachine is constructed in stainless steel and comes with 4 sided Plexiglas doors, with full monitoring, emergency safety switches,and emergency stop controls.\nCapable of running single side machine with precompression.\n\nPower and Specifications\n15 HP, 3/60/460-volt drive, (VFD), 42-1/2 amps.\nrequires 90 psi air, 8.5 cmm vacuum at 76mm of H20.\nDimensions: 68” x 53” x 82” High.\n\nWeight: 7,500 pounds.\nUnit was last used in a large pharmaceutical facility and is available for immediate delivery.
