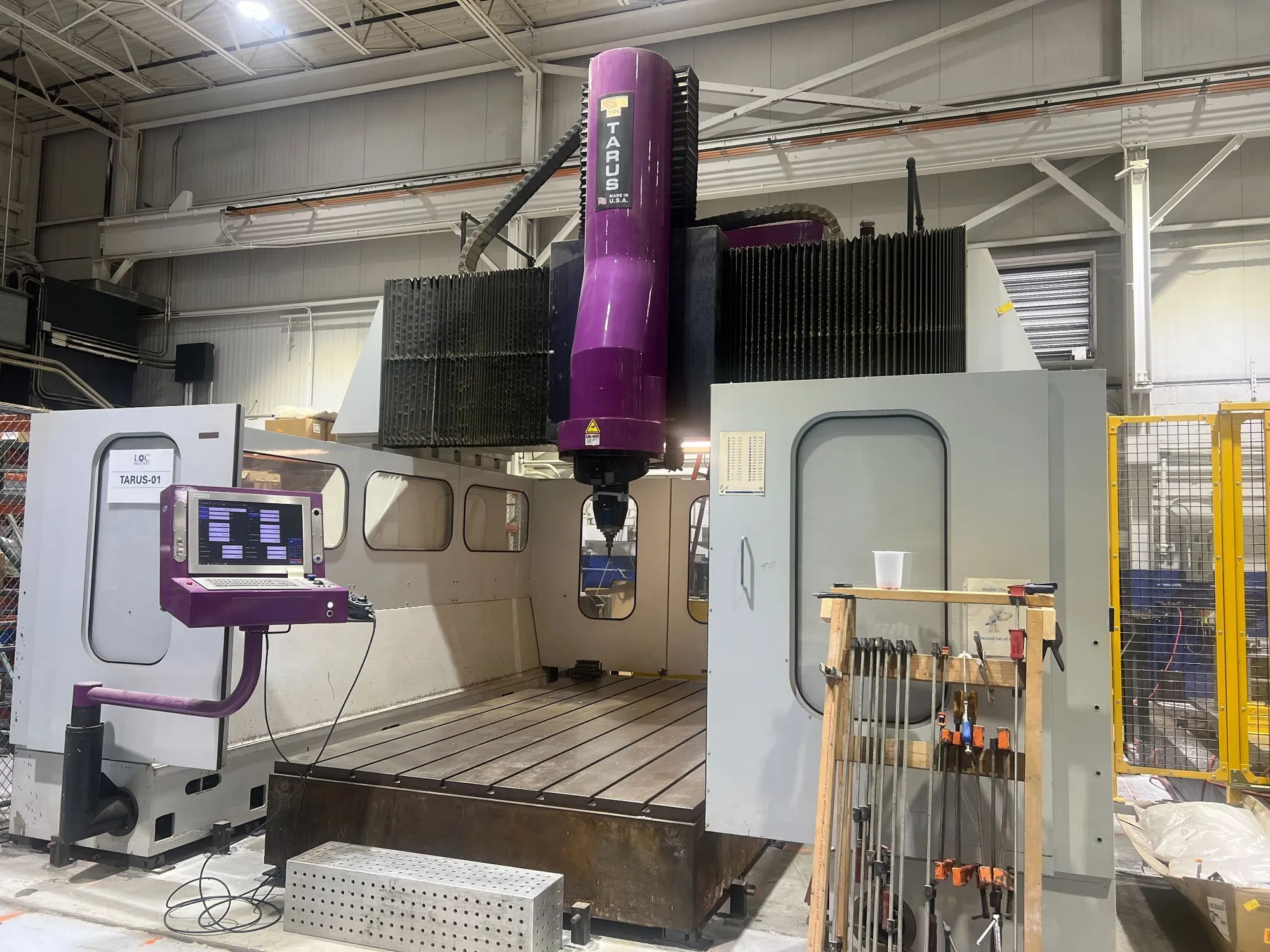

2005 Tarus HSOHTB810 3 + 2 Bridge Gantry Mill, used. Ideal for precise operations, this robust machine from TARUS ensures quality and reliability in vertical machining applications.
| X | 118" | 2,997.2 mm |
| Y | 98" | 2,489.2 mm |
| Z | 43" | 1,092.2 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| Taper | CAT 50 | CAT 50 |
| Table-W | 120" | 3,048 mm |
| Table-L | 87" | 2,209.8 mm |
3 + 2 Axis Head
X Axis Travel: 118"
Y Axis Travel: 98"
Z Axis Travel: 43"
B Axis Rotation: 0 - 360º
A Axis Rotation: 0 - 45º
Spindle Taper: CAT 50
Spindle Speed: 10,000 RPM
Table Size: 120" fb x 87" lr
Foot Pedal for Tool Clamp Release
Spindle Rebuilt in 2024
Chiller Reconditioned in 2024
Preventative Maintenance by Tarus
IN PLANT UNDER POWER FOR INSPECTION
Excellent Condition
Rebuilt Head and upgraded controls: $60,000.00 in cost 2017
Recent PM's: $18,000.00 in cost 2024
