40 Taper, 12000 RPM< Rotary Pallet, Fanuc 180 CNC
| size | 23 X 16 | 23 X 16 |
| X Travel | 23" | 584.2 mm |
| Y Travel | 16" | 406.4 mm |
| Z Travel | 18" | 457.2 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 20 | 20 |
| Taper | 40 | 40 |
| Control | CNC (Fanuc) | CNC (Fanuc) |

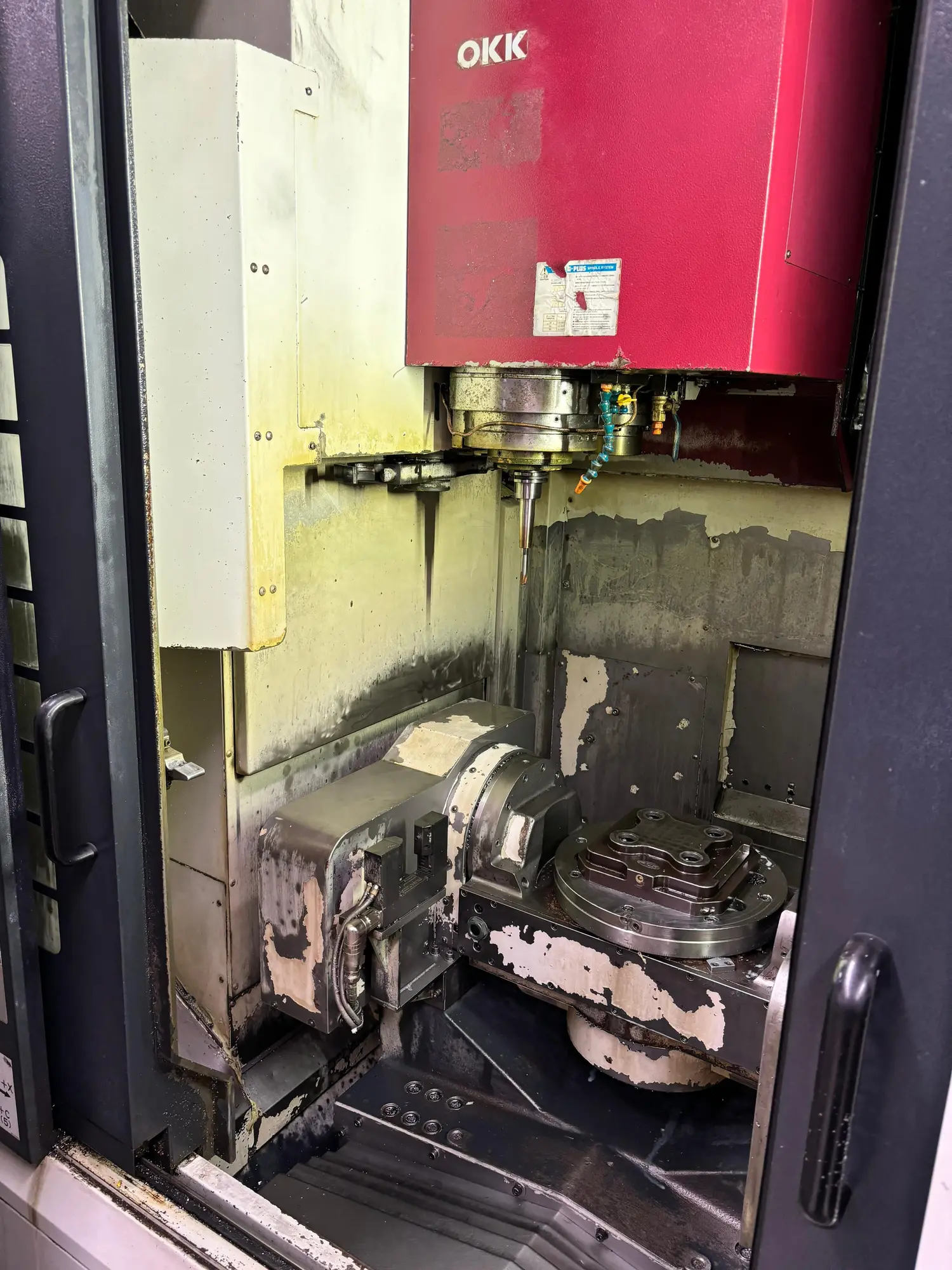

OKK Model VP-400 CNC Vertical Machining Center (2010)
Table Size: 35.4" X 16.1"
Table Capacity: 1,100 Lbs
X-Axis Travel: 23.6"
Y-Axis Travel: 16.1"
Z-Axis Travel: 18.1"
Rapid Traverse Rate (X/Y/Z): 1,890/1890/1417 IPM
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Main Motor: 25 HP
Tool Changer Capacity: 20 ATC
Fanuc 180is-MB Control
Rear Discharge Chip Conveyor
Rotary Pallet
High Pressure Coolant
