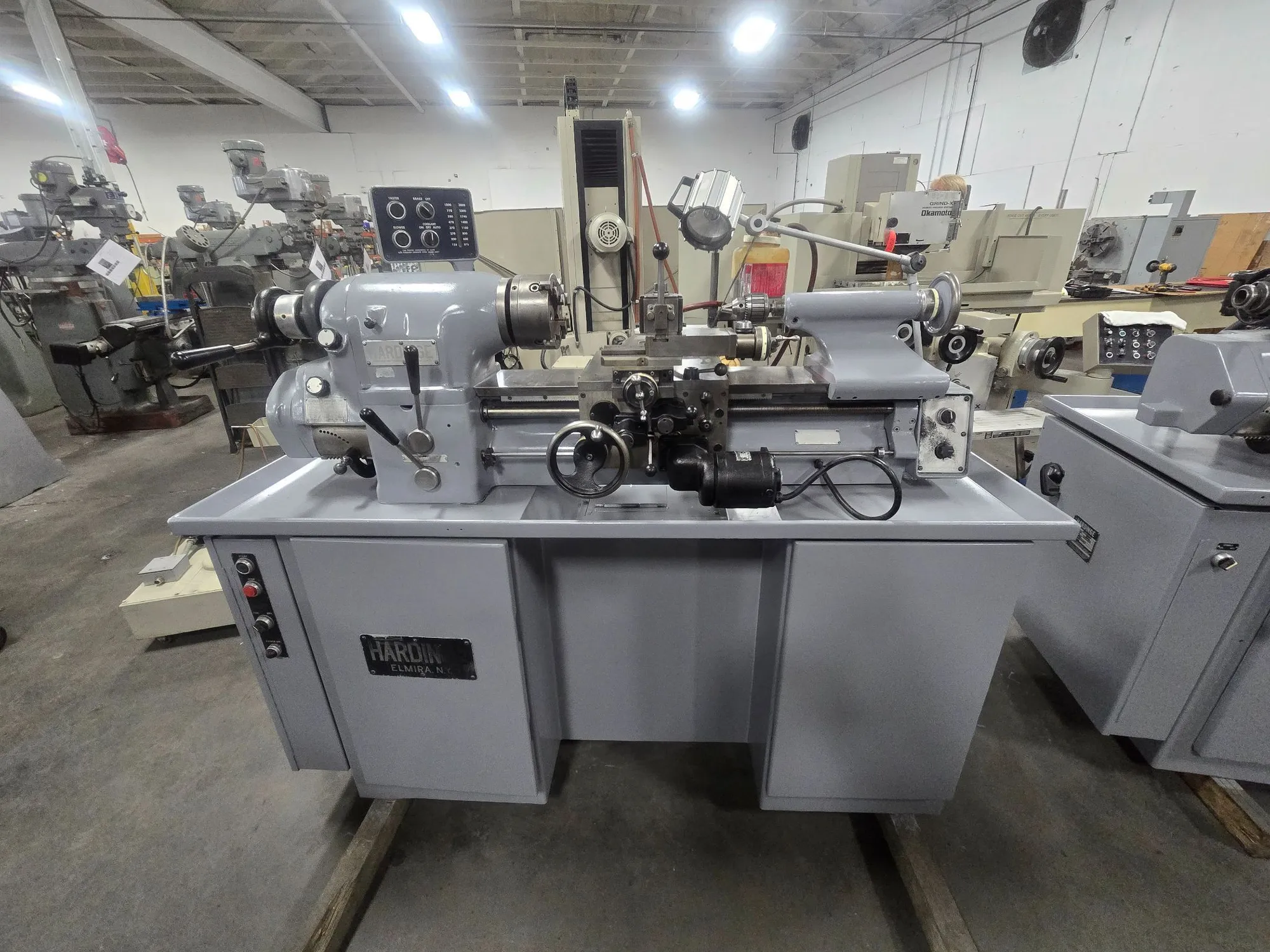

USED HARDINGE HLV-H

Used Hardinge HLV-H Super Precision Lathe: 11" swing, 20" centers, 1.25" spindle bore, 1.5 hp, 3,000 RPM max. Includes 6" 4-jaw chuck, tool post w/holders, power feeds, 5C collet closer, Trava-Dial, and misting system. Ideal for toolroom applications.

Hardinge HLV-H Wide Bed Tool Room Lathe

SPEC SHEET
Max Swing Over Bed: 11″
Max Swing Over Carriage: 9″
Max Swing Over Cross Slide: 5.75″
Compound Slide Travel: 3″
DISTANCE BETWEEN CENTERS
– Tailstock Flush: 18″
– Tailstock Overhung: 20″
Power Feed Range: 0.25 IPM – 7 PM
Longitudinal Feed Rate: 0.31 IPM – 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75″
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25″
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 – 3000 RPM
Spindle Nose: Hardinge Tapered
Power 220 Volts / 60 Hertz / 3 Phase ,
Dimensions 6 Ft. x 3 Ft. x 5 Ft.

Hardinge HLV-H Wide Bed Tool Room Lathe
Inch Threading,
Tailstock,
Tool Post w/Holders,
Power Feeds,
5C Collet Closer,
Trava-Dial,
6” 3-Jaw Chuck
Misting System
