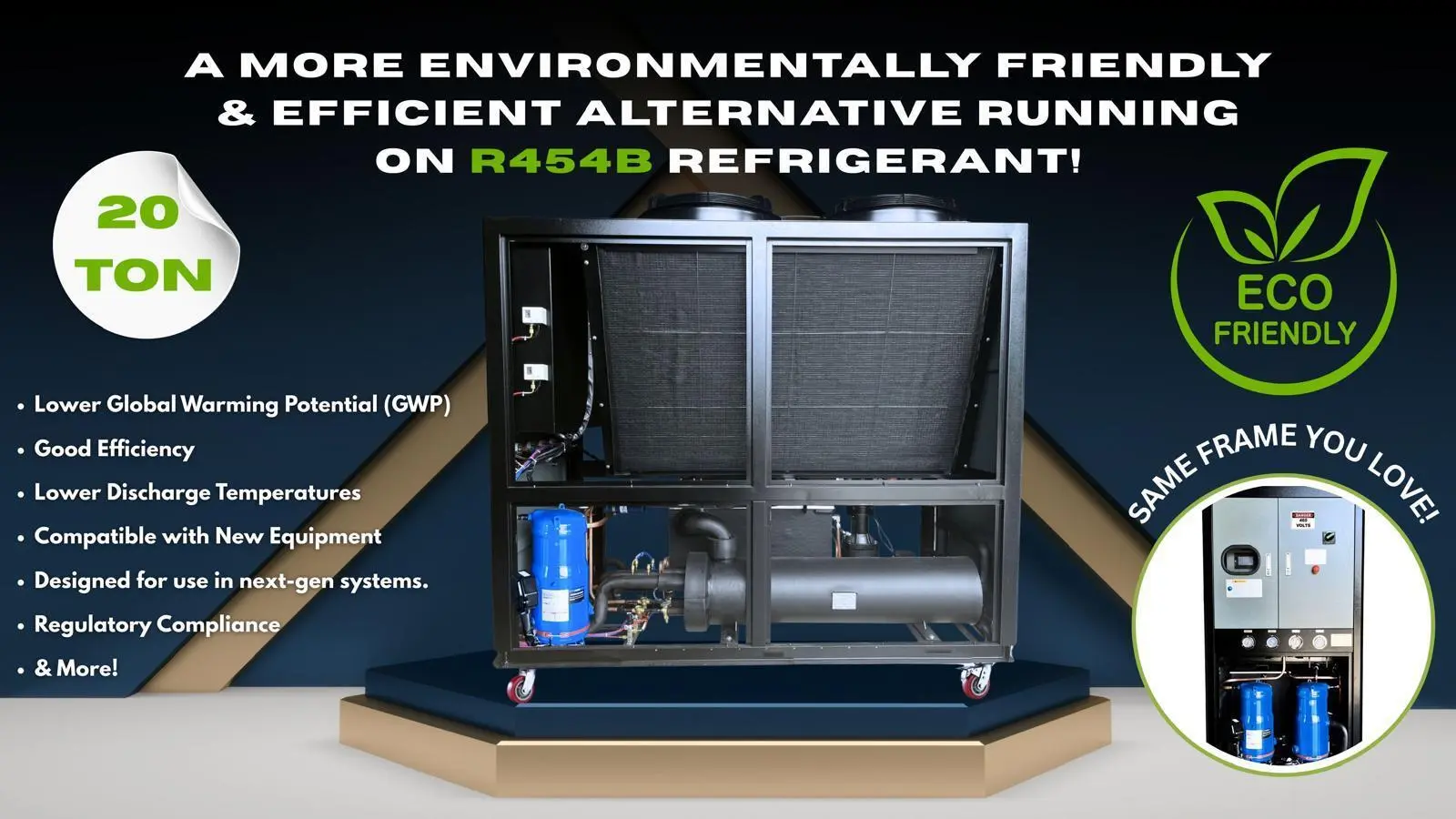

20 Ton Universal Air Cooled Chiller '26
Model: UCS-20AR3-B
| Year | 2026 | 2026 |
| Tonnage | 20 | 20 |
| Cooled | Air | Air |
| Voltage | 460V - 3Ph - 60Hz | 460V - 3Ph - 60Hz |
| 1KCAL/H: | 60,400 | 60,400 |
| BTU/H: | 240,000 | 240,000 |
| Refrigerant | Air | Air |
| Compressor Type | 2x (15 Hp each) Danfoss Fully Hermetic Scroll | 2x (15 Hp each) Danfoss Fully Hermetic Scroll |
| Hermetic Scroll | Yes | Yes |
| Chilled Water Inlet Temperature | 95º F | 95º F |
| Water Outlet Temperature | 41 º F | 41 º F |
| Ambient Temperature | 95 º F | 95 º F |
Refrigerant Sensor
MicroChannel Heat Exchanger (MCHE)
Full SS304 Shell and Tube Evaporator
Emergency Stop Button
Interlock Switch
Schneider Electric Contactors/Relays
Omron Phase Monitor.
Warranty WILL BE voided if the water is not protected from freezing.
