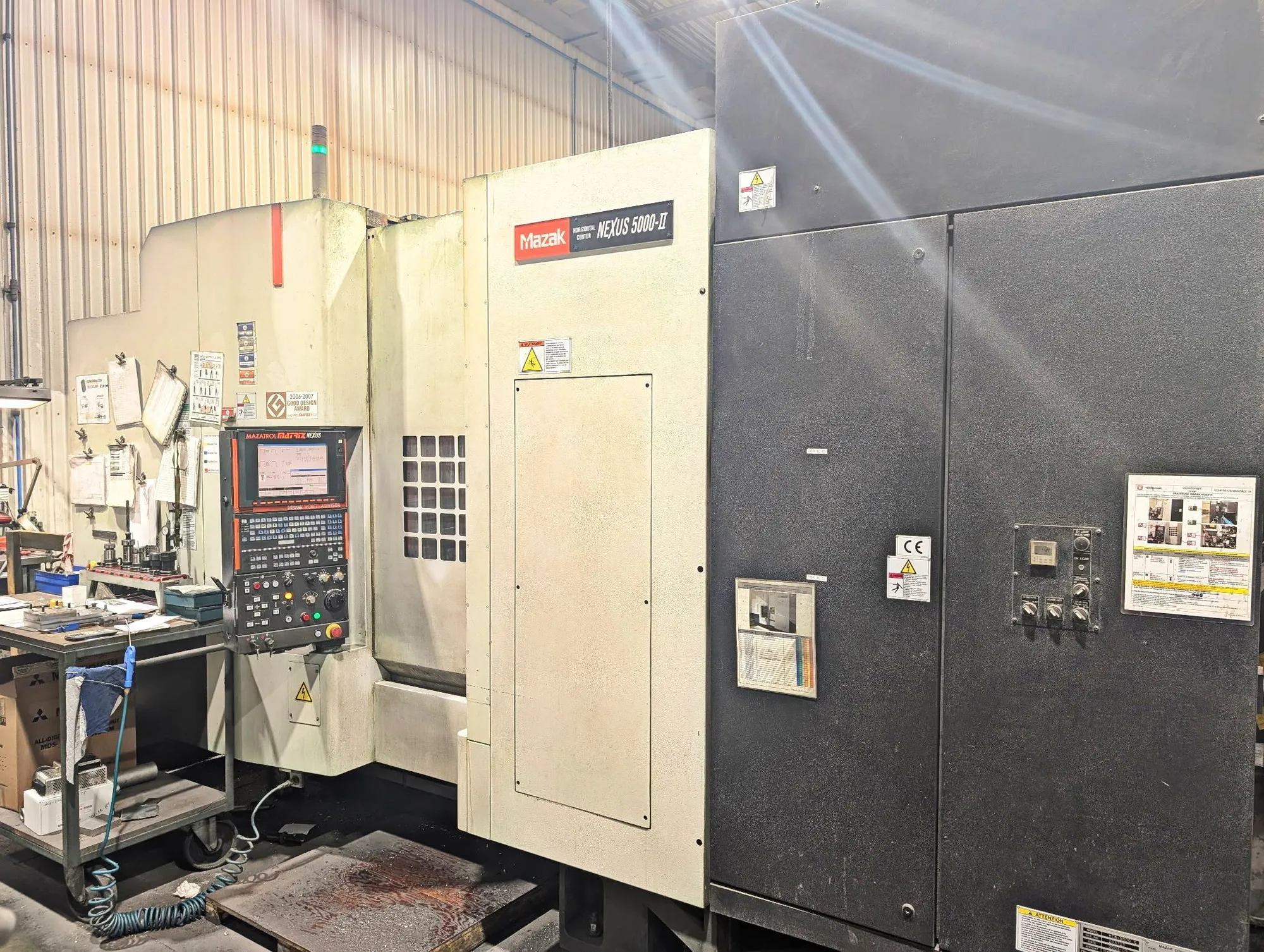

2008 Mazak Nexus HCN-5000 II Horizontal CNC Machining Center, TSC, 1000 PSI High-Pressure Coolant Pump, NC Rotary Table, Dual-Pallet Changer, 160 ATC, Chip Conveyor
| X-Axis | 28.74" | 730 mm |
| Y-Axis | 28.74" | 730 mm |
| Z-Axis | 31.5" | 800.1 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 160 | 160 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| Max Workpiece Diameter | 31.5" | 800.1 mm |
| Max Workpiece Height | 39.37" | 1,000 mm |
| Max Pallet Load | 1,102 lb | 499.9 kg |
| # Axis | 3 | 3 |
| Rapid Traverse (X/Y/Z) | 2,362 in/min. | 2,362 in/min. |
| Control | CNC (MAZATROL MATRIX NEXUS) | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 227" X 103" X 111" | 227" X 103" X 111" |
| Weight | 24,250 lb | 24,250 lb |
Through spindle coolant
Mazak SuperFlow II (1000 psi, double bag filter)
Concept 2000 Mayfram Chip conveyor (20k Value)
Full 4th rotary table
160 ATC
Dual-pallet changer
Work piece air blast
Monitoring system
Auto power off
