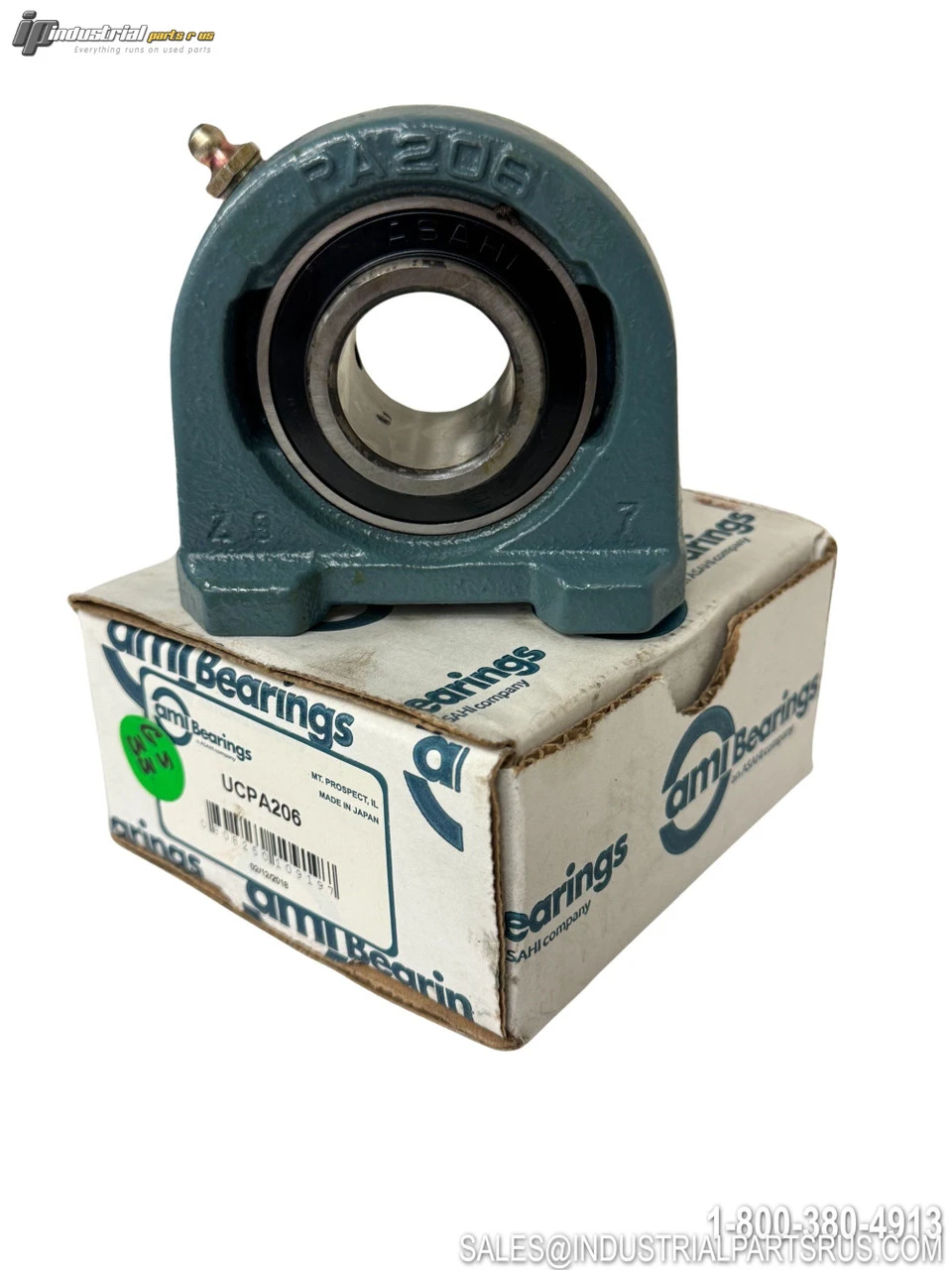

NEW AMI UCPA206

The AMI UCPA206 is a tapped base pillow block bearing unit designed for applications requiring space-efficient mounting. This unit features a 30mm bore, wide inner ring construction, and cast iron housing for reliable shaft support in industrial applications. The tapped base design allows mounting with two bolts through threaded holes in the base.
Specification
Value
Brand
AMI
Model/Part Number
UCPA206
Bore Diameter
30mm (1.181 in)
Series
UCPA200
Bearing Insert
UC206
Housing Number
PA206
Housing Material
Cast Iron
Inner Ring Width
Wide (38.10mm / 1.500 in)
Overall Length
94mm (3.7 in)
Overall Height
84mm (3.307 in)
Overall Width
48mm (1.890 in)
Center to Base Height
42.9mm (1.689 in)
Bolt Center Spacing
66mm (2.598 in)
Mounting Type
Tapped Base
Number of Bolts
2
Bolt Size
M14 x 2
Locking Type
Set Screw
Seal Type
Contact Seal with Slinger
Dynamic Load Rating
19.5 kN
Static Load Rating
11.3 kN
Lubrication Fitting
1/8-27 NPT
Weight
2.16 lbs
Application
General Purpose
We warranty all items for 30 days from date of purchase.

SKU: AI1718
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Material: Bearing Steel
Manufacturer: Ami
Part Number: UCPA206
Shelf: GS-33
Bore Diameter: 30 mm
Model: UCPA206
MPN: UCPA206
Type: Pillow Block
