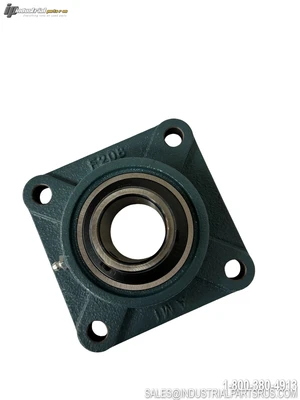

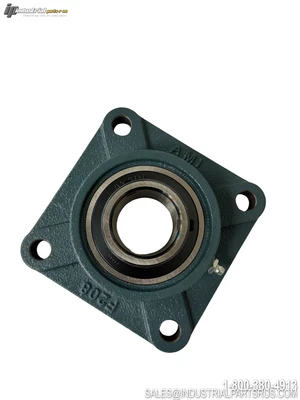

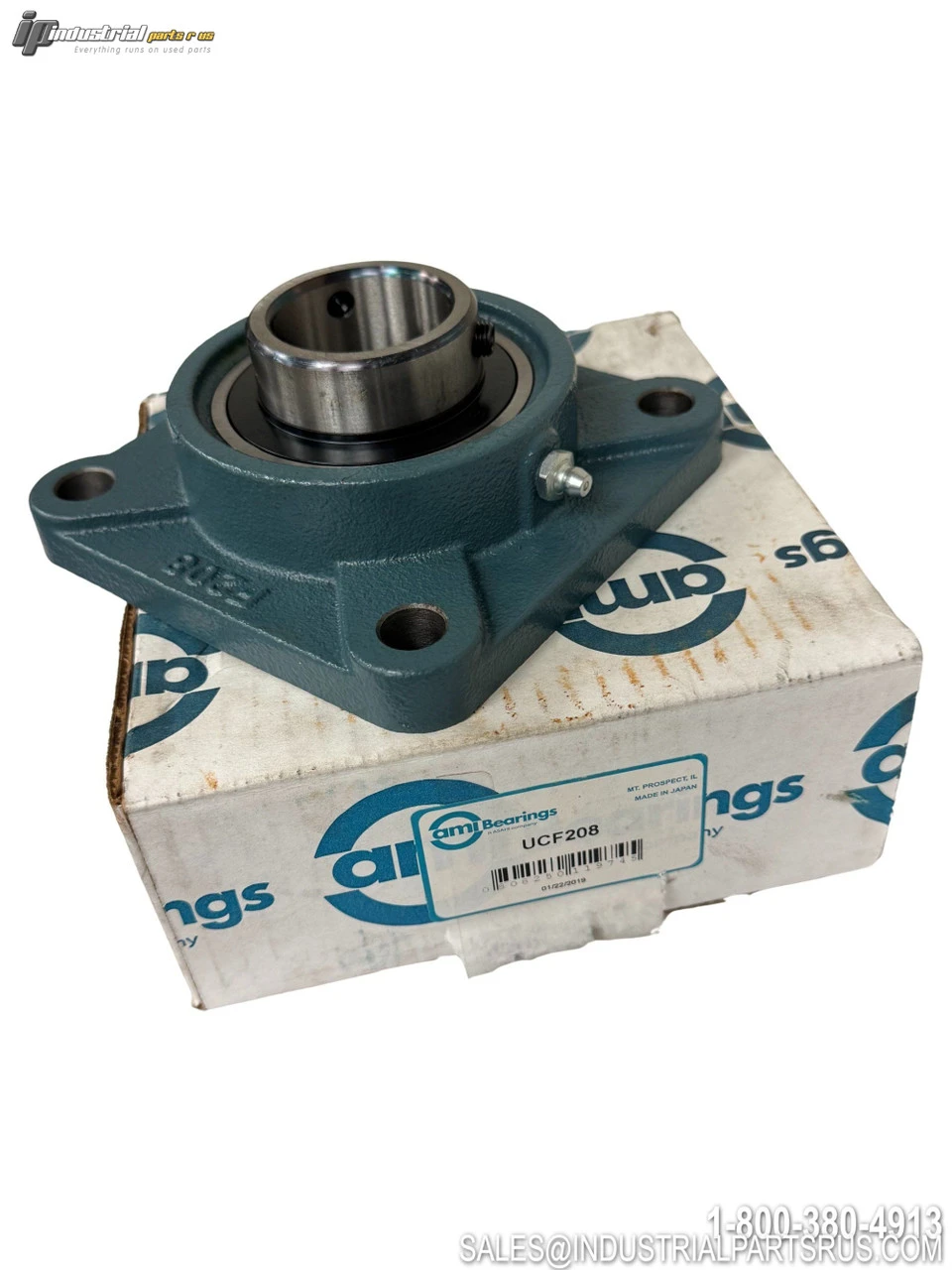

NEW MARTIN UCF208
Overview
The Martin UCF208 is a four-bolt square flange pillow block bearing designed for industrial applications requiring reliable shaft support. This bearing unit features a cast iron housing with chrome steel bearing insert, providing durability and self-alignment capabilities for various mounting conditions.
Specification
Value
Brand
Martin
Model/Part Number
UCF208
Bore Diameter
40mm
Housing Material
Cast Iron
Bearing Material
Chrome Steel (GCr15)
Mounting Type
4-Bolt Square Flange
Locking Type
Set Screw
Bolt Center Spacing
102mm
Overall Length
130mm
Width Through Bore
49.2mm
Insert Bearing
UC208
Housing Number
F208
Dynamic Load Rating
32.5kN
Static Load Rating
18kN
Weight
1.8kg
Seal Type
Standard Seal
Lubrication
Relubricatable with Grease Nipple
We warranty all items for 30 days from date of purchase.
Specs
SKU: AI1716
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Material: Chrome Steel
Manufacturer: Martin
Part Number: UCF208
Shelf: GS-33
Bore Diameter: 40 mm
Model: UCF208
MPN: UCF208
Type: Pillow Block
