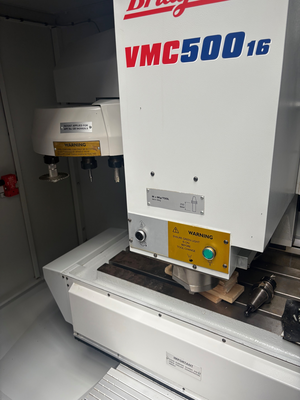

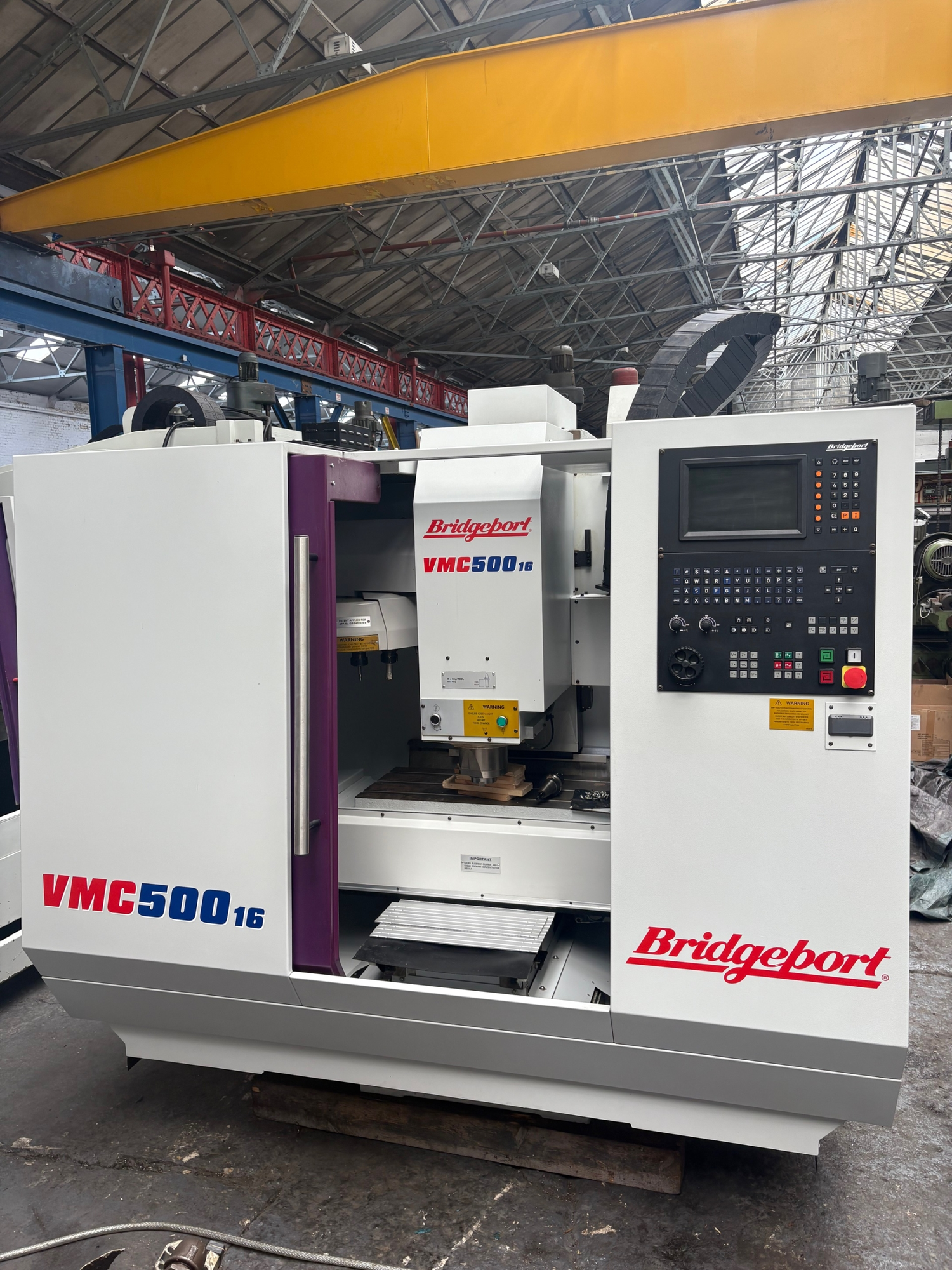

Bridgeport VMC 500/16

Axes 3 Axis CNC
Ex college machine
YOM: 1999

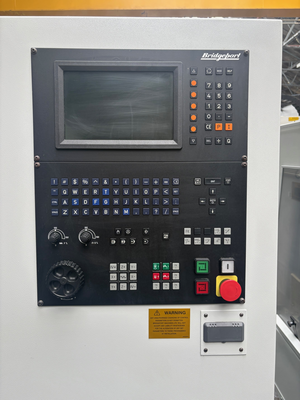

CNC Control Heidenhain TNC 370 / TNC 426 (varies by year)
X-Axis Travel 500 mm
Y-Axis Travel 340 mm
Z-Axis Travel 520–525 mm
Table Size 830–840 mm × 360 mm
Table Load Capacity 500 kg
T-Slots 3 T-slots at 112 mm pitch
Spindle Taper BT40
Spindle Speed 40–6000 rpm (some versions up to 7000 rpm)
Spindle Motor 7.5 kW

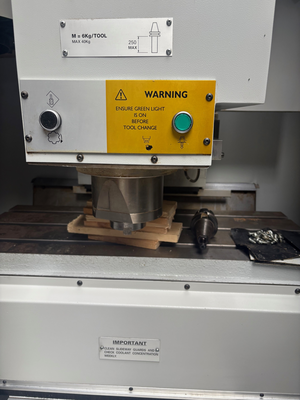

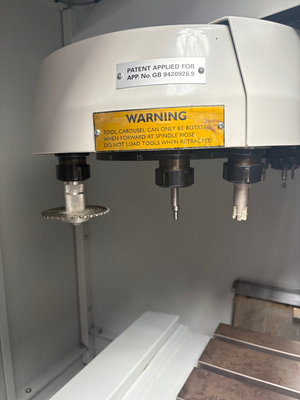

Tool Changer Capacity 16 tools
Maximum Tool Weight 6 kg
Tool Change Time Approx. 8.5 sec chip-to-chip
Rapid Traverse X/Y 20 m/min
Rapid Traverse Z 16 m/min
Spindle Nose to Table 75–595 mm
Machine Dimensions Approx. 2000 × 2020 × 2535 mm

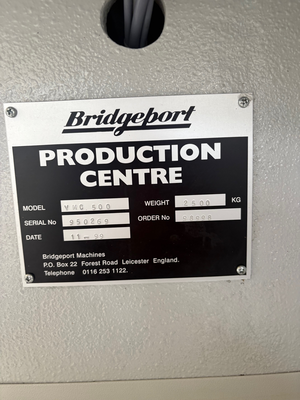

Machine Weight Approx. 2500 kg
Coolant System Standard
Enclosure Full enclosure
