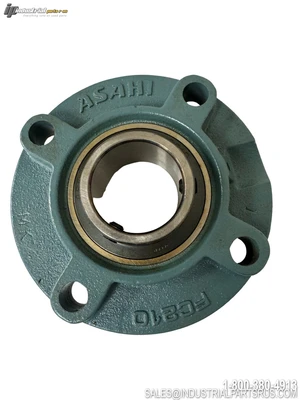

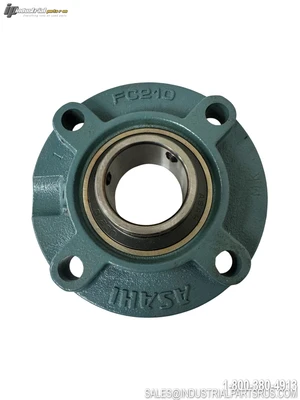

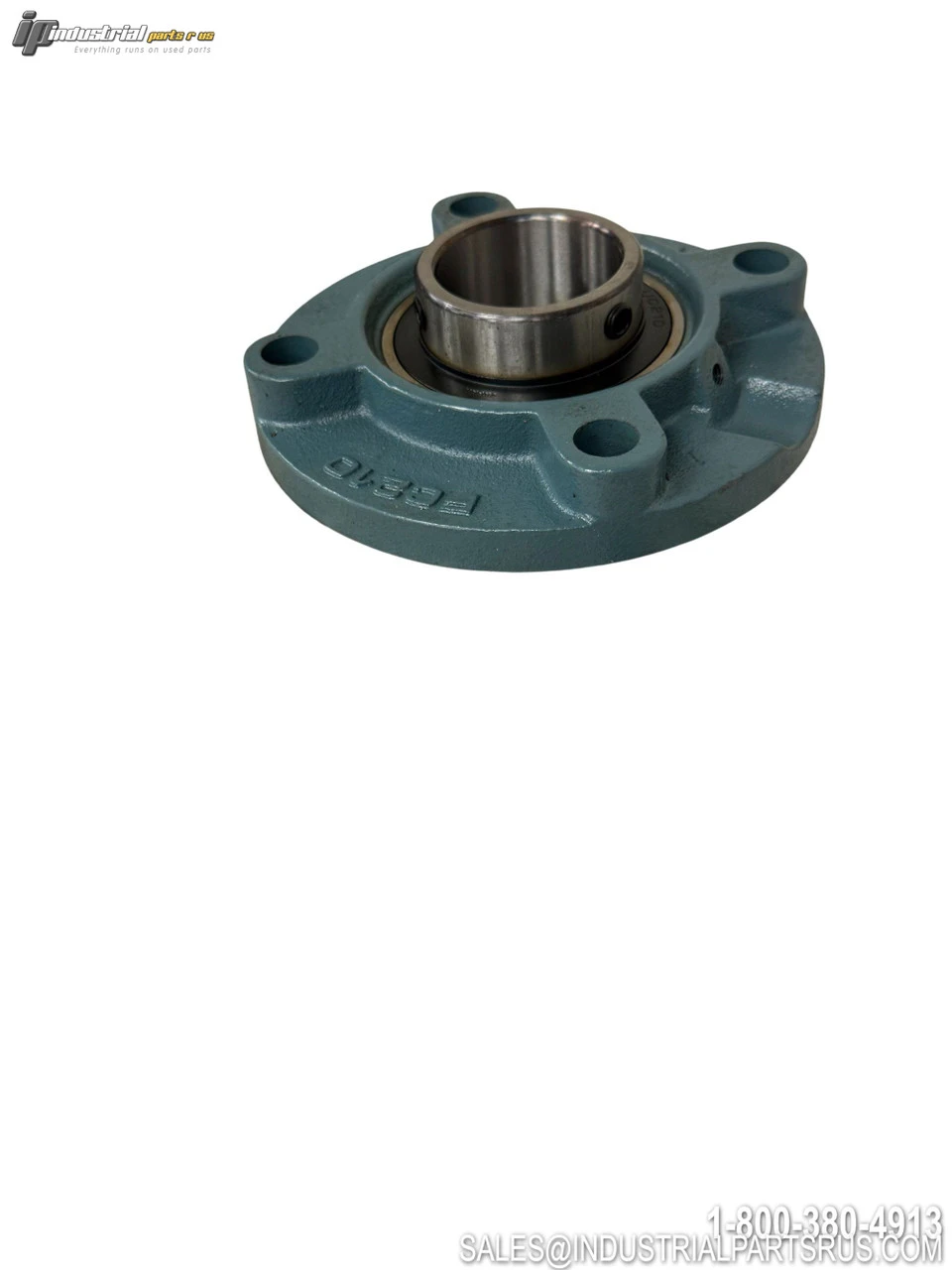

NEW ASAHI FC210

The Asahi FC210 is a 4-bolt round spigotted flange mount pillow block bearing housing designed for insert bearings with 50mm bore diameter. This cast iron housing provides reliable support and protection for insert bearings while simplifying installation and maintenance procedures.
Specification
Value
Brand
Asahi
Model/Part Number
FC210
Product Type
Pillow Block
Mounting Type
4-Bolt Flange
Housing Material
Cast Iron
Outside Dimension
165mm
Spigot Diameter
110mm
Bolt Hole Size
16mm
Bolt Spacing Center to Center
97.6mm
Bolt Pitch Diameter
138mm
Compatible Shaft Diameter
50mm
Weight
2.81 kg
Compatible Bearing Type
Insert Bearing
We warranty all items for 30 days from date of purchase.

SKU: AI1714
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Material: Stainless Steel
Manufacturer: Asahi
Shaft Diameter: 50mm
Part Number: FC210
Shelf: A-3
Bore Diameter: 50 mm
Model: FC210
MPN: FC210
Type: Pillow Block
