USED Allen Bradley 20-750-C5-C770D740

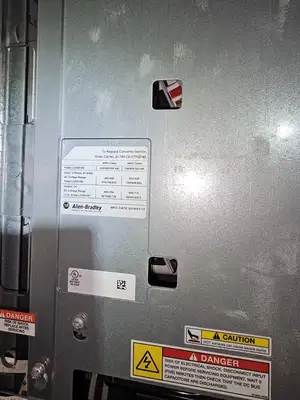

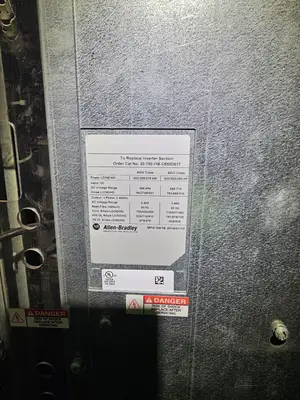

Allen Bradley 20-750-I1B-C650D617 Inverter with 20-750-C5-C770D740 Converter PowerFlex 755 Drive Cabinets setup.

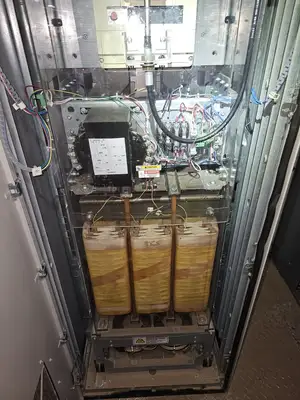

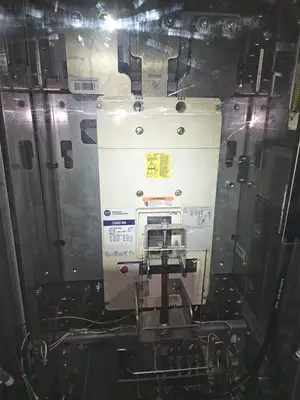

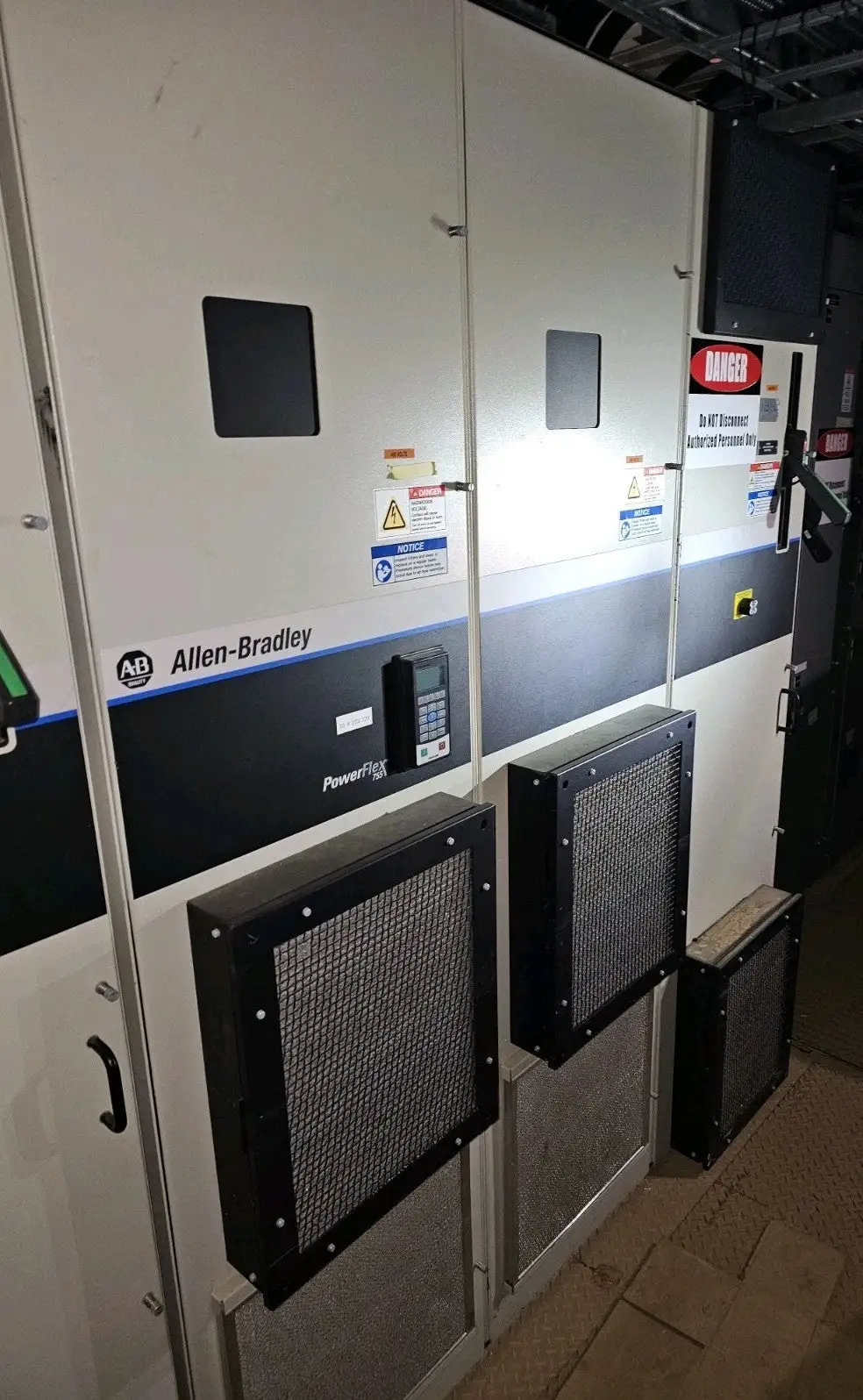

Decommissioned drives comprised of 3 main cabinet sections. First section is an Allen-Bradley 140U-N0 1200 Amp breaker and transformer. Second section is a PowerFlex 755 drive with the above inverter, converter specs. Third section is the exact same drive setup as the 2nd section.

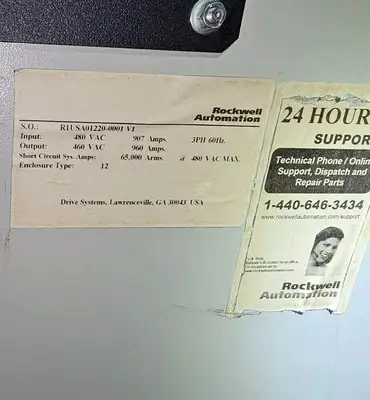

Input 480VAC 907amps. Output 460 VAC 960 amps

Enclosure size 12

Four cabinet sets available of this breaker + redundant 755 drive setup. Contact us if single drive section is required.

Will help coordinate shipping and loading. Be prepared to pay additional freight charges.

Brand: Allen Bradley
Model: 20-750-C5-C770D740
MPN: 20-750-I1B-C650D617
Input Voltage: 460 V
Enclosure: NEMA 12
Country of Origin: United States
Number Of Phases: 3-Phase
Rated Load: 400 HP
UPC: Does not apply
Product Type: Variable Frequency Drives
SKU: 20-750-I1B-C650D617
