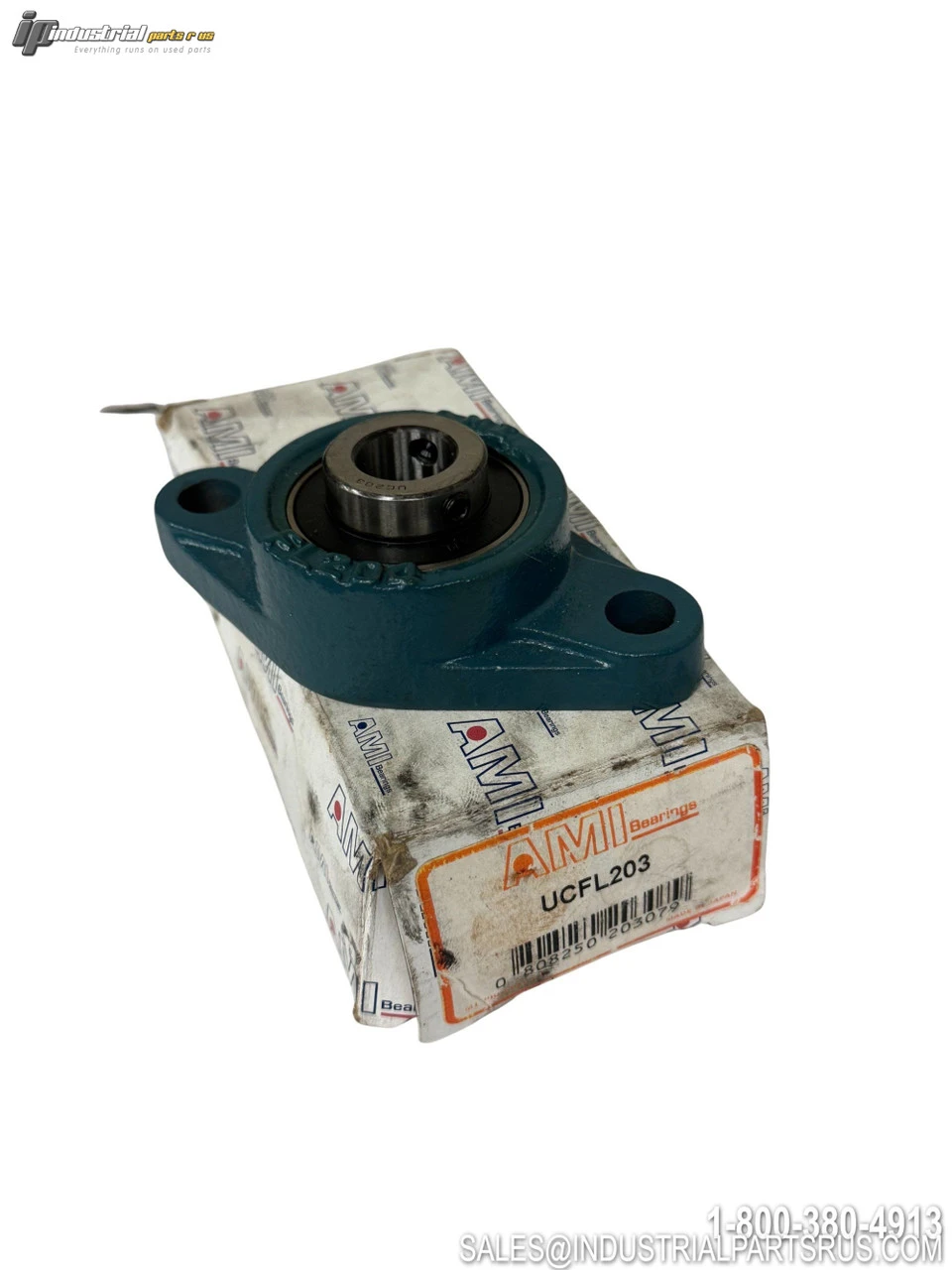

The AMI UCFL203 is a 2-bolt flange-mount pillow block bearing designed for moderate radial loads and light thrust applications. This bearing unit features a 17mm bore with a wide inner ring UC203 insert bearing housed in a cast iron 2-bolt flange housing with set screw locking mechanism and grease fitting for relubrication.
Specification
Value
Brand
AMI
Model/Part Number
UCFL203
Bore Diameter
17mm
Housing Material
Cast Iron
Housing Type
2-Bolt Flange
Insert Bearing
UC203
Locking Type
Set Screw
Seal Type
Contact Seal with Flinger
Overall Height (H)
113mm
Bolt Hole Spacing (J)
90mm
Base Length (L)
60mm
Bolt Size
M10
Dynamic Load Rating (Cr)
12,800 N
Static Load Rating (Cor)
6,650 N
Grease Fitting
Yes
Application
Light to Moderate Duty
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI1711
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Material: Chrome Steel
Manufacturer: Ami
Part Number: UCFL203
Shelf: A-3 Tub1
Bore Diameter: 17 mm
Model: UCFL203
MPN: UCFL203
Type: Pillow Block
