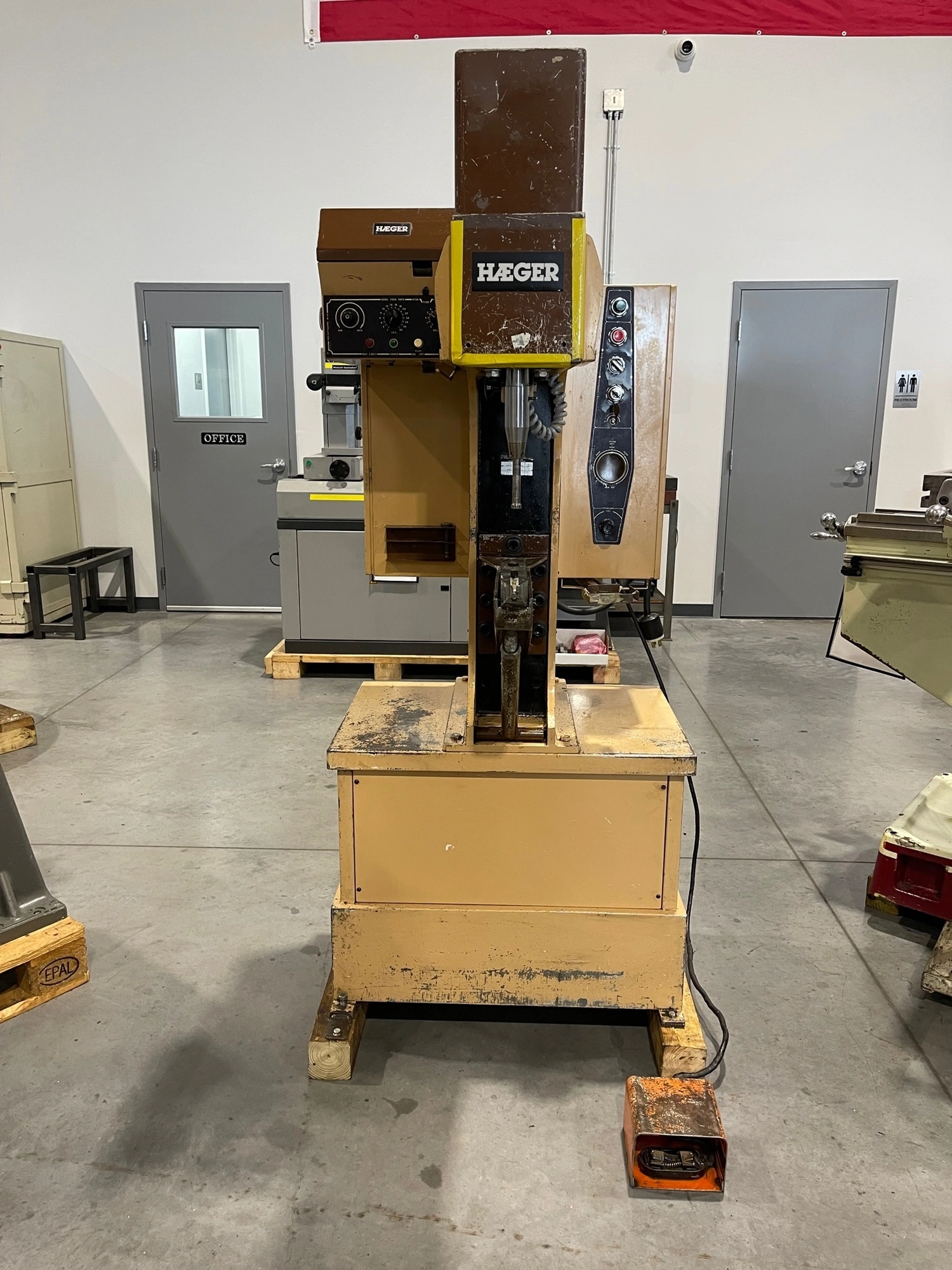

HAEGER HP6-B 6 Ton Hydraulic Insertion Press & Autofeed Bowl USA
| Tonnage | 6 T | 5.443 t |
| Dimensions | 30” x 36” L x 68’’ H | 30” x 36” L x 68’’ H |
| Weight | 1200 Lbs. | 1200 Lbs. |
HAEGER HP6-B 6 Ton Hydraulic Insertion Press & Autofeed Bowl USA #6836
Reference # 6836
Model # HP6-B
Serial # 328
Maximum force- 12,000 Lbs. (54 KN.)
Electrical requirements- 3/60/230 volts
Amperes- 5.2
Stroke length- 0 to 8-1/2"
Vertical up stroke- 3/8" to 8-1/2"
Throat depth- 18”
Hydraulic oil capacity- 18 Gallons
Autofeed bowl Model # AR-AH
Footswitch
1-1/2 H.P. drive motor and electrical controls
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 1200 Lbs.
Machine dimensions- 30” x 36” L x 68’’ H
Machine location- F.O.B. Sarasota, Florida
