30 BBL ABE 3-Vessel Brewhouse System –

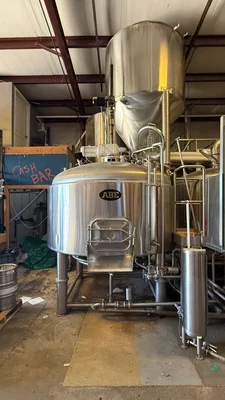

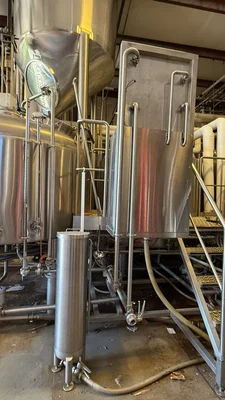

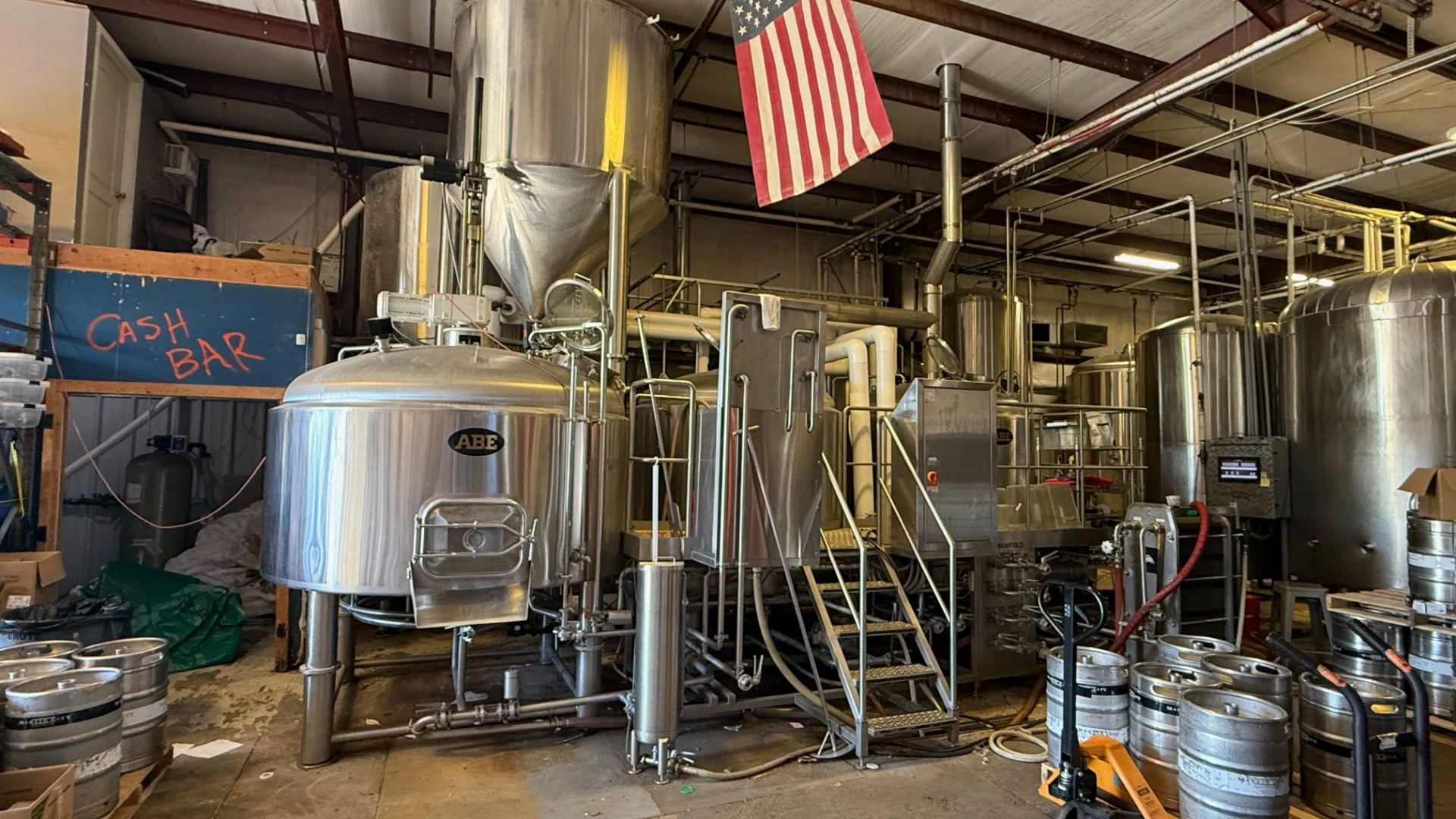

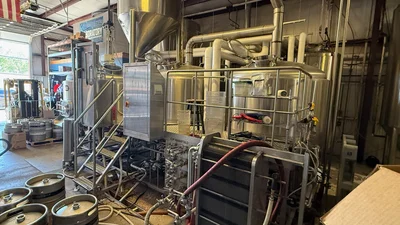

Complete 30 BBL ABE 3-vessel brewhouse system available from a recent brewery closure. This professionally designed system features a Mash Tun, Lauter Tun, and Brew Kettle with integrated whirlpool functionality, all mounted on an elevated brew deck with integrated stairs and operator platform.

System includes dual Hot Liquor Tanks consisting of a 20 BBL HLT and 60 BBL HLT, allowing for continuous brewing and increased production efficiency. Also includes a tall grist hopper with auger feed system, stainless hard piping, sanitary butterfly valves, centrifugal pumps, and brewhouse control panel with mounted operator controls.

Key Features:
• 30 BBL ABE 3-Vessel Brewhouse
• Approx. 930 Gallon Batch Size
• Steam Jacketed Vessels
• Dual HLT Configuration Included
• Integrated Whirlpool Brew Kettle
• Grist Hopper With Auger Feed System
• Stainless Hard Piping Throughout
• Multiple Wort & Liquor Transfer Pumps
• Platform Brew Deck With Stairs & Controls
• Clean Condition – Approx. 3 Years Old
• Includes Associated Valves, Pumps, And Mounted Components

Estimated Footprint:
• Overall System: 20' x 10' x 20'
• Brew Deck: 15' x 9' x 5.5'

Boiler and glycol system not included unless otherwise noted.

Located and ready for removal. Freight quotes available 🚛

Denny...they have TWO HLT's behind the brewhouse and the tall grist hopper above the MT. Photos are organized with the HLTs separated out if you choose to list them separately...grist hopper is in the main brewhouse folder.

30 BBL ABE 3-Vessel Brewhouse System
Approx. 3 Years Old

• Manufacturer: ABE Equipment
• System Type: 3-Vessel Brewhouse (Mash Tun, Lauter Tun, Brew Kettle With Whirlpool)
• Rated Capacity: 30 BBL Per Batch

• Total Footprint: 20' x 10' x 20' (L x W x H)
• Brew Deck: 15' x 9' x 5.5' With Integrated Stairs And Platform

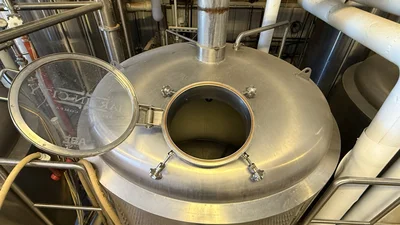

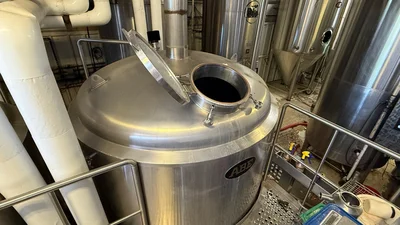

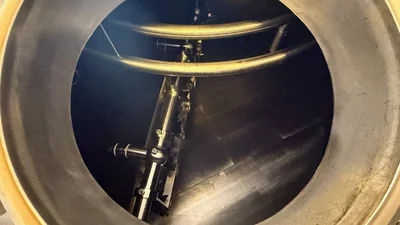

• Mash Tun: 9' x 15' Including Grist Hopper, Agitator Equipped
• Lauter Tun: Integrated Within Mash Vessel (False Bottom, Rakes Likely Based On ABE Design)

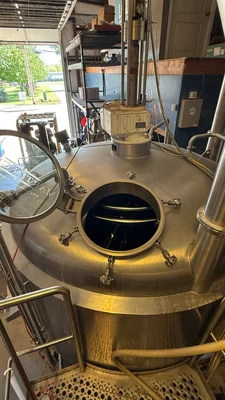

• Brew Kettle: 7' x 11' With Integrated Whirlpool Function

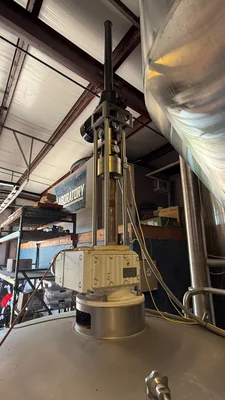

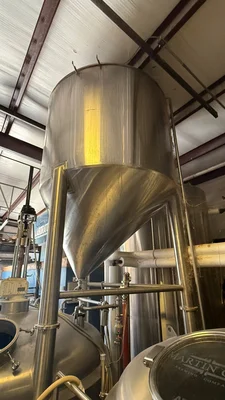

• Grist Hopper: 6' x 20' With Auger Feed System
• Motorized Grain Handling System

• Hot Liquor Tanks:

20 BBL HLT – 5' x 11'
60 BBL HLT – 7' x 18'
Dual HLT Configuration Allows For Continuous Brewing And Increased Throughput

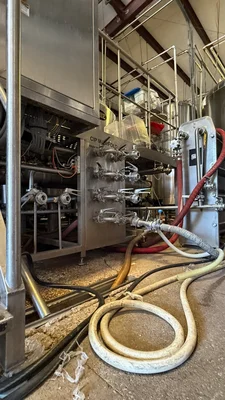

• Stainless Steel Hard Piping Throughout
• Sanitary Butterfly Valves And Tri-Clamp Fittings

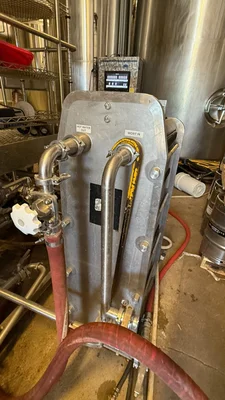

• Multiple Centrifugal Pumps For Wort And Liquor Transfer

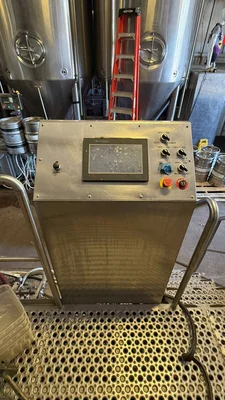

• Brewhouse Control Panel With Manual Switches (Kettle 1, Kettle 2, Mash, Lighting)
• Emergency Stop And Alarm Functions
• Platform-Mounted Operator Controls

• Steam Jacketed Vessels (Kettle And HLTs Confirmed By Piping And Vent Stacks)
• Condensate Return Plumbing Present

• Inferred Utilities Requirements:

Steam Supply: External Boiler Required (Estimated 75–150 HP Boiler Typical For 30 BBL System)
Electrical: 208–480V / 3-Phase Power (Typical For Pumps, Controls, And Augers)
Water: Potable Brewing Water Supply With उचित Pressure And Flow Rate
Drainage: Trench Or Floor Drains Required For CIP And Knockout Operations
Venting: Stack Venting For Steam Exhaust And Boil-Off
Compressed Air: Likely Required For Pneumatic Valves (If Equipped)

• Platform-Based Design For Efficient Brew Flow And Operator Access

• Condition: Clean, Well-Maintained, Operational Wear Consistent With ~3 Years Use
• Includes Associated Brewhouse Piping, Valves, Pumps, And Mounted Components
• Does Not Include Boiler Or Glycol System (Unless Otherwise Noted)

Category: Brewhouses
Subtype: 30 BBL
Status: available
Condition: used
Quantity: 1
SKU: MAR421
Low Price: 16000.0
High Price: 30000.0
Notes: Denny...they have TWO HLT's behind the brewhouse and the tall grist hopper above the MT. Photos are organized with the HLTs separated out if you choose to list them separately...grist hopper is in the main brewhouse folder.
