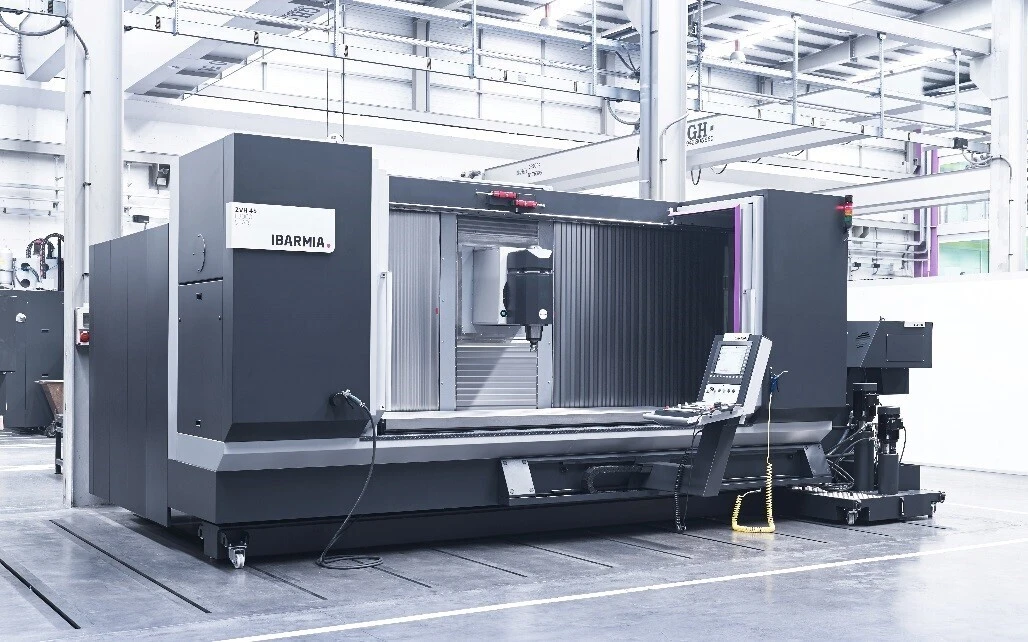

NEW IBARMIA ZVH-55-EXT-L3000

Specifications(subject to buyer verification):
Strokes
X-axis, longitudinal: 3,000 mm
Y-axis, transversal: 800 mm
Z-axis, vertical : 1,100 mm
NC Head tilting range: +/-105º
Pendulum working (Optional): 2 x 1,165 mm
Maximum swing diameter: 1,200 mm

Working Table:
Length x width of the table: 3,600 x 850 mm
Number of T slots: 7
Size of the T slots: 1x18(H7) / 6x18(H12)
Distance between T slots: 125 mm
Maximum admissible load over the table: 2,000 kg/m2
Distance from table surface to spindle nose V (min./max.): 0/1,100 mm
Distance from table surface to spindle nose H (min./max.): 375/1,475 mm

Main spindle and headstock:
Taper of the tool holder axis: ISO 50
Tool holder pull stud according to Norm: DIN 69872

Electrospindle:
Power in service S1 (100%): kW 48/74
Power in service S6 (40%): kW 71/84
Total available power from: 1,500/4,000 RPM
Torque in service S1 (100%): Nm 300/177
Torque in service S6 (40%): Nm 452/200
Maximal rotation speed: 1,2000 RPM
Maximal rotation speed intermittent: 1,200 RPM

Main spindle and headstock:
Taper of the tool holder axis: ISO 50
Tool holder pull stud according to Norm: DIN 69872
Electrospindle:

Feeds:
Digital servomotors with incorporated break system.
Feed thrust X,Y,Z 100%: 15,021/12,154/10,649 N
Rapid feed for positioning
X-axis: 45 m/min
Y-axis: 45 m/min
Z-axis: 45 m/min
Maximum working feed
X-axis: 30 m/min
Y-axis: 30 m/min
Z-axis: 30 m/min

Guide ways and ball screws:
Number of rollers:
X-axis: 2+2+2
Y-axis: 3+3
Z-axis: 2+2
Distance between linear guides (mm):
X-axis: 530/810 mm
Y-axis: 710 mm
Z-axis: 710 mm
Dimensions of rollers: 55 mm
Dimensions of ball screw:
X-axis: D 63/ P 30 mm
Y-axis: D 50/ P 30 mm
Z-axis: D 50/ P 30 mm

Measuring system:
Resolution: 1 µm
Positioning accuracy Tp X-Y-Z (1000 mm): 10 µm
Positioning repetitibility: 5 µm
Positioning accuracy Tp B: 8"

Tool magazine and automatic changer:
Number of positions of the magazine: 30
Maximal tool diameter:
Previous and posterior taken position: 125/100 mm
Previous and posterior free position: 200 mm
Maximum tool length: 400 mm
Maximum tool weight: 20 kg
Tool management system: Random
Tool changing time: 10 s
Chip to chip time: 12 s
Magazine taper: ISO 50 (DIN 6871)
Tool holder pull stud according to Norm: ISO 50 (DIN 69872)//BT 50 (JIS 6339)

Machine dimensions:
Maximum length: 7,350 mm
Maximum width: 5,215 mm
Maximum height: 3,600 mm

Equipped With (subject to buyer verification):
HEIDENHAIN mod. TNC 640 HSCI Controller
Heidenhain HR-510 portable electronic hand-wheel with support
Calibration of rotating axis. Heidenhein KinematicsOpt
Rotary table D600/H410 HV with hole thru Ø 260 mm
Manual tailstock H410 mm
Voltage transformer and 60 Hz for Extreme machines (50-55-58 and T series)
Tool magazine of 40 positions for series Extreme and Multiprocess SK 50/HSK A100/CAT50/ tapers BIG PLUS
NSM software and division wall of working areas with trolley
Valve for automatic pressure setting for pump
Air guns (2 units)
Rotary plate with continuous movement mod. D800/MR1 (10 sec)
Spray guns (2 units)
Air through spindle. Rotary joint valid for machining with air blowing without limits
Inner cooling through main spindle centre (70 bar)
Main spindle taper CAT-50 without limits
Preparation for piece/tool probe by Heidenhain cycles
