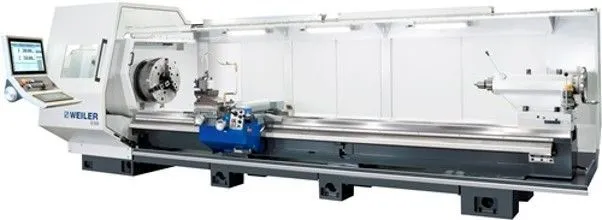

NEW WEILER E90 x 3000/362

Specifications (subject to buyer verification):
Working Range
Center distance: 3,000 mm
Swing over bed: 900 mm
Swing over cross slide: 530 mm
Travel of cross slide: 590 mm
Travel of top slide: 250 mm
Width of bed: 600 mm
Cross section of turning tool (height x width): 40 mm x 40 mm

Main Spindle
Spindle nose acc. to DIN ISO 702-1 (DIN 55026): Size 20
Back plate at rear of spindle DIN 55026: Size 20
Spindle diameter in front bearing: 448 mm
Spindle bore: 362 mm

Main Drive
AC drive with 2 gear steps
Drive power at 60% / 100% duty cycle: 45 / 37 kW
Total speed range: 1 - 500 RPM
Speed range - gear step I: 1 - 130 RPM
Speed range - gear step II: 4 - 500 RPM
Max. torque at the main spindle: 10,000 Nm

Feed Drive
Three phase digital servo drives
Feed force longitudinal: 20,000 N
Feed force transverse: 20,000 N
Feed range longitudinal and transverse: 0.001 - 50 mm/rev
Time feed: 0.001 - 10,000 mm/min
Rapid motion longitudinal / transverse max.? 10/7 / 5 m/min

Thread Range
Metric threads: 0.1 - 2,000 mm
Inch threads: 112 - 1/64 TPI
Modular threads: 0.05 - 56 mm
Diametral threads: 448 - 005 DP
Number of thread courses: 360 Max

Tailstock
Quill diameter: 140 mm
Quill travel: 300 mm
Inside taper of quill: 6 MT

Weight
Machine without additional accessories: 11,000 kg

Dimensions
Machine - Length (without chip conveyor): 5,700 mm
Machine - Width: 2,900 mm
Machine - Height: 2,350 mm
Control Cabinet - Length x Width x Height: 2,500mm x 500 mm x 1,600 mm
