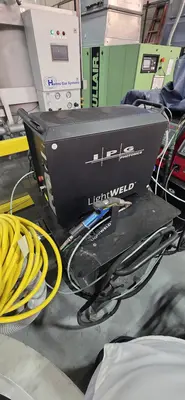

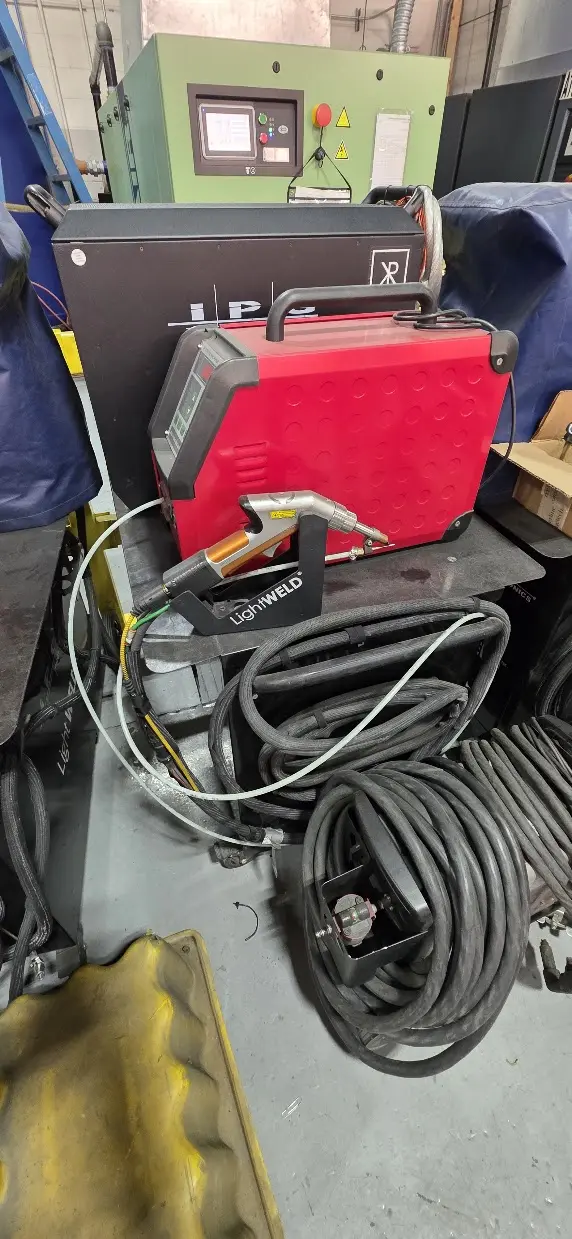

USED IPG PHOTONICS LIGHTWELD 1500

LightWELD Models
HANDHELD LASER WELDERS DESIGNED FOR ANY OPERATION
Get the full Product Brochure

LightWELD 1000

LightWELD 1000
COST-EFFECTIVE POWER
WELDING
Steels: Up to 9 gauge (0.156″)
Aluminum 3 & 5: Up to 8 gauge (0.129”)
Aluminum 6: Up to 8 gauge (0.129”)
Nickel Alloy: –
Titanium: –
Copper: –
LightWELD 1500XR

LightWELD 1500
INCREASED PERFORMANCE
WELDING CLEANING
Steels: Up to 4 gauge (0.234″)
Aluminum 3 & 5: Up to 3 gauge (0.229”)
Aluminum 6: Up to 4 gauge (0.204”)
Nickel Alloy: Up to 6 gauge (0.203”)
Titanium: Up to 6 gauge (0.203”)
Copper: Up to 12 gauge (0.081”)
LightWELD 2000

LightWELD 2000
MAXIMIZED CAPABILITES
WELDING CLEANING
Steels: Up to 0 gauge (0.313″)
Aluminum 3 & 5: Up to 0 gauge (0.325″)
Aluminum 6: Up to 3 gauge (0.229”)
Nickel Alloy: Up to 1 gauge (0.281″)
Titanium: Up to 4 gauge (0.234″)
Copper: Up to 8 gauge (0.129″)
LightWELD Laser Welding FEATURES
Wobble welding with adjustable width and speed for excellent seam control and parts with imperfect fit up
Continuous wave and pulsed laser welding modes for improved weld quality and reduced heat input
100 customizable welding and cleaning parameters sets with 75 built-in presets optimized for common materials and thicknesses
Weld autogenously or with single and dual MIG wire feed to control weld size, fill gaps, or laser braze with a variety of wire materials
Adjustable focal position for precise control over power density and spot size
Line mode for perfectly sized tack and stitch welds
Compatibility with all common welding shielding gases, including nitrogen (steels and copper) and argon (aluminum and titanium)
Easily change laser focus positions for advanced control over welding results

2 x Wire Feeders
Welding Cart
