USED 2022 HOLZ-HER DYNESTIC 7532 B
Overview
Description

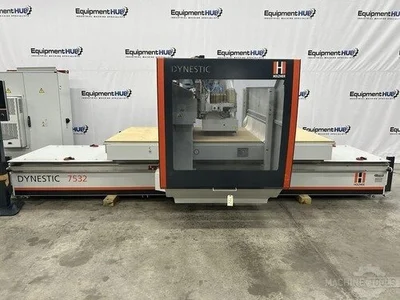

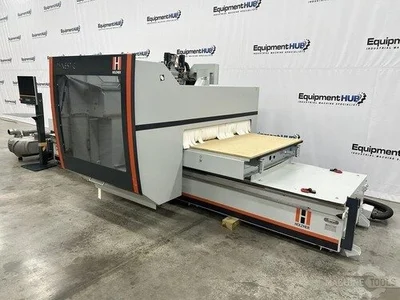

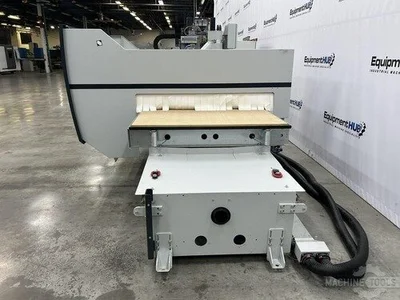

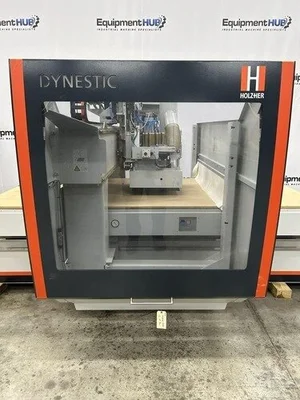

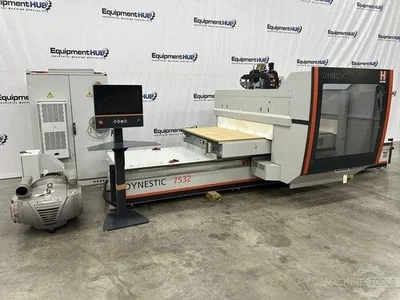

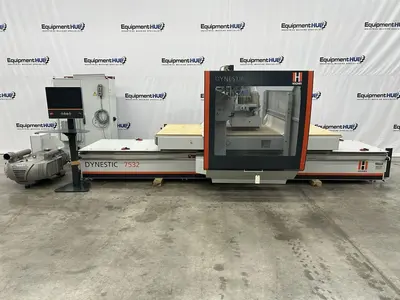

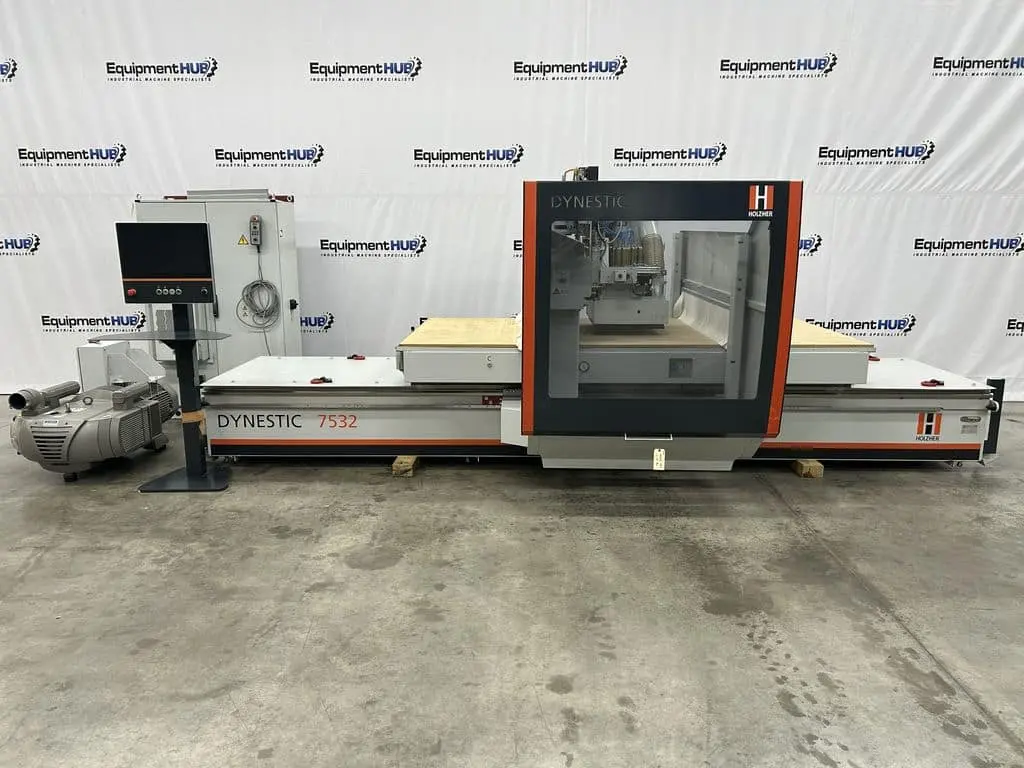

Holz-Her Dynestic 7532 B CNC Gantry Nesting Machining Center Router (2022)
Specifications
General Info
Stock #: 116260003
Location: Decatur, GA

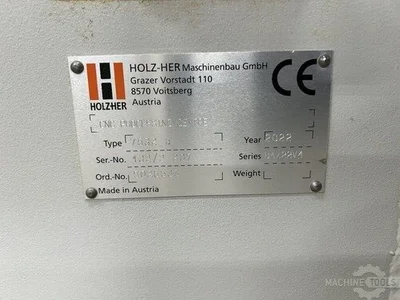

Brand: Holz-Her
Model: Dynestic 7532 B
Serial #: 132/2 207
Year: 2022
Approx. Shipping Weight: 20,000 Lbs.
Approx. Shipping Dimensions: 28' L x 9'2" W x 7' H
Specifications
Machining Dimensions (X): 3,700 mm (145.7")
Machining Dimensions (Y): 2,200 mm (86.6")
Vector Speed: 100 m/min
Spindle: 8 kW Air-Cooled Precision Milling Spindle
Spindle Speed: 1,000 - 24,000 RPM

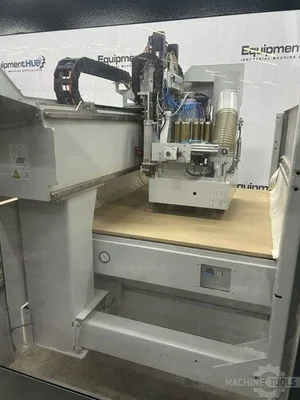

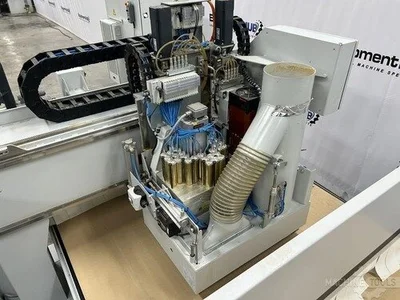

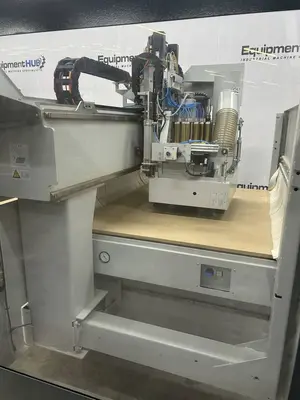

Drilling Head: 15 Spindles (9 Vertical, 6 Horizontal) w/ Sawing Unit for Grooving in X Direction
Tool Changer: 14-Position Pick-Up Tool Changer w/ Tool Cover

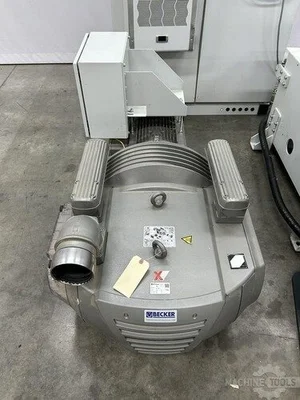

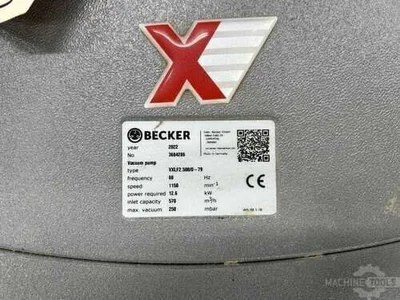

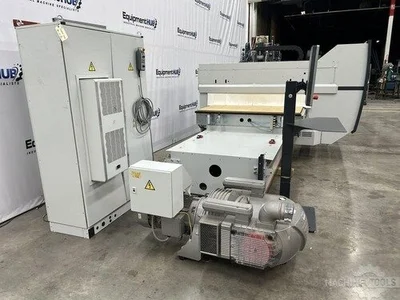

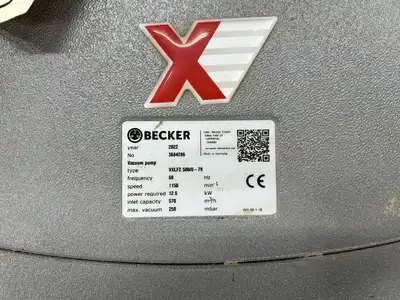

Vacuum Pump: Becker VXLF2.500D-79 (12.6 kW, 570 m³/h, 250 mbar Max Vacuum)
Table Type: High-Flow Nesting Table w/ Continuous Vacuum Field
Equipped With

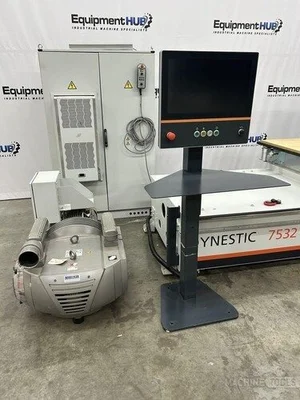

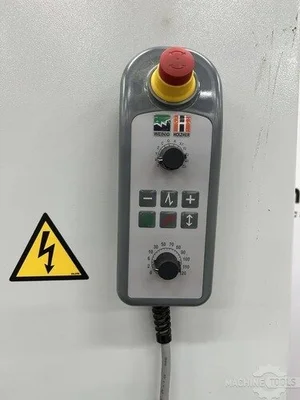

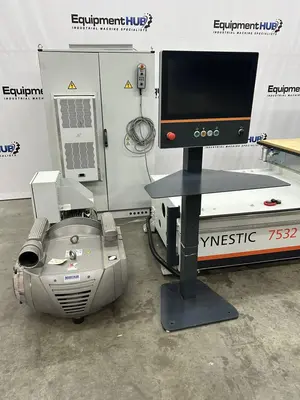

CAMPUS Software w/ aCADemy CAD/CAM Module, CabinetControl Base, 21.5" Touchscreen Control Console, Weinig Holz-Her Handheld Pendant/Remote Jog, Becker Dry-Running Vacuum Pump, Light Grid Safety System, Brush Strip Table
Additional Info
The Holz-Her Gantry CNC machine can be demoed upon request.
