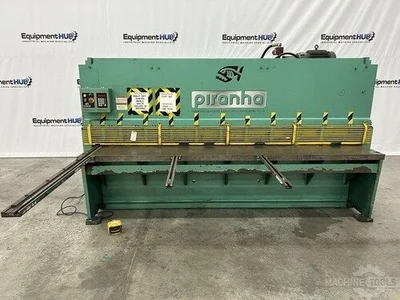

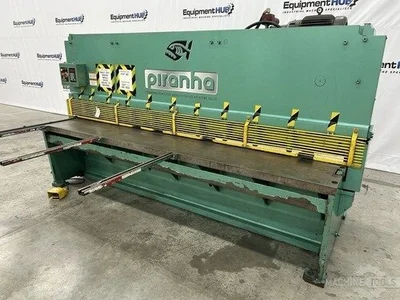

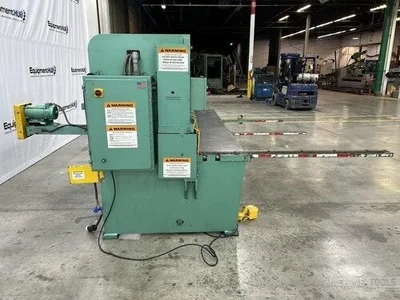

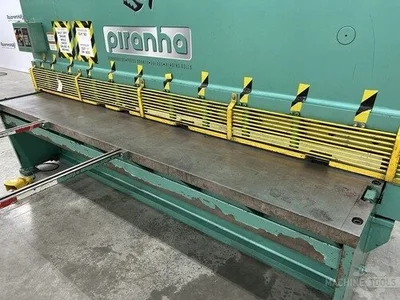

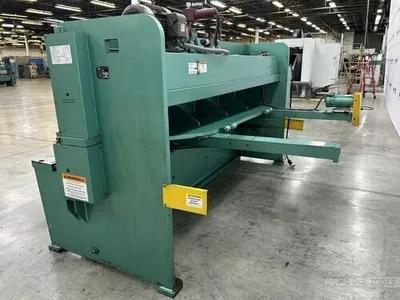

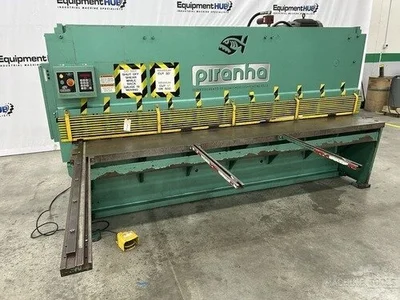

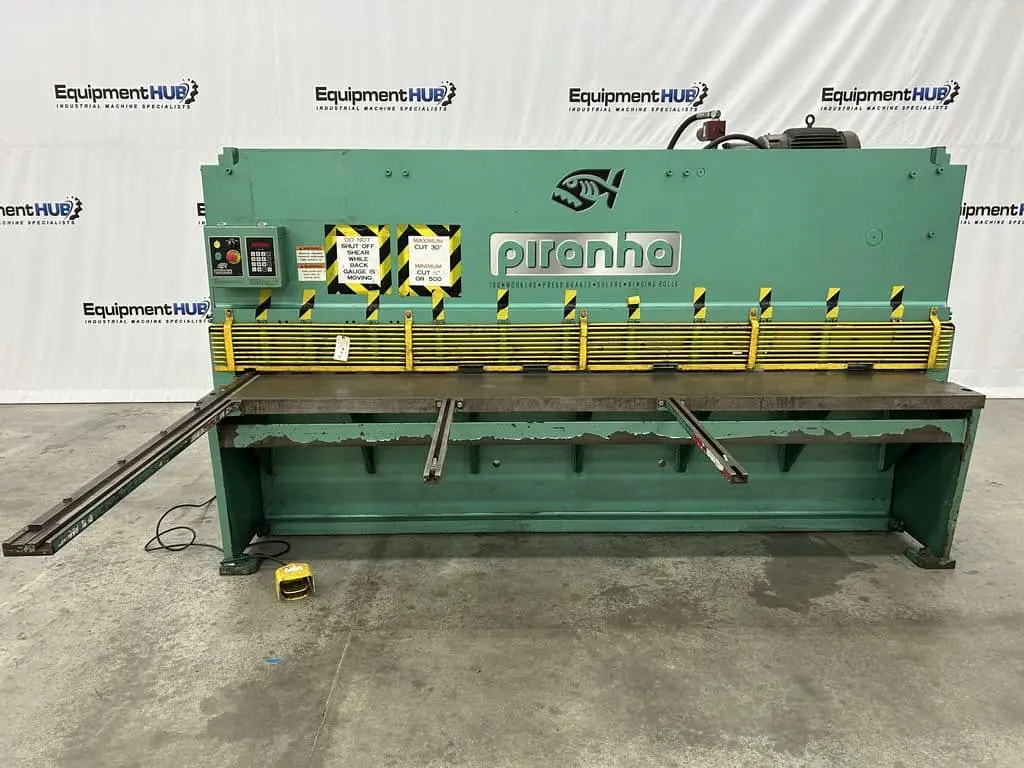

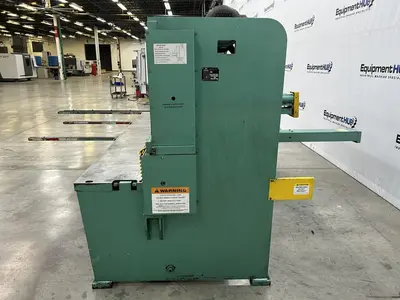

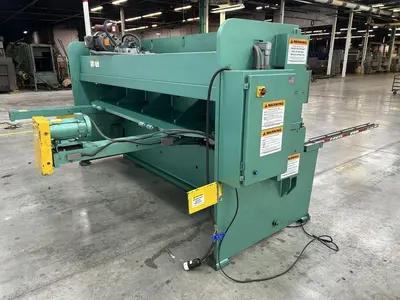

Piranha M 1/4-10 1/4" x 10' Hydraulic Shear
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Power | 15 hp | 11.2 kW |
General Info
Stock #: 150260013
Location: Decatur, GA
Brand: Piranha
Model: M 1/4-10

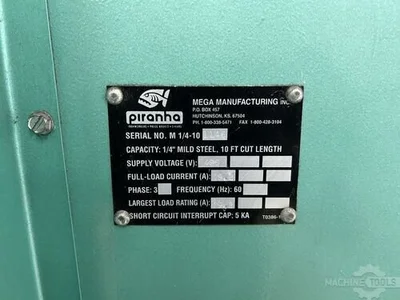

Serial #: 1146
Approx. Shipping Weight: 18,000 Lbs.
Approx. Shipping Dimensions: 12' L x 8' W x 7' H
Specifications
Cutting Capacity: 1/4" Mild Steel
Max Cutting Length: 120"
Rake Angle: 1/4" Per Ft.
Speed (Strokes Per Minute): 24 SPM (Full Length) to 48 SPM (Min. Cut Length)
Knife Size: 1" x 3"
Hold Downs: 10
Backgauge Range: Up to 39"
Electrical: 230V/3PH
Equipped With

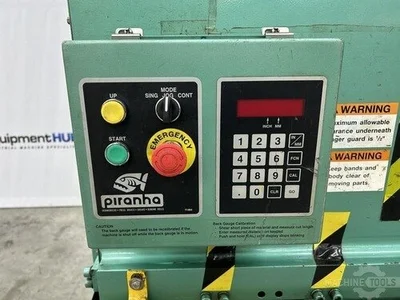

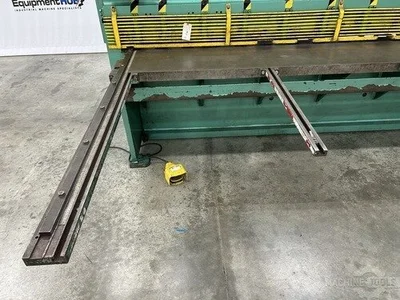

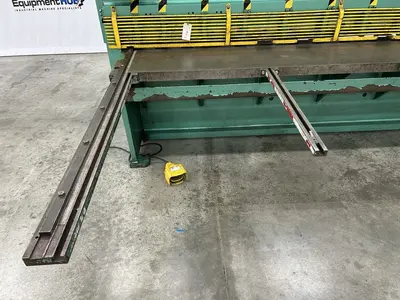

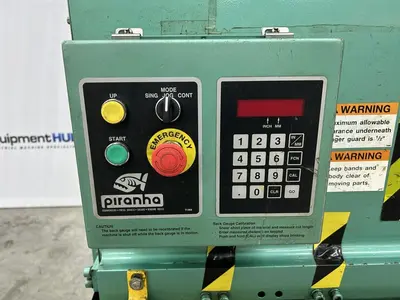

Squaring Arm, (2) Front Arm Supports, Front Operated "Go-To" Digital Back Gauge Controller
Additional Info
The Piranha Shear can be demoed upon request, check out the video on the listing to see it in operation.
