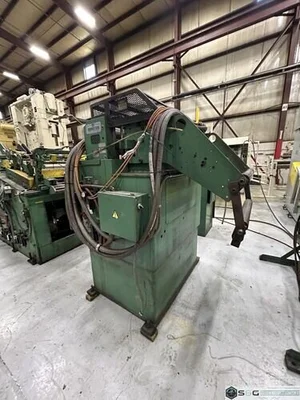

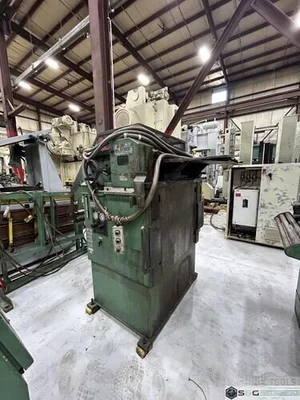

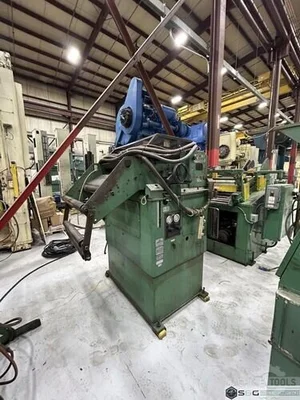

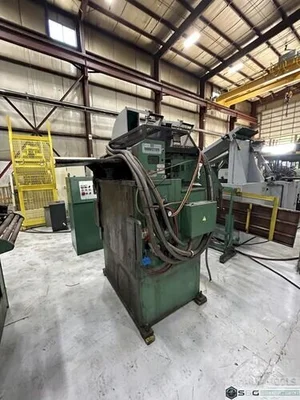

USED MINSTER MEF-526

26 inch Minster Servo Feed Model MEF 526-S For Sale

Coil Width: 26 inches
Coil Thickness: .156 inches

Minster Servo Feed For Sale
Model MEF 5-26S
Cabinet Mounted
sn/ 1850611
Stock Width Capacity: 26"
Stock thickness capacity: .156" x 26" Wide
Stock thickness capacity: .250" x 16" Wide

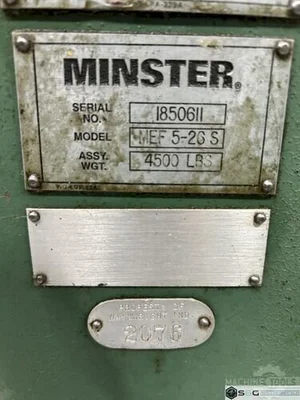

MINSTER Servo Roll Feed Model No.: MEF5-26S, Serial No.: 18-50611
5" diameter full width upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Solenoid controlled pilot release
Stock width edge guides
Air pressure/regulator
Cabinet base mounted w/ air operated adjustable pass line height
AC servo roll feed drive and controls
Job memory, batch counting, on the fly micro adjustment

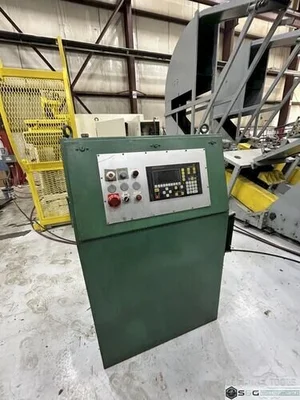

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt


The standard specifications for the Minster MEF-526 electric servo roll feed typically include the following mechanical capacities and features:

Standard Engineering Features

Roll Lift / Pilot Release: Pneumatically actuated upper feed roll for high-speed material piloting, compatible with standard press automation signaling.

Stock Edge Guides: Manual hand-crank adjustable edge guides with hardened rollers for precise stock tracking.

Cascade Entry: Typically paired with entry cascade loop support rollers or basic thread-table integration.
