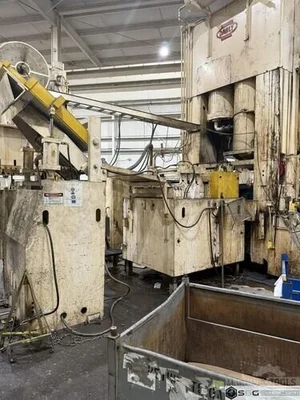

USED COE PRESS EQUIPMENT CPR-15030 / CPRF-630

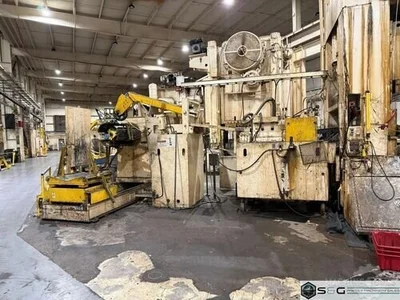

Coe 30" wide x 15,000lbs Space Saver Coil Feed Line

Coil Weight: 15000 pounds
Coil Width: 30 inches
Coil Thickness: .110 inches

15,000 lbs. x 30" Coe Space Saver Servo Coil Feed LineCan be seen under powerModel: CPR-15030 / CPRF-630
Coil Weight Capacity: 15,000lbs
Coil Width Capacity: 30" wide
Stock Thickness Capacity: 30" wide x .030 to 0.110" thick material
12” wide x 0.220” thick material
Coil ID: 19.25" - 24.75"
Coil OD: 72"

Feed Direction: Right to Left


Equipment and Features

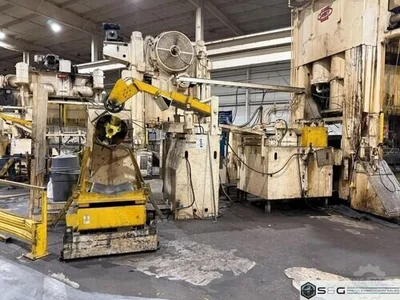

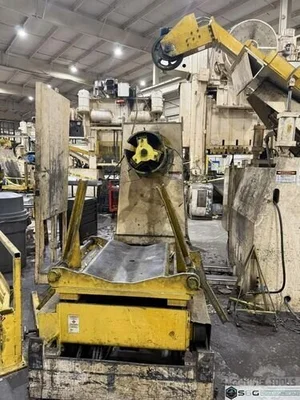

Coe 30" wide x 15,000lbs Coil Reel: CPR-15030
"Bearing Tube" Support of Mandrel
27" Diameter Heavy Duty Backplate
3 Horsepower AC Variable Speed Drive - Digital Reel Control
72" Maximum Coil Outside Diameter
Full Radius Mandrel Pads
Independent Controls for Straightener and Reel
Heavy Duty Welded Steel Construction
Three (3) Pad Mandrel Construction
Electrical Safety Disconnect
Hydraulic Mandrel Expansion Feature
Material Width Scales on Mandrel Pads
One Set of (3) Quick Release Narrow Coil Keepers
Jog Forward and Reverse

Coe PTR Unit with Hold Down Arm Motorized End Wheel
Hold Down Arm (Hydraulically Actuated)
Peeler/Threader/Debender Unit
Motorized End Wheel

Coe 30" wide Feeder-Straightener: CPRF-630
6" Diameter Feed Rolls
Sealed Precision Roller Bearings
Upper and Lower Feed Rolls With #3 Matte Chrome Finish
Desk Type Slant Top Control Enclosure
230/460 Volt AC Three Phase Supply Voltage
Air Pressure Regulator for Exact Feed Roll Pressure
Cluster Gear Driven Upper Feed Roll With Mating Splined Shafts and Gears
Dual Roll Edge Guides with Self Centering & Independent Adjustment
Emergency Stop Push Button
Fused Electrical Safety Disconnect
Heavy Duty Cabinet with Press Mount Brackets and +/- 6" of Height Adjustment
High Performance Maintenance Free AC Brushless Servo Motor
Partial Width Upper and Lower Feed Rolls
Remote Jog PendantPower Supply: 460/3/60
Rigid Machined Tie Bar Construction for Precise Assembly
Single Cycle Pushbutton for Set-up at Jog Speed
Rexroth Controller
