USED PRO-FILL INC GEAR E - LABEL MACHINE (23MM X 15.5MM)

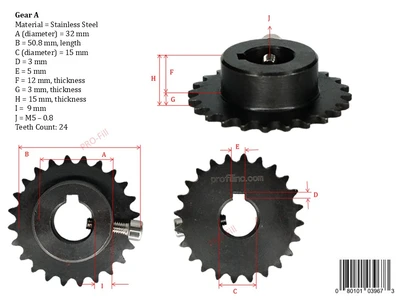

What is for?High quality products. Get better performance for your Labeling Machines. Gear A - Label Machine (32mm x 15mm) #39673Material = Stainless SteelA (diameter) = 32 mmB = 50.8 mm, lengthC (diameter) = 15 mmD = 3 mmE = 5 mmF = 12 mm, thicknessG = 3 mm, thicknessH = 15 mm, thicknessI =  9 mmJ = M5 – 0.8Teeth Count: 24 Gear B - Label Machine (22mm x 15mm) #39772
A (diameter) = 22 mm
B = 33 mm, length
C (diameter) = 15 mm
D = 2 mm
E = 5 mm
F = 14.2 mm, thickness
G = 2.4 mm, thickness
H = 16.8 mm, thickness
I =  3.5 mm
J = M6 – 1.0
Teeth Count: 15

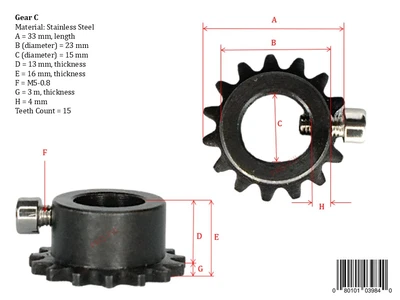

Gear C - Label Machine (23mm x 15mm) #39840
A = 33 mm, length
B (diameter) = 23 mm
C (diameter) = 15 mm
D = 13 mm, thickness
E = 16 mm, thickness
F = M5-0.8
G = 3 m, thickness
H = 4 mm
Teeth Count = 15

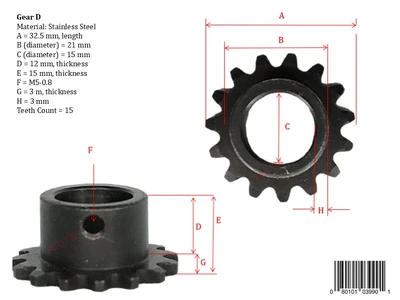

Gear D - Label Machine (21mm x 15mm) #39901
A = 32.5 mm, length
B (diameter) = 21 mm
C (diameter) = 15 mm
D = 12 mm, thickness
E = 15 mm, thickness
F = M5-0.8
G = 3 m, thickness
H = 3 mm
Teeth Count = 15

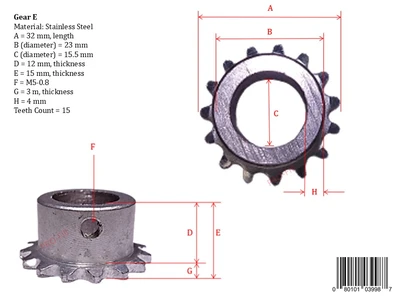

Gear E - Label Machine (23mm x 15.5mm) #39987
A = 32 mm, length
B (diameter) = 23 mm
C (diameter) = 15.5 mm
D = 12 mm, thickness
E = 15 mm, thickness
F = M5-0.8
G = 3 m, thickness
H = 4 mm
Teeth Count = 15

A (diameter) = 22 mm
B = 33 mm, length
C (diameter) = 15 mm
D = 2 mm
E = 5 mm
F = 14.2 mm, thickness
G = 2.4 mm, thickness
H = 16.8 mm, thickness
I =  3.5 mm
J = M6 – 1.0
Teeth Count: 15
A = 33 mm, length
B (diameter) = 23 mm
C (diameter) = 15 mm
D = 13 mm, thickness
E = 16 mm, thickness
F = M5-0.8
G = 3 m, thickness
H = 4 mm
Teeth Count = 15
A = 32.5 mm, length
B (diameter) = 21 mm
C (diameter) = 15 mm
D = 12 mm, thickness
E = 15 mm, thickness
F = M5-0.8
G = 3 m, thickness
H = 3 mm
Teeth Count = 15
A = 32 mm, length
B (diameter) = 23 mm
C (diameter) = 15.5 mm
D = 12 mm, thickness
E = 15 mm, thickness
F = M5-0.8
G = 3 m, thickness
H = 4 mm
Teeth Count = 15
