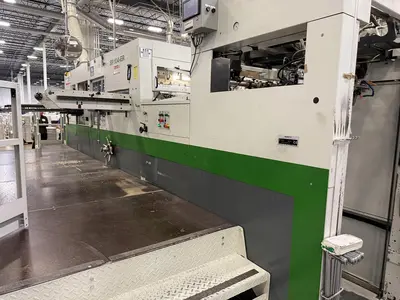

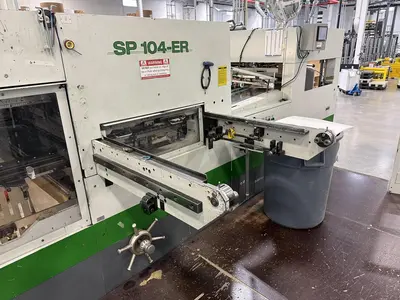

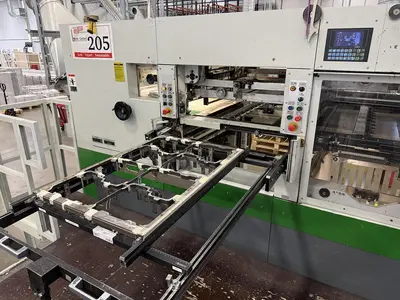

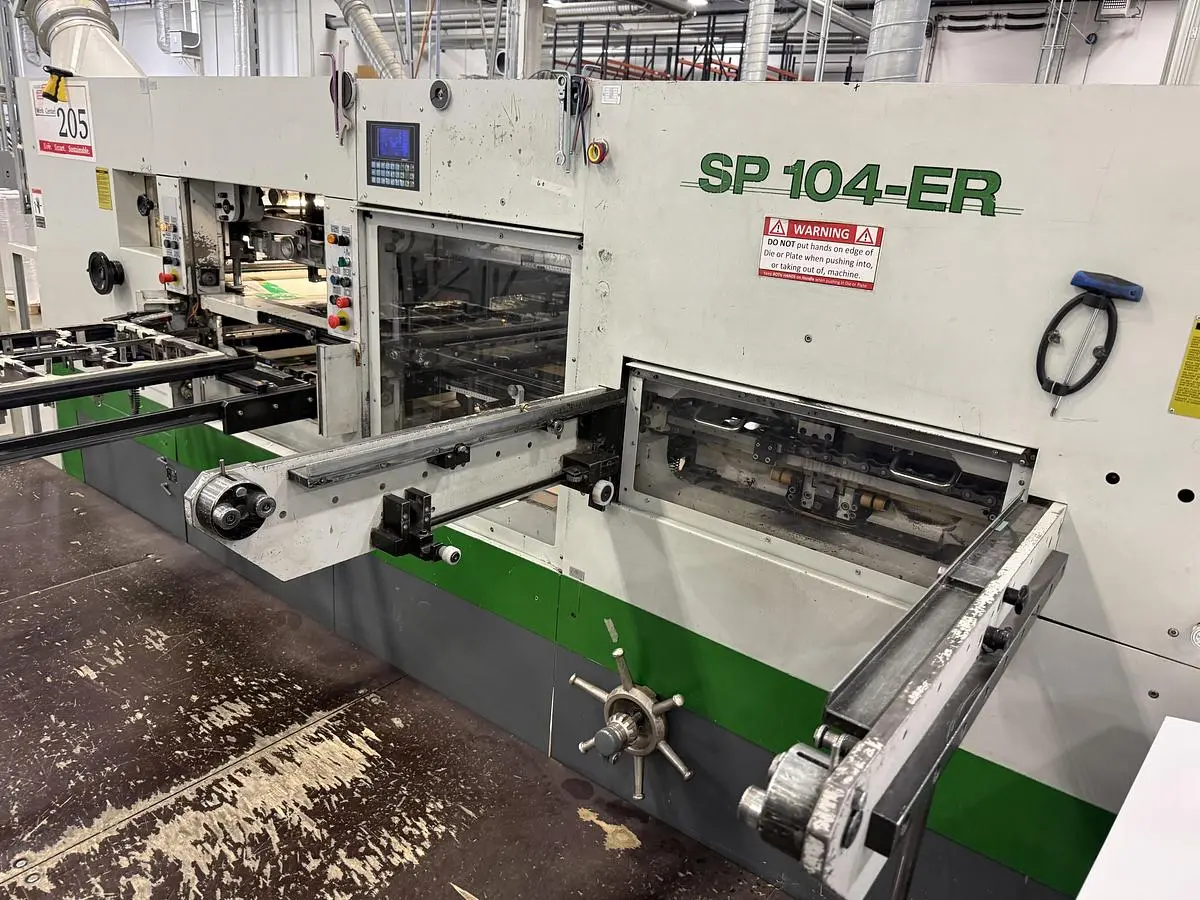

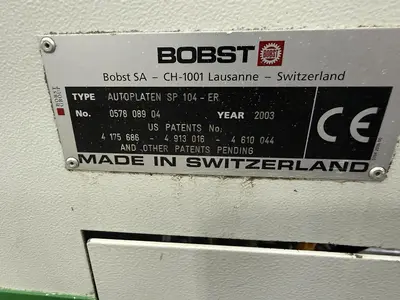

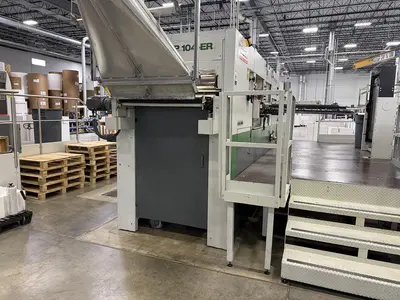

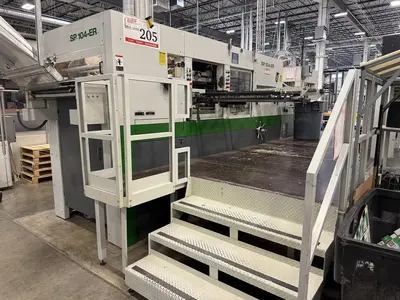

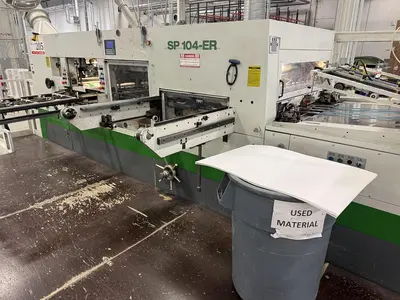

USED 2003 BOBST 104-ER

Non stop feed and delivery
Full sheet delivery
Thin plate option
Quick lock device

Many new parts installed in last 6 months including new pump.

Specifications
Max size: 41" x 29.13" (1040 x 740 mm)
Min size: 15.75" x 13.78" (400 x 350 mm)
Max speed: 8,000 sheets/hour
Max pressure: 250 tons
Solid board: up to 2000 g/m2
Corrugated board: up to 4 mm

MACHINE
Platform with safety barrier
Centerline for quick change job
Electronical device for sheet travel control
Adjustable centering at the stripping station and delivery

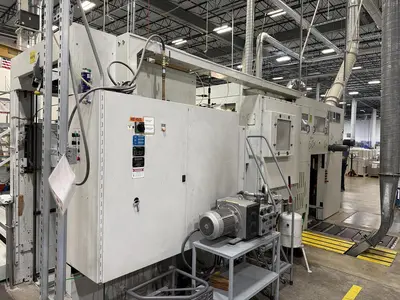

Control cabinet cooling unit
Gripper bars
Bobst electronic machine operating system CUBE (Control Unit Bobst Electronic)
Main motor with frequency converter control

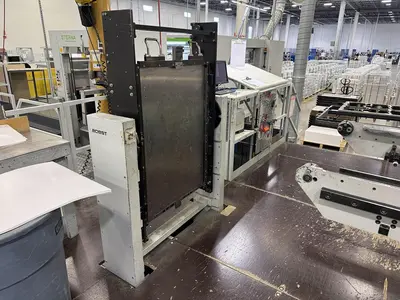

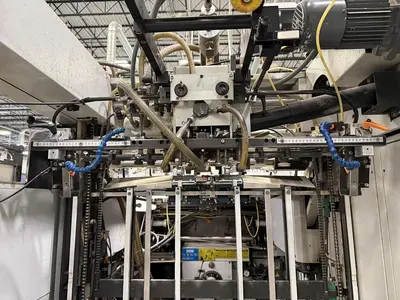

FEEDER
Pile tray with handle allowing manual lateral correction of the pile during production
Photocell for feeder automatic cycle
Pile lifting control by photocells
Rear pile guides (OS an OSS)
Side blowers adjustable with Centerline marks

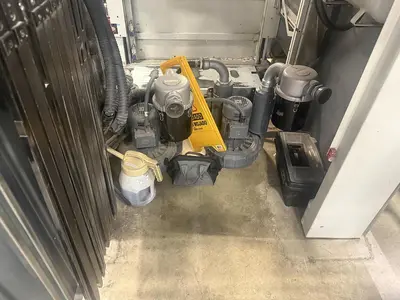

Suction unit
Safety system for lowering the pile tray

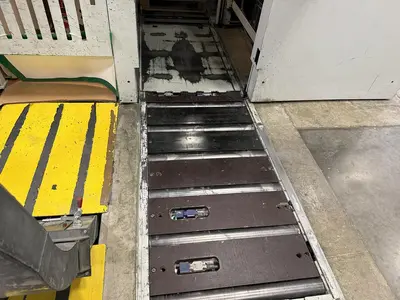

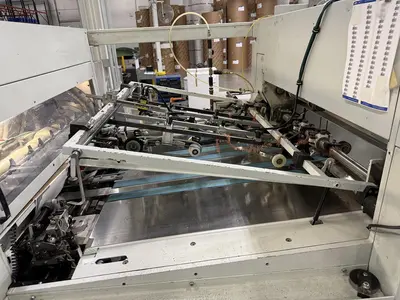

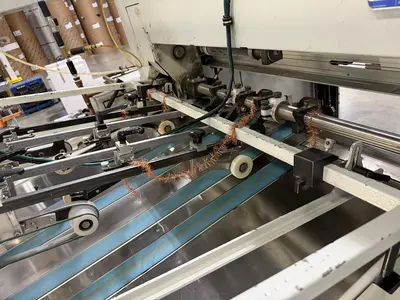

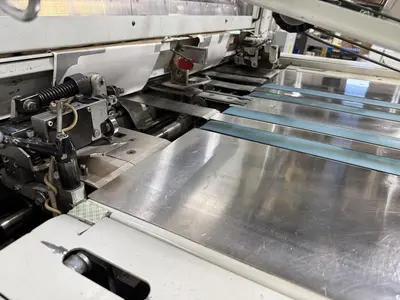

FEED TABLE
Covered with an anti-static stainless steel plate
4 Front lays adjustable in pairs with front register control
Pull guide (OS) adjustable according to Centerline marks with side register control
Double sheet detector
Support plates at entry of platen station
Upper frame with manual lifting device.
Upper transport equipment for paper, paperboard and corrugated
4 transport belts

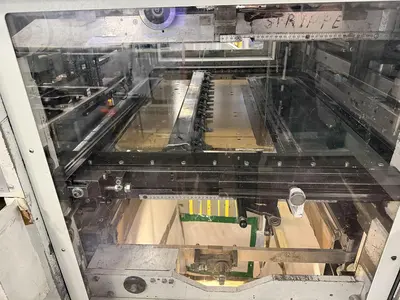

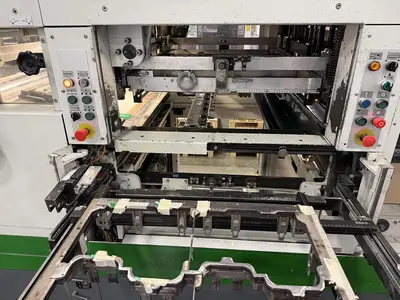

PLATEN
Gripper reopening device
Device of cutting
Centering and closing of cutting tools
Closing for the frame
Motorized cutting force setting
Quick lock system
Cutting plate

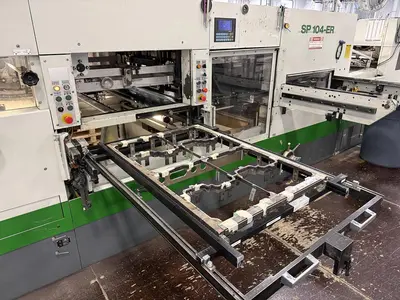

WASTE STRIPPING STATION
Upper tooling for stripping
1 Material for stripping tools
Fixing tools for stripping table
Central pull-out frame
Lower pull out frame
Lower stripping equipment

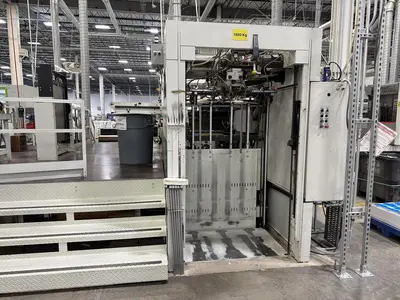

DELIVERY
Device for sheet insert
Opening device
Automatic Non-stop device
Safety pile raising
Waste removal apron
Brushing stop
1 Upper pull out frame
1 upper universal tool
1 fixing material for separating tools
1 Lower pull out frame with fixing materials
1 Lower universal tool
