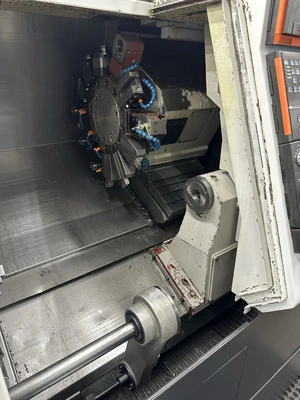

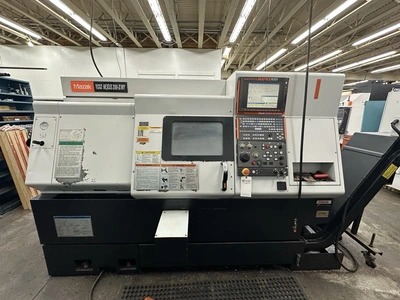

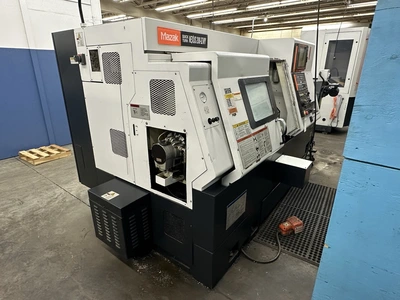

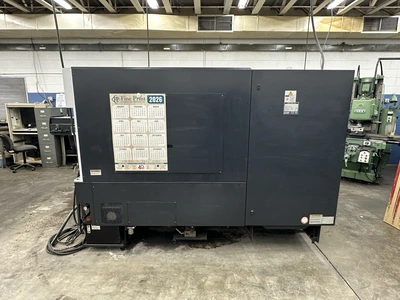

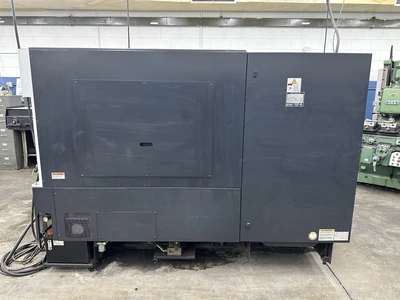

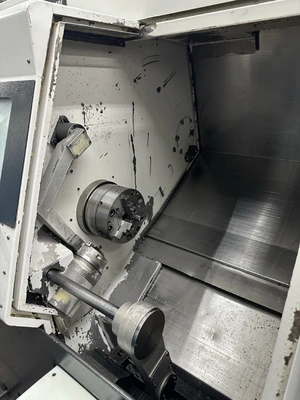

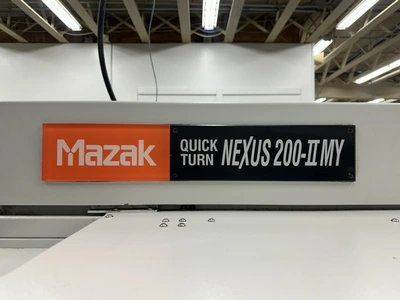

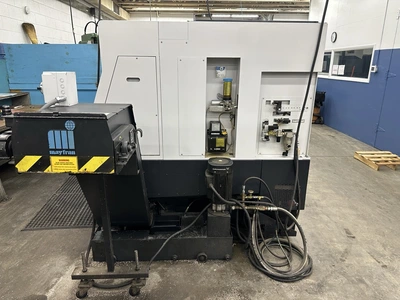

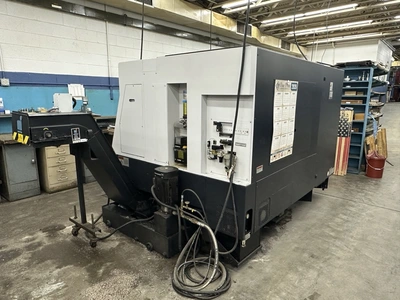

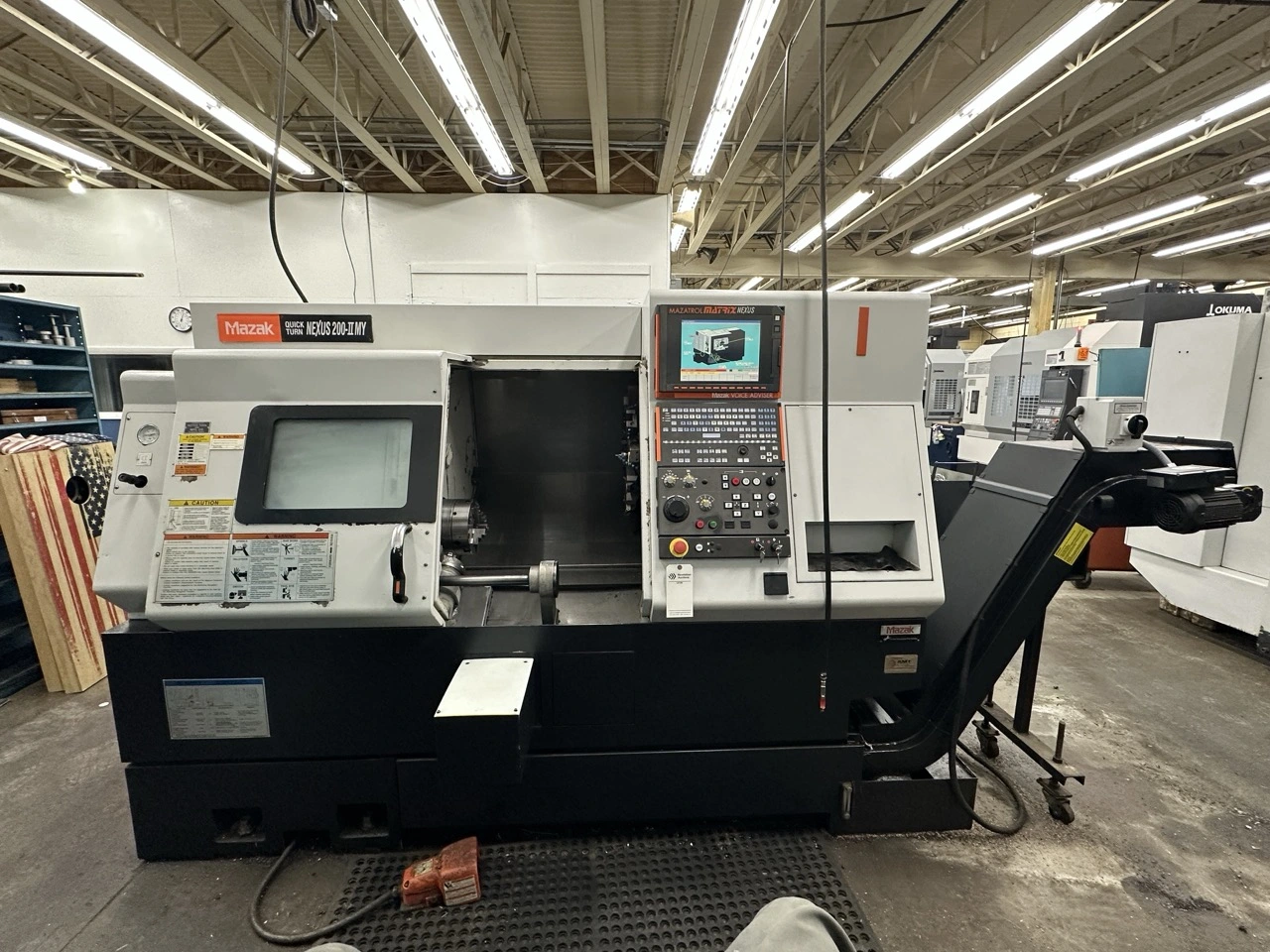

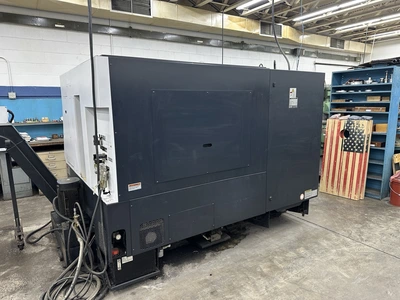

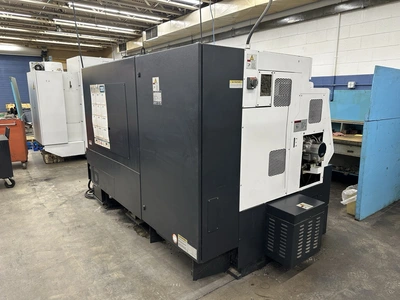

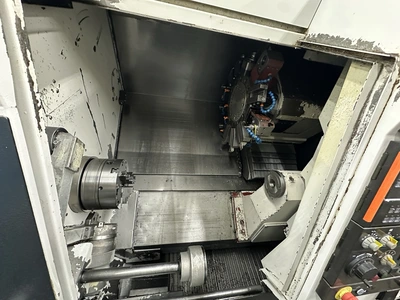

USED 2009 MAZAK QTN 200MY-II

Chuck Size:  8″
Maximum Swing:  675 mm (26.50″)
Standard Machining Diameter:  276 mm (10.87″)
Bar Work Capacity:  65 mm (2.50″)
Distance Between Spindle End and Turret End Face:  135 to 710 mm (5.357 to 28.107″)
Spindle Speed:  35 – 5000 Min⁻¹ (rpm)
Spindle Nose:  A2-6
Bore:  76 mm (3.00″)
Motor Output [Half-Hourly Rating]:  26.0 kw (35 hp)
Maximum Torque:  47.4 kgf·m (343 ft·lbs)
Indexing Time:  0.2/0.6 sec
Milling Spindle Speed:  25 – 4500 Min⁻¹ (rpm)
Milling Motor Output [10-min. Rating]:  5.5 kw (7.5 hp)
Maximum Torque of Milling Spindle:  3.6 kgf·m (26.0 ft·lbs)
Tailstock Center Bore:  MT 5
Travel [Tailstock]:  550 mm (21.75″)
Maximum Thrust:  700 kgf (1544 lbs)
Rapid Traverse (X/Y/Z):  30/21/33 m/min (1181/826/1299 ipm)
Rapid Traverse (C):  555 Min⁻¹ (rpm)
Travel (X):  230 [225 + 5] mm (9 [8.875 + 0.125] in.)
Travel (Y):  100 [50 + 50] mm (4 [2 + 2] in.)
Travel (Z):  575 [570 + 5] mm (22.75 [22.5 + 0.25] in.)
Machine Weight: 12500 lbs

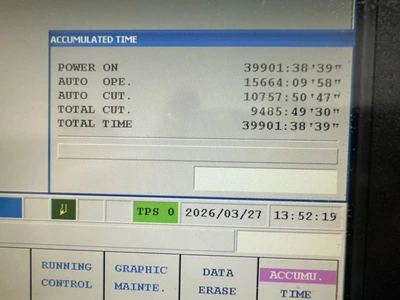

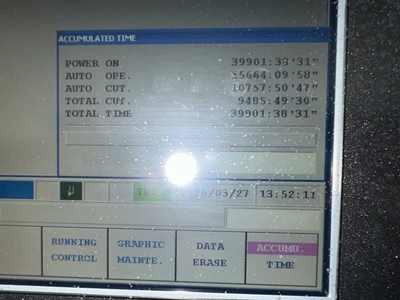

Accumulated Time
Power On:  39901
Auto Ope.:  15664
Auto Cut.:  10757
Total Cut.:  9485
Total Time:  39901
Equipped With:

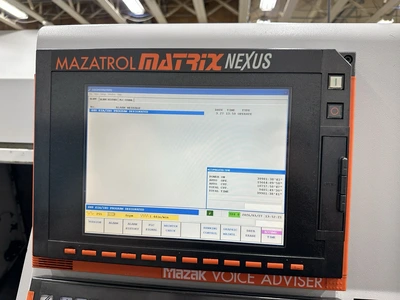

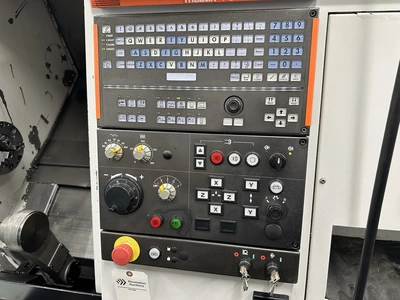

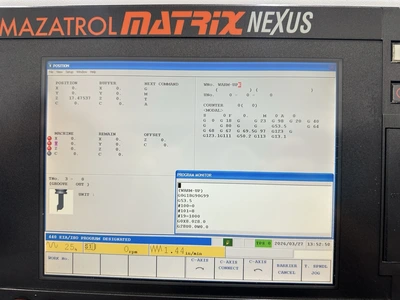

Mazatrol Matrix Nexus CNC Control

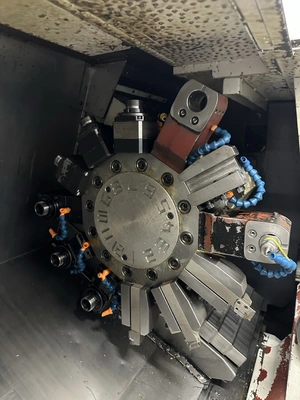

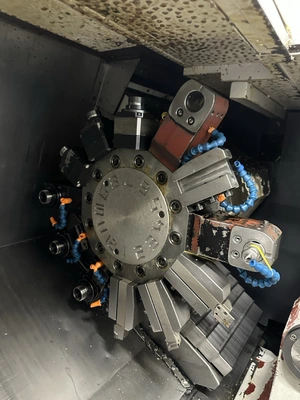

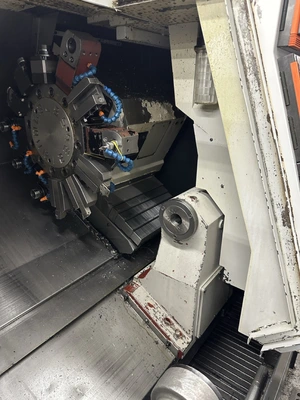

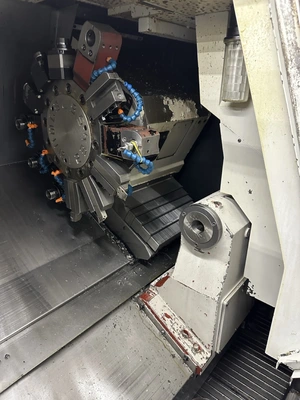

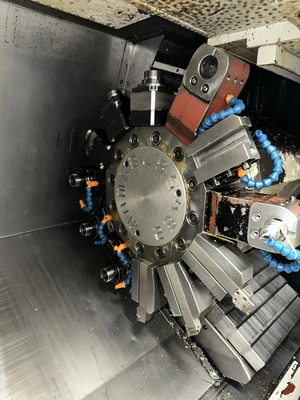

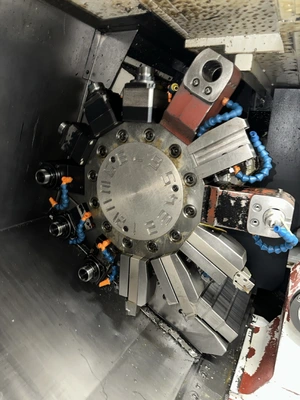

Live Tooling

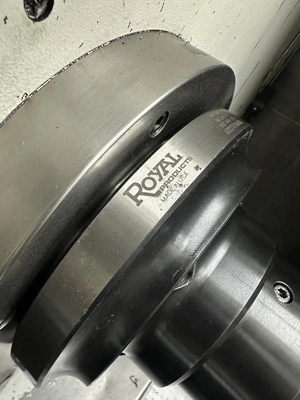

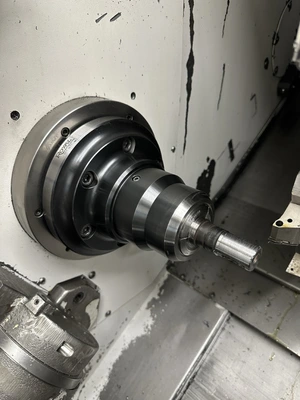

Royal Products CNC Collet Chuck

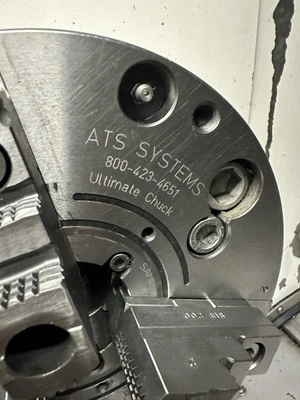

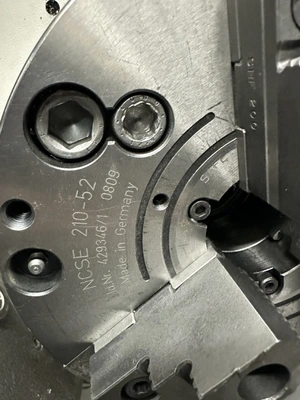

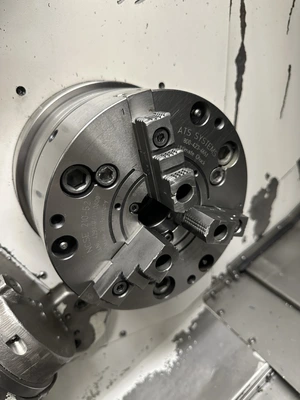

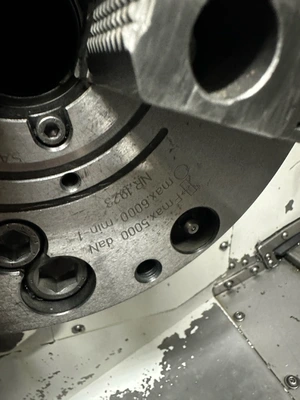

SMW Autoblok NCSE 210-52 Quick-Jaw-Change 3-Jaw Power Chuck

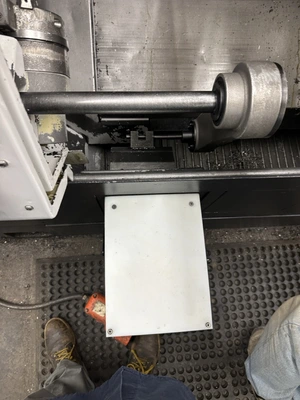

Programmable Tailstock

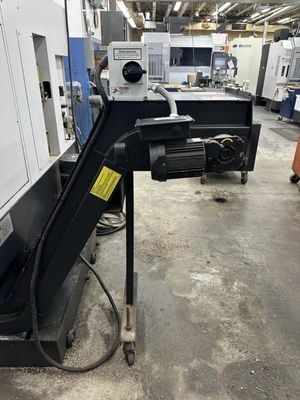

Side-Exit Chip Conveyor

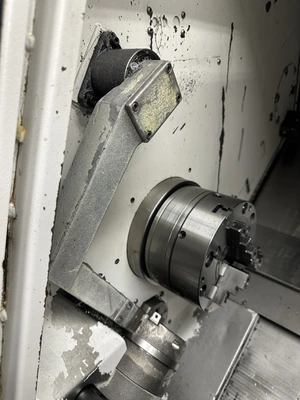

Tool Eye (Automatic Tool Presetter)
Mazak Voice Adviser

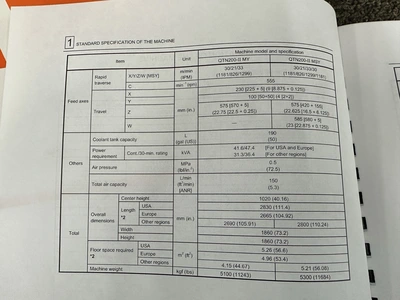

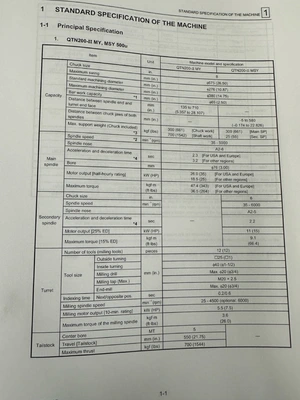

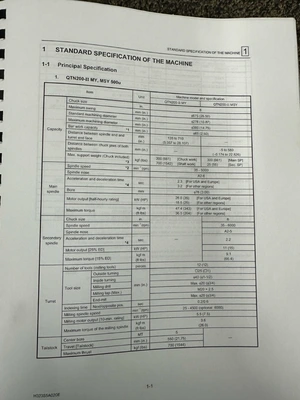

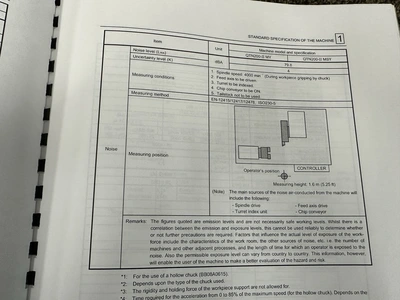

Manuals and Technical Documentation
